TRIPP LITE DIG PWR DIST UNIT MTRD 8 NEMA5-15R 15A 4168694
SKU
4168694
CA$999.96
Only 2 left

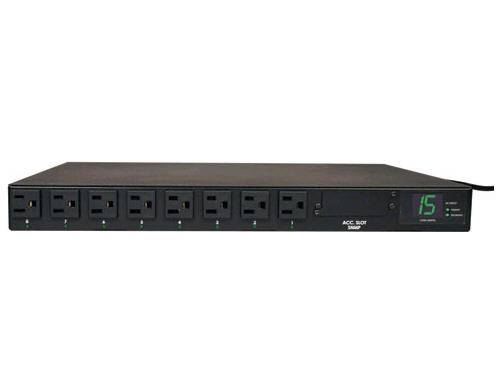

Tripp Lite series 1.4kW Single-Phase Local Metered Automatic Transfer Switch PDU, 2 120V 5-15P 15A Inputs, 8 5-15R Outputs, 1U, TAA
Category: Power Distribution Units
- Primary Information
Product Description: Eaton Tripp Lite Series PDU Metered ATS 120V 15A 5-15R 8 Outlet 2 5-15P Horizontal 1URM - horizontal rackmount - power distribution unit - 1.4 kW - 1800 VA Device Type: Power distribution unit - rack-mountable Rack Size: 1U Weight: 11.02 lbs Input Voltage: AC 120 V Output Voltage: AC 120 V Power Capacity: 1.4 kW / 1800 VA Input Connectors: 2 x power NEMA 5-15 Output connectors: 8 x power NEMA 5-15/20 Color: Black Dimensions (WxDxH): 17.5 in x 14.5 in x 1.7 in Manufacturer Warranty: 2-year warranty - General
Device Type: Power distribution unit - rack-mountable Height (Rack Units): 1U Color: Black - Power Device
Input Voltage: AC 120 V Frequency Provided: 50/60 Hz Frequency Required: 50/60 Hz Input Connectors: 2 x power NEMA 5-15 Power Output Connectors Details: 8 x power NEMA 5-15/20 Output Voltage: AC 120 V 50/60 Hz Max Electric Current: 15 A Power Capacity: 1.4 kW / 1800 VA - Expansion / Connectivity
Interfaces: 1 x management - 9 pin D-Sub (DB-9) Expansion Slots: 1 (total) / 1 (free) x expansion slot - Miscellaneous
Cables Included: Power cable - external - 12 ft ¦ Power cable - integrated - 12 ft Features: Wall mountable, current meter, LED indicators, Automatic Transfer Switch (ATS) Compliant Standards: NOM, RoHS - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 95% - Dimensions & Weight
Width: 17.5 in Depth: 14.5 in Height: 1.7 in Weight: 11.02 lbs - Dimensions & Weight (Shipping)
Shipping Width: 22.5 in Shipping Depth: 23.5 in Shipping Height: 6.3 in Shipping Weight: 15.21 lbs - Special Feature
COO: CHINA - UNSPSC Code
UNSPSC Code: 39121017
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121017 |
| Part# | TRP-PDUMH15AT |
| MFG Part# | PDUMH15AT |
| UPC | 37332126658 |
| Device Type | Power distribution unit - rack-mountable |
| Color | Black |
