TRIPP LITE DISPLAYPORT HDMI OVER CAT6 EXTENDER KIT 6702436
SKU
6702436
CA$509.12

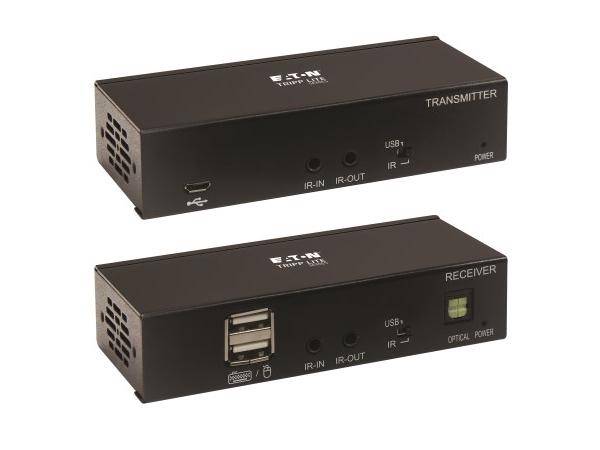

DisplayPort to HDMI over Cat6 Extender Kit with KVM Support, 4K 60Hz, 4:4:4, USB, PoC, HDCP 2.2, up to 230 ft., TAA
Category: Combined AV Devices
- Primary Information
Product Description: Eaton Tripp Lite Series DisplayPort to HDMI over Cat6 Extender Kit with KVM Support, 4K 60Hz, 4:4:4, USB, PoC, HDCP 2.2, up to 230 ft., TAA - video/audio extender - HDMI, DisplayPort - TAA Compliant Device Type: Video/audio extender Form Factor: Wall mountable Data Link Protocol: HDMI, DisplayPort Transmission Medium: CAT 6 Max Transfer Distance: 230 ft Power Over Ethernet (PoE): PoC Power: AC 120/230 V TAA Compliant: Yes Manufacturer Warranty: 1-year warranty Designed For: P/N: B127A-010-H, P580-015-8K6, P580-020-8K6, P580-025-8K6, P580-030-8K6 - General
Device Type: Video/audio extender Form Factor: Wall mountable - Networking
Connectivity Technology: Wired Data Link Protocol: HDMI, DisplayPort Max Resolution: 3840 x 2160 @ 60 Hz Max Transfer Distance: 230 ft Status Indicators: Power, active, connection status Features: 3D support, 4K resolution support, 7.1 channel audio support, power over cable (PoC), Dolby TrueHD support, DTS-HD support, HDR support, zero transition delay, 4:4:4 chroma subsampling support, 36-bit True Color support Compliant Standards: HDCP 2.2 - Expansion / Connectivity
Interfaces: 1 x audio / video (transmitter) - 19 pin HDMI Type A female ¦ 1 x network (transmitter) - RJ-45 female ¦ 1 x DisplayPort (transmitter) female ¦ 1 x micro-USB (transmitter) female ¦ 2 x line input/output (transmitter) - phone 3.5 mm female ¦ 2 x network (receiver) - RJ-45 female ¦ 2 x line input/output (receiver) - phone 3.5 mm female ¦ 1 x audio (receiver) - TOSLINK female ¦ 1 x audio / video (receiver) - 19 pin HDMI Type A female ¦ 2 x USB - Type A female - Miscellaneous
Mounting Kit: Included Compliant Standards: UL, TUV, cUL, GS, CCC, FCC, RoHS, REACH, CEC, EDID compatible TAA Compliant: Yes - Power
Power Over Ethernet (PoE): PoC Power Device: External power adapter Installed Qty: 2 Voltage Required: AC 120/230 V (50/60 Hz) - Dimensions & Weight
Dimensions (WxDxH) / Weight Details: Transmitter: 4.5 in x 2.5 in x 1.1 in / 16 oz ¦ Receiver: 4.5 in x 2.5 in x 1.1 in / 16 oz - Manufacturer Warranty
Service & Support: Limited warranty - 1 year - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 85% (non-condensing) - Compatibility Information
Designed For: P/N: B127A-010-H, P580-015-8K6, P580-020-8K6, P580-025-8K6, P580-030-8K6 - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 45111800
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 45111800 |
| Part# | TRP-B127A-1A1-BDBH |
| MFG Part# | B127A-1A1-BDBH |
| UPC | 37332258656 |
| Max Transfer Distance | 230 ft |
| Max Resolution | 3840 x 2160 @ 60 Hz |
| Device Type | Video/audio extender |
| Connectivity Technology | Wired |
| Form Factor | Wall mountable |
| Data Link Protocol | DisplayPort, HDMI |
