TRIPP LITE EXTENDER KIT DISPLAYPORT OVERFIBER MULTI 6360644
SKU
6360644
CA$2,222.85
DisplayPort over Fiber Extender Kit - 4K 30 Hz, RS-232, IR, USB, Duplex Multimode LC, 985 ft., TAA - Local HDMI port allows displays with different resolutions without affecting 4K signal - Plug-and-play operation with no software required for easy, immediate installation
Category: Repeaters & Transceivers
- Primary Information

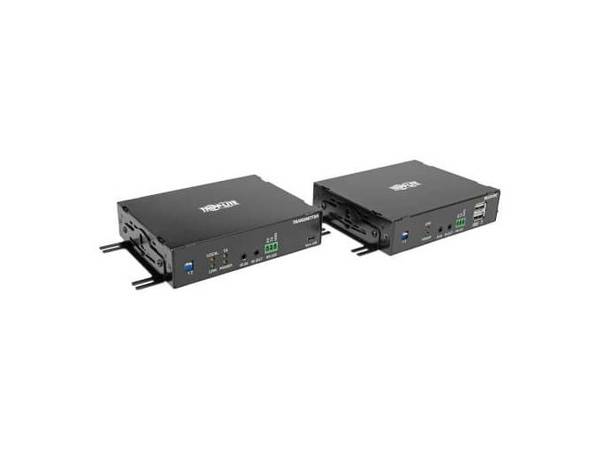

Product Description: Tripp Lite DisplayPort over Fiber Extender Kit - 4K @ 30 Hz, RS-232, IR, USB, Duplex Multimode LC, 985 ft., TAA - Kit - transmitter and receiver - video/audio/infrared/serial extender - DisplayPort - TAA Compliant Device Type: Video/audio/infrared/serial extender Form Factor: External Optical Wave Length: 850 nm Data Link Protocol: DisplayPort Transmission Medium: Fiber optic Max Transfer Distance: 984 ft Power: AC 120/230 V Pricing Type: Government GSA TAA Compliant: Yes Manufacturer Warranty: 1-year warranty - General
Device Type: Video/audio/infrared/serial extender Form Factor: External Color: Black - Networking
Connectivity Technology: Wired Data Link Protocol: DisplayPort Optical Wave Length: 850 nm Max Resolution: 3840 x 2160 @ 30 Hz Max Transfer Distance: 984 ft Status Indicators: Power, link/activity Features: Built-in DIP switch, metal housing, LPCM 7.1 support, EDID Management, DTS support, AC3 support, HDR support - Expansion / Connectivity
Interfaces: 1 x DisplayPort (local unit) female ¦ 1 x HDMI (local unit) - Type A female ¦ 2 x IR (local unit) - mini jack female ¦ 1 x RS-232 (local unit) - terminal block ¦ 1 x micro-USB (local unit) - Type B female ¦ 1 x network (local unit) - LC multi-mode female x 2 ¦ 1 x DisplayPort (remote unit) female ¦ 2 x IR (remote unit) - mini jack female ¦ 1 x RS-232 (remote unit) - terminal block ¦ 2 x USB keyboard / USB mouse (remote unit) - Type A female ¦ 1 x network (remote unit) - LC multi-mode female x 2 - Miscellaneous
Included Accessories: 8 power plug adapters Mounting Kit: Included Compliant Standards: Plug and Play, UL, TUV, cUL, GS, CCC, FCC, RoHS, REACH, EDID compatible, DisplayPort 1.2a, HDCP 2.2 Pricing Type: Government GSA TAA Compliant: Yes - Power
Power Device: External power adapter Voltage Required: AC 120/230 V (50/60 Hz) - Dimensions & Weight
Dimensions (WxDxH) / Weight Details: Transmitter: 4.5 in x 2.5 in x 1.1 in / 8 oz ¦ Receiver: 4.5 in x 2.5 in x 1.1 in / 8 oz - Manufacturer Warranty
Service & Support: Limited warranty - 1 year - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 85% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222608
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 43222608 |
| Part# | TRP-B127F-1A1-MM-DD |
| MFG Part# | B127F-1A1-MM-DD |
| UPC | 37332239167 |
| Max Transfer Distance | 984 ft |
| Max Resolution | 3840 x 2160 @ 30 Hz |
| Device Type | Video/audio/infrared/serial extender |
| Connectivity Technology | Wired |
| Form Factor | External |
| Data Link Protocol | DisplayPort |
| Color | Black |
