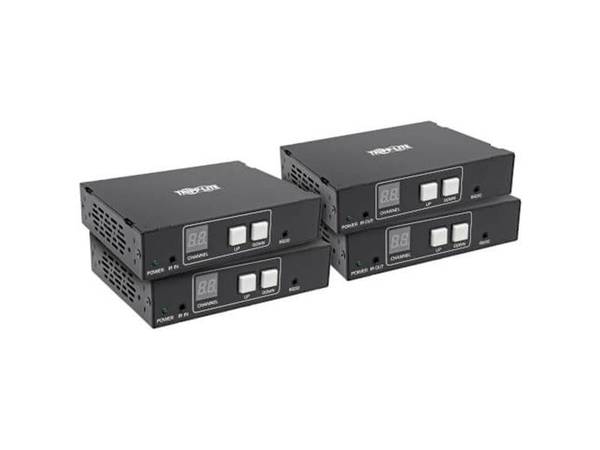

TRIPP LITE EXTENDER KIT DVI HDMI OVER CAT5 6 MATRIX 6360649
SKU
6360649
CA$1,511.52
DVI/HDMI over Cat5/6 Matrix/Extender Kit - 1080p @ 60 Hz, RS-232, IR Control, 656 ft. (200 m), TAA
Category: Repeaters & Transceivers
- Primary Information
Product Description: Eaton Tripp Lite Series - 2x2 Matrix/Extender Kit - video/audio/infrared/serial extender - HDMI - TAA Compliant Device Type: Video/audio/infrared/serial extender Form Factor: External Localization: Australia, United Kingdom, North America, Europe Data Link Protocol: HDMI Transmission Medium: CAT 5/5e/6 Max Transfer Distance: 656 ft Power: AC 100-240 V TAA Compliant: Yes Manufacturer Warranty: 1-year warranty - General
Device Type: Video/audio/infrared/serial extender Form Factor: External Color: Black Localization: Australia, United Kingdom, North America, Europe - Networking
Connectivity Technology: Wired Data Link Protocol: HDMI Max Resolution: 1920 x 1080 / 1080p @ 60 Hz Max Transfer Distance: 656 ft Status Indicators: Power, link/activity, channel Features: 24-bit True Color support, 3D support, metal housing, wall mountable, CEC support, HDCP compliant - Expansion / Connectivity
Interfaces: 2 x HDMI (transmitter input) - 19 pin HDMI Type A female ¦ 2 x HDMI (transmitter output) - 19 pin HDMI Type A female ¦ 2 x network (transmitter output) - RJ-45 female ¦ 2 x RS-232 (transmitter) - mini jack female ¦ 2 x IR (transmitter output) - mini jack female ¦ 2 x HDMI (receiver output) - 19 pin HDMI Type A female ¦ 2 x network (receiver input) - RJ-45 female ¦ 2 x RS-232 (receiver) - mini jack female ¦ 2 x IR (receiver input) - mini jack female - Miscellaneous
Included Accessories: 16 power plug adapters Cables Included: 2 x Infrared input ¦ 2 x Infrared output ¦ 4 x HDMI-DVI adapter ¦ 4 x DB-9 to 3.5 mm serial adapter cable Mounting Kit: Included Compliant Standards: RoHS, EDID compatible, HDCP 1.4, BSMI, CB, CCC, cUL, FCC, GS, PSE Mark, RCM, TUV, UL, FCC (USA), REACH, Plug and Play TAA Compliant: Yes - Power
Power Device: External power adapter Installed Qty: 4 Voltage Required: AC 100-240 V (50/60 Hz) - Dimensions & Weight
Dimensions (WxDxH) / Weight Details: Receiver: 5 in x 3.9 in x 1.2 in ¦ Transmitter: 5 in x 3.9 in x 1.2 in - Dimensions & Weight (Shipping)
Shipping Width: 13.5 in Shipping Depth: 10.8 in Shipping Height: 4.7 in Shipping Weight: 7.89 lbs - Manufacturer Warranty
Service & Support: Limited warranty - 1 year - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 85% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222608
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 43222608 |
| Part# | TRP-B160-202-HDSI |
| MFG Part# | B160-202-HDSI |
| UPC | 37332236043 |
| Max Transfer Distance | 656 ft |
| Max Resolution | 1920 x 1080 / 1080p @ 60 Hz |
| Device Type | Video/audio/infrared/serial extender |
| Connectivity Technology | Wired |
| Form Factor | External |
| Data Link Protocol | HDMI |
| Color | Black |
