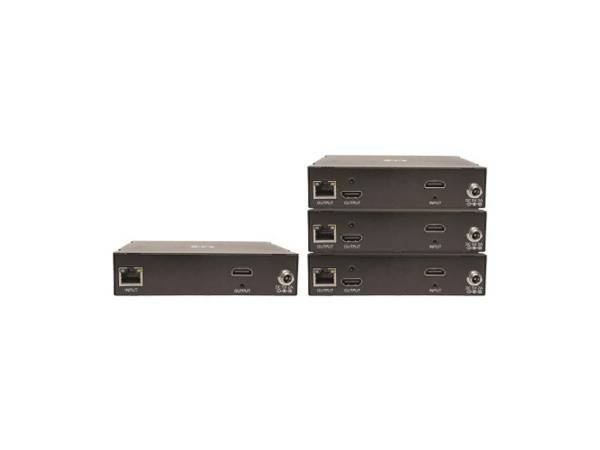

TRIPP LITE EXTENDER KIT DVI HDMI OVER CAT5 6 SWITCH 6360648
SKU
6360648
CA$1,692.00
Tripp Lite series 3 Port HDMI over Cat5/6 Switch/Extender Kit, 1080p 60 Hz, Serial and IR Control, 656 ft. (200 m), TAA
Category: Combined AV Devices
- Primary Information
Product Description: Eaton Tripp Lite Series DVI/HDMI over Cat5/6 Switch/Extender Kit - 1080p @ 60 Hz, RS-232, IR Control, 656 ft. (200 m), TAA - 3 transmitters + receiver - video/audio/infrared/serial extender - HDMI - TAA Compliant Device Type: Video/audio/infrared/serial extender Form Factor: External Localization: Australia, North America, United Kingdom, Europe Data Link Protocol: HDMI Transmission Medium: CAT 5/6 Max Transfer Distance: 656 ft Power: AC 100 - 240 V TAA Compliant: Yes Manufacturer Warranty: 1-year warranty Designed For: P/N: B160-100-CSI, B160-100-DPSI, B160-100-HDSI, B160-100-VSI, B160-200-HSI, NG5, NSS-G16D2, NSS-G24D2 - General
Device Type: Video/audio/infrared/serial extender Form Factor: External Color: Black Localization: Australia, North America, United Kingdom, Europe - Networking
Connectivity Technology: Wired Data Link Protocol: HDMI Max Resolution: 1920 x 1080 / 1080p @ 60 Hz Max Transfer Distance: 656 ft Status Indicators: Power, link/activity Features: 3D support, EDID Management, 24-bit True Color support - Expansion / Connectivity
Interfaces: 2 x HDMI (local unit) - 19 pin HDMI Type A female ¦ 1 x network (local unit) - RJ-45 female ¦ 1 x IR (local unit) - mini jack female ¦ 1 x RS-232 (local unit) - mini jack female ¦ 1 x HDMI (remote unit) - 19 pin HDMI Type A female ¦ 1 x network (remote unit) - RJ-45 female ¦ 1 x IR (remote unit) - mini jack female ¦ 1 x RS-232 (remote unit) - mini jack female - Miscellaneous
Included Accessories: 16 power plug adapters Cables Included: 1 x Infrared input ¦ 3 x Infrared output ¦ 4 x HDMI-DVI adapter ¦ 4 x serial cable Mounting Kit: Included Compliant Standards: Plug and Play, UL, FCC, RoHS, REACH, GSA TAA Compliant: Yes - Power
Power Device: External power adapter Voltage Required: AC 100 - 240 V (50/60 Hz) - Dimensions & Weight
Dimensions (WxDxH) / Weight Details: Receiver: 3.9 in x 5 in x 1.2 in / 3.3 lbs ¦ Transmitter: 3.9 in x 5 in x 1.2 in / 3.3 lbs - Dimensions & Weight (Shipping)
Shipping Width: 13.4 in Shipping Depth: 10.9 in Shipping Height: 4.9 in Shipping Weight: 9.1 lbs - Manufacturer Warranty
Service & Support: Limited warranty - 1 year - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 85% (non-condensing) - Compatibility Information
Designed For: P/N: B160-100-CSI, B160-100-DPSI, B160-100-HDSI, B160-100-VSI, B160-200-HSI, NG5, NSS-G16D2, NSS-G24D2 - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 45111800
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 45111800 |
| Part# | TRP-B160-103-HDSI |
| MFG Part# | B160-103-HDSI |
| UPC | 37332236012 |
| Max Transfer Distance | 656 ft |
| Max Resolution | 1920 x 1080 / 1080p @ 60 Hz |
| Device Type | Video/audio/infrared/serial extender |
| Connectivity Technology | Wired |
| Form Factor | External |
| Data Link Protocol | HDMI |
| Color | Black |
