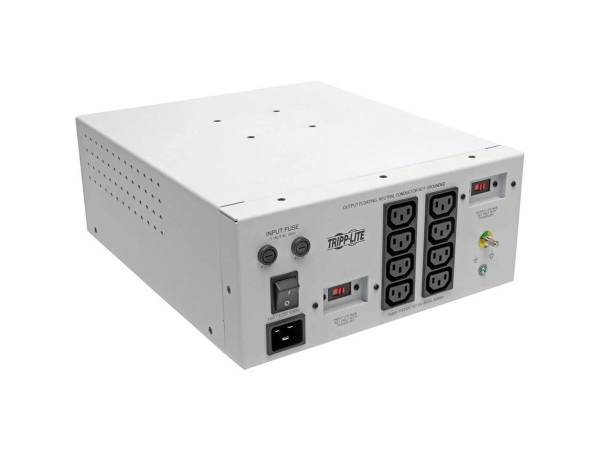

TRIPP LITE ISOLATOR 1800W MEDICAL-GRADE TRANSFORMER 6037341
SKU
6037341
CA$3,084.32
Only 2 left
Isolator Series Dual-Voltage 115/230V 1800W 60601-1 Medical-Grade Isolation Transformer, C20 Inlet, 8 C13 Outlets
Category: Others Devices
- Primary Information
Product Description: Tripp Lite Isolator Series Dual-Voltage 115/230V 1800W 60601-1 Medical-Grade Isolation Transformer, C20 Inlet, 8 C13 Outlets - transformer - 1800 Watt - 1800 VA Device Type: Transformer - external Weight: 51.15 lbs Input Voltage: AC 115/230 V Output Voltage: AC 115/230 V Power Capacity: 1800 Watt / 1800 VA Input Connectors: 1 x power IEC 60320 C20 Output connectors: 8 x power IEC 60320 C13 Included Accessories: Fuse (115 V operation), fuse (230 V operation) Color: White Dimensions (WxDxH): 11.8 in x 13.8 in x 5.5 in Manufacturer Warranty: 2-year warranty - General
Device Type: Transformer - external Color: White - Power Device
Input Voltage: AC 115/230 V Input Voltage Range: AC 100 - 125 / 200 - 250 V Frequency Provided: 50/60 Hz Frequency Required: 50/60 Hz Input Connectors: 1 x power IEC 60320 C20 Power Output Connectors Details: 8 x power IEC 60320 C13 Output Voltage: AC 115/230 V 50/60 Hz Power Capacity: 1800 Watt / 1800 VA Surge Suppression: Yes Surge Energy Rating: 240 Joules EMI/RFI Noise Filtration: 65 dB Circuit Protection: Fuse Total Harmonic Distortion (THD): 1 % - Miscellaneous
Included Accessories: Fuse (115 V operation), fuse (230 V operation) Features: Metal cabinet, convection cooling, output voltage adjustment, overload protection, overheat protection, noise filtering, input voltage adjustment, overcurrent protection Compliant Standards: ANSI/AAMI ES60601-1:2005 + A2 + A1, CAN/CSA C22.2 No. 60601-1:14, IEC 60601-1:2005 Third Edition, NOM, WEEE, RoHS - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 5 - 95% (non-condensing) - Dimensions & Weight
Width: 11.8 in Depth: 13.8 in Height: 5.5 in Weight: 51.15 lbs - Dimensions & Weight (Shipping)
Shipping Width: 17.5 in Shipping Depth: 19.7 in Shipping Height: 11 in - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121000
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121000 |
| Part# | TRP-IS1800HGDV |
| MFG Part# | IS1800HGDV |
| UPC | 37332200037 |
| Device Type | Transformer - external |
| Surge Suppression | Yes |
| Color | White |
| Circuit Protection | Fuse |
