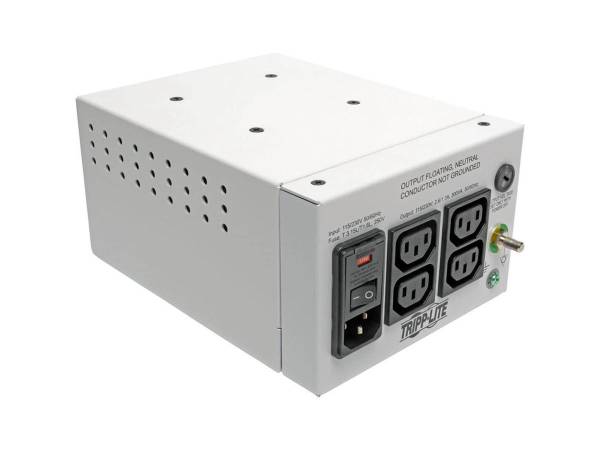

TRIPP LITE ISOLATOR 300W MEDICAL-GRADE TRANSFORMER 6037342
SKU
6037342
CA$1,610.24
Only 2 left
Isolator Series Dual-Voltage 115/230V 300W 60601-1 Medical-Grade Isolation Transformer, C14 Inlet, 4 C13 Outlets
Category: Others Devices
- Primary Information
Product Description: Tripp Lite Isolator Series Dual-Voltage 115/230V 300W 60601-1 Medical-Grade Isolation Transformer, C14 Inlet, 4 C13 Outlets - transformer - 300 Watt - 300 VA Device Type: Transformer - external Weight: 12.35 lbs Input Voltage: AC 115/230 V Output Voltage: AC 115/230 V Power Capacity: 300 Watt / 300 VA Input Connectors: 1 x power IEC 60320 C14 Output connectors: 4 x power IEC 60320 C13 Included Accessories: Fuse (115 V operation), fuse (230 V operation) Color: White Dimensions (WxDxH): 5.9 in x 7.9 in x 4.3 in Manufacturer Warranty: 2-year warranty - General
Device Type: Transformer - external Color: White - Power Device
Input Voltage: AC 115/230 V Input Voltage Range: AC 100 - 125 / 200 - 250 V Frequency Provided: 50/60 Hz Frequency Required: 50/60 Hz Input Connectors: 1 x power IEC 60320 C14 Power Output Connectors Details: 4 x power IEC 60320 C13 Output Voltage: AC 115/230 V 50/60 Hz Power Capacity: 300 Watt / 300 VA Surge Suppression: Yes Surge Energy Rating: 240 Joules EMI/RFI Noise Filtration: 65 dB Circuit Protection: Fuse Total Harmonic Distortion (THD): 1 % - Miscellaneous
Included Accessories: Fuse (115 V operation), fuse (230 V operation) Features: Metal cabinet, convection cooling, output voltage adjustment, overload protection, overheat protection, noise filtering, input voltage adjustment, overcurrent protection Compliant Standards: ANSI/AAMI ES60601-1:2005 + A2 + A1, CAN/CSA C22.2 No. 60601-1:14, IEC 60601-1:2005 Third Edition, NOM, WEEE, RoHS - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 5 - 95% (non-condensing) - Dimensions & Weight
Width: 5.9 in Depth: 7.9 in Height: 4.3 in Weight: 12.35 lbs - Dimensions & Weight (Shipping)
Shipping Width: 9.8 in Shipping Depth: 12.8 in Shipping Height: 8.3 in - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121000
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121000 |
| Part# | TRP-IS300HGDV |
| MFG Part# | IS300HGDV |
| UPC | 37332199980 |
| Device Type | Transformer - external |
| Surge Suppression | Yes |
| Color | White |
| Circuit Protection | Fuse |
