TRIPP LITE PDU 220-240V 13A SINGLE-PHASE HOT-SWAP 6736316
SKU
6736316
CA$306.71

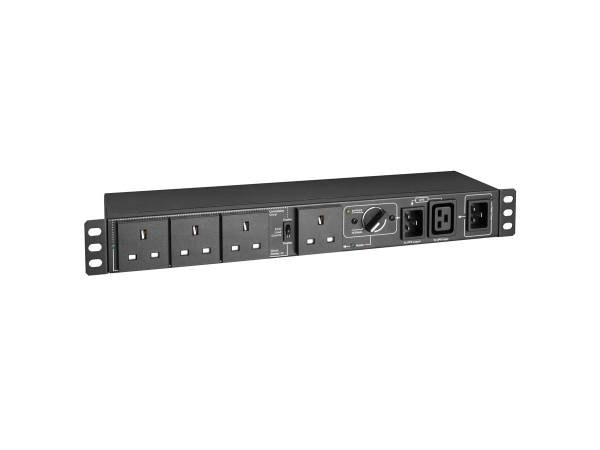

220-240V 13A Single-Phase Hot-Swap PDU with Manual Bypass - 4 BS1363 Outlets, C20 & BS1363 Inputs, Rack/Wall
Category: Power Distribution Units
- Primary Information
Product Description: Eaton Tripp Lite Series 230V 13A Single-Phase Hot-Swap PDU with Manual Bypass - 4 BS1363 Outlets, C20 & BS1363 Inputs, Rack/Wall - power distribution unit - 3.1 kW Device Type: Power distribution unit - rack-mountable Rack Size: 2U Weight: 5.2 lbs Input Wiring: 1-phase Input Voltage: AC 220/230/240 V Output Voltage: AC 220/230/240 V Power Capacity: 3.1 kW Input Connectors: 3 x 2 x power IEC 60320 C20, power BS 1363 Output connectors: 4 x power BS 1363A Dimensions (WxDxH): 17.2 in x 3.9 in x 2.2 in Manufacturer Warranty: 2-year warranty - General
Device Type: Power distribution unit - rack-mountable Height (Rack Units): 2U - Power Device
Input Voltage: AC 220/230/240 V Frequency Provided: 50/60 Hz Input Wiring: 1-phase Frequency Required: 50/60 Hz Input Connectors: 3 x 2 x power IEC 60320 C20, power BS 1363 Power Output Connectors Details: 4 x power BS 1363A Output Voltage: AC 220/230/240 V 50/60 Hz Max Electric Current: 16 A Power Capacity: 3.1 kW - Miscellaneous
Cables Included: 2 x power cable (C19-C20) - external - 4.6 ft ¦ Power cable (C19-BS1363) - external - 6 ft Rack Mounting Kit: Included Features: Horizontal orientation, wall mountable, LED indicators, built-in bypass switch Compliant Standards: CAN/CSA-C22.2 No. 62368-1, CAN/CSA-C22.2 No. 62368-1-14, FCC, FCC CFR47 Part 15 B, ICES, ICES-003:2016, Mexico NOM, TUV Rheinland, UL 62368-1, UL 62368-1-2014 Second Edition - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Humidity Range Operating: 90% (non-condensing) - Dimensions & Weight
Width: 17.2 in Depth: 3.9 in Height: 2.2 in Weight: 5.2 lbs - Dimensions & Weight (Shipping)
Shipping Width: 21.5 in Shipping Depth: 8.1 in Shipping Height: 5.1 in Shipping Weight: 7.01 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121017
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121017 |
| Part# | TRP-PDUBHV20B |
| MFG Part# | PDUBHV20B |
| UPC | 37332253118 |
| Device Type | Power distribution unit - rack-mountable |
