TRIPP LITE PDU 3-PH SWITCHED 208/240V 24 C13 6 C19 6170566
SKU
6170566
CA$3,423.69

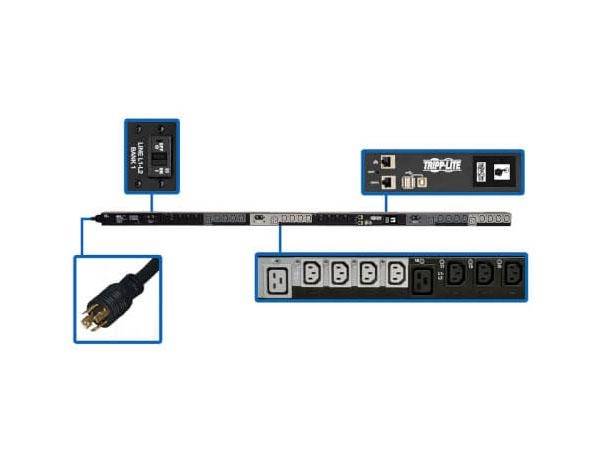

10kW 3-Phase PDU, Vertical, Switched, 0U, 24 IEC C13, 6 IEC C19 to L21-30P - 6 ft. Cord, LX Platform, TAA
Category: Power Distribution Units
- Primary Information
Product Description: Tripp Lite 10kW 3-Phase PDU, Vertical, Switched, 0U, 24 IEC C13, 6 IEC C19 to L21-30P - 6 ft. Cord, LX Platform, TAA - power distribution unit - 10 kW - TAA Compliant Device Type: Power distribution unit - rack-mountable Cord Length: 6 ft Rack Size: 0U Weight: 16.8 lbs Input Wiring: 3-phase Input Voltage: AC 208/240 V Output Voltage: AC 208/240 V Power Capacity: 10 kW Input Connectors: 1 x power NEMA L21-30P Output connectors: 24 x power IEC 60320 C13 - 240 V 12 A ¦ 6 x power IEC 60320 C19 - 240 V 16 A Networking: Ethernet 10/100 Remote Management Protocol: Telnet, SSH, HTTP, HTTPS, SMTP, SNMP 1, SNMP 2, SNMP 3, NTP Included Accessories: 30 plug-lock insert sleeves TAA Compliant: TAA Compliant Dimensions (WxDxH): 2.2 in x 2.5 in x 70 in Manufacturer Warranty: 2-year warranty - General
Device Type: Power distribution unit - rack-mountable Height (Rack Units): 0U Cord Length: 6 ft - Power Device
Input Voltage: AC 208/240 V Frequency Provided: 50/60 Hz Input Wiring: 3-phase Input Connectors: 1 x power NEMA L21-30P Power Output Connectors Details: 24 x power IEC 60320 C13 - 240 V 12 A ¦ 6 x power IEC 60320 C19 - 240 V 16 A Output Voltage: AC 208/240 V 50/60 Hz Max Electric Current: 16 A Power Capacity: 10 kW Circuit Protection: Circuit breaker - Networking
Remote Management Interface: Ethernet 10/100 Remote Management Protocol: Telnet, SSH, HTTP, HTTPS, SMTP, SNMP 1, SNMP 2, SNMP 3, NTP - Expansion / Connectivity
Interfaces: 2 x USB - 4 pin USB Type A ¦ 1 x USB - 4 pin USB Type B ¦ 1 x management (Fast Ethernet) - RJ-45 ¦ 1 x management - RJ-45 - Miscellaneous
Included Accessories: 30 plug-lock insert sleeves Cables Included: Power cable - integrated - 6 ft ¦ Management cable - external Rack Mounting Kit: Included Features: Vertical orientation, overload protection, current meter, switched, touch screen LCD display, voltage monitoring, digital power meter, LED indicators, built-in LX platform interface, email alerts support Compliant Standards: UL 60950-1:2007, CAN/CSA-C22.2 No. 60950-1-07+A1:2011+A2:2014, FCC Part 15 A, NOM, RoHS TAA Compliant: Yes - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 122 °F Humidity Range Operating: 5 - 95% (non-condensing) - Dimensions & Weight
Width: 2.2 in Depth: 2.5 in Height: 70 in Weight: 16.8 lbs - Dimensions & Weight (Shipping)
Shipping Width: 9.6 in Shipping Depth: 6.9 in Shipping Height: 76 in Shipping Weight: 23.88 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121017
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121017 |
| Part# | TRP-PDU3EVS6L2130 |
| MFG Part# | PDU3EVS6L2130 |
| UPC | 37332206732 |
| Device Type | Power distribution unit - rack-mountable |
| Circuit Protection | Circuit breaker |
| Remote Management Protocol | HTTP, HTTPS, NTP, SMTP, SNMP 1, SNMP 2, SNMP 3, SSH, Telnet |
