TRIPP LITE PDU 3-PHASE 208V 14.4KW 36 C13 9 C19 0U 6702430
SKU
6702430
CA$1,801.16
Category: Power Distribution Units
- Primary Information

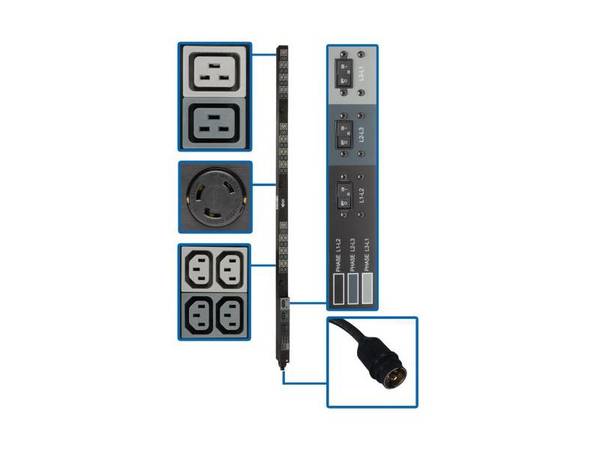

Product Description: Tripp Lite 14.4kW 208V 3-Phase Basic PDU - 45 Outlets (36 C13, 3 C19, 3 L6-30R), Hubbell 50A CS8365C Input, 6 ft. Cord, 70 in. 0U, TAA - power distribution unit - 14.4 kW - TAA Compliant Device Type: Power distribution unit - rack-mountable Rack Size: 0U Weight: 14.51 lbs Input Wiring: 3-phase Input Voltage: AC 208 V Output Voltage: AC 208 V Power Capacity: 14.4 kW Input Connectors: 1 x Hubbell CS8365C Output connectors: 36 x power IEC 60320 C13 12 A ¦ 9 x power IEC 60320 C19 16 A ¦ 3 x power NEMA L6-30R 24 A Included Accessories: Cable retention brackets TAA Compliant: TAA Compliant Dimensions (WxDxH): 2.6 in x 1.7 in x 70 in Manufacturer Warranty: 2-year warranty - General
Device Type: Power distribution unit - rack-mountable Height (Rack Units): 0U - Power Device
Input Voltage: AC 208 V Frequency Provided: 50/60 Hz Input Wiring: 3-phase Input Connectors: 1 x Hubbell CS8365C Power Output Connectors Details: 36 x power IEC 60320 C13 12 A ¦ 9 x power IEC 60320 C19 16 A ¦ 3 x power NEMA L6-30R 24 A Output Voltage: AC 208 V 50/60 Hz Max Electric Current: 50 A Power Capacity: 14.4 kW Circuit Protection: Circuit breaker - Miscellaneous
Included Accessories: Cable retention brackets Cables Included: Power cable 6 ft Rack Mounting Kit: Included Features: Vertical orientation Compliant Standards: UL 60950-1, NOM, RoHS, CAN/CSA C22.2 No. 60950-1:2007+A1:2011+A2:2014, UL 60950-1:2007 R10.14 TAA Compliant: Yes - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 122 °F Humidity Range Operating: 5 - 95% (non-condensing) - Dimensions & Weight
Width: 2.6 in Depth: 1.7 in Height: 70 in Weight: 14.51 lbs - Dimensions & Weight (Shipping)
Shipping Width: 10 in Shipping Depth: 77.6 in Shipping Height: 6.1 in Shipping Weight: 22.09 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121017
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121017 |
| Part# | TRP-PDU3V6H50A |
| MFG Part# | PDU3V6H50A |
| UPC | 37332255716 |
| Device Type | Power distribution unit - rack-mountable |
| Circuit Protection | Circuit breaker |
