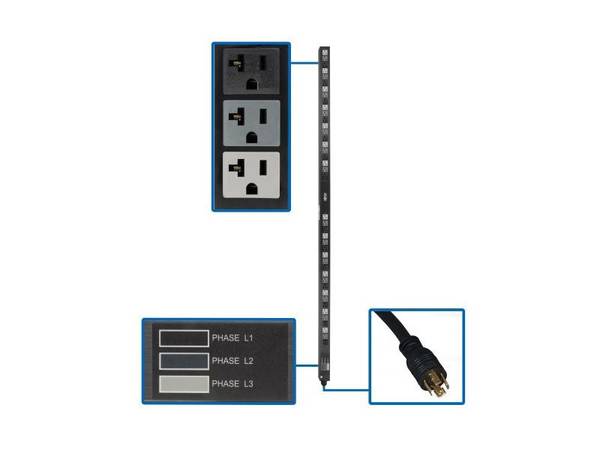

TRIPP LITE PDU 3-PHASE BASIC 5.7KW 42 5-15/20R 0URM 6702431
SKU
6702431
CA$1,129.44
Category: Power Distribution Units
- Primary Information
Product Description: Eaton Tripp Lite Series 5.7kW 3-Phase Basic PDU - 42 NEMA 5-15/20R 120V Outlets, 208V L21-20P Input, 6 ft. Cord, 70 in. 0U Rack, TAA - power distribution unit - 5.7 kW - TAA Compliant Device Type: Power distribution unit - rack-mountable Cord Length: 6 ft Rack Size: 0U Weight: 12.7 lbs Input Wiring: 3-phase Input Voltage: AC 120 V Output Voltage: AC 208 V Power Capacity: 5.7 kW Input Connectors: 1 x power NEMA L21-20P Output connectors: 42 x power NEMA 5-15/20R - 120 V 16 A Included Accessories: Cable retention brackets TAA Compliant: TAA Compliant Dimensions (WxDxH): 1.7 in x 2.2 in x 70 in Manufacturer Warranty: 2-year warranty - General
Device Type: Power distribution unit - rack-mountable Height (Rack Units): 0U Cord Length: 6 ft - Power Device
Input Voltage: AC 120 V Frequency Provided: 50/60 Hz Input Wiring: 3-phase Input Connectors: 1 x power NEMA L21-20P Power Output Connectors Details: 42 x power NEMA 5-15/20R - 120 V 16 A Output Voltage: AC 208 V 50/60 Hz Max Electric Current: 20 A Power Capacity: 5.7 kW Circuit Protection: Circuit breaker - Miscellaneous
Included Accessories: Cable retention brackets Cables Included: Power cable 6 ft Rack Mounting Kit: Included Features: Metal housing, vertical orientation Compliant Standards: UL 60950-1, NOM, RoHS, CAN/CSA C22.2 No. 60950-1:2007+A1:2011+A2:2014, UL 60950-1:2007 R10.14 TAA Compliant: Yes - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 122 °F Humidity Range Operating: 5 - 95% (non-condensing) - Dimensions & Weight
Width: 1.7 in Depth: 2.2 in Height: 70 in Weight: 12.7 lbs - Dimensions & Weight (Shipping)
Shipping Width: 6.8 in Shipping Depth: 76 in Shipping Height: 5.4 in Shipping Weight: 14.59 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121017
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121017 |
| Part# | TRP-PDU3V6L2120LV |
| MFG Part# | PDU3V6L2120LV |
| UPC | 37332255709 |
| Device Type | Power distribution unit - rack-mountable |
| Circuit Protection | Circuit breaker |
