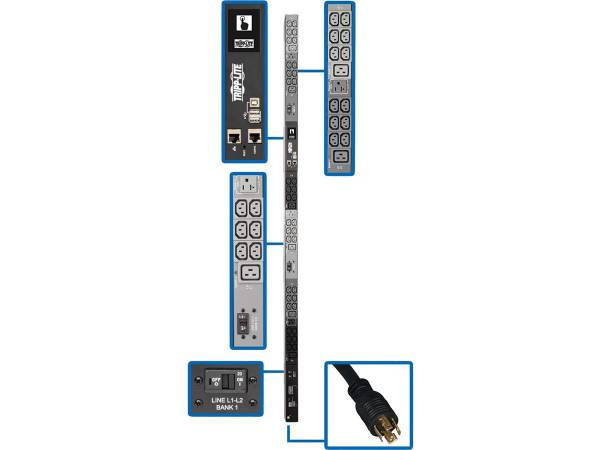

TRIPP LITE PDU 3-PHASE MONITORED 8.6KW 36 C13 6 C19 6029500
SKU
6029500
CA$2,726.31
8.6kW 3-Phase Monitored PDU, LX Interface, 208/120V Outlets (36 C13/6 C19/3 5-15/20R), LCD, NEMA L21-30P, 1.8m/6 ft. Cord, 0U 1.8m/70in. Height, TAA
Category: Power Distribution Units
- Primary Information
Product Description: Tripp Lite 8.6kW 3-Phase Monitored PDU, LX Interface, 208/120V Outlets (36 C13/6 C19/3 5-15/20R), LCD, NEMA L21-30P, 1.8m/6 ft. Cord, 0U 1.8m/70in. Height, TAA - power distribution unit - 8.6 kW - TAA Compliant Device Type: Power distribution unit - rack-mountable Cord Length: 6 ft Rack Size: 0U Weight: 13.49 lbs Input Wiring: 3-phase Input Voltage: AC 208 V Output Voltage: AC 120/208 V Power Capacity: 8.6 kW Input Connectors: 1 x power NEMA L21-30P Output connectors: 36 x power IEC 60320 C13 - 208 V ¦ 6 x power IEC 60320 C19 - 208 V ¦ 3 x power NEMA 5-15/20R - 120 V Networking: Ethernet 10/100, USB, serial Remote Management Protocol: SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, SMTP Included Accessories: 42 plug-lock insert sleeves TAA Compliant: TAA Compliant Dimensions (WxDxH): 2.2 in x 2.5 in x 70 in Manufacturer Warranty: 2-year warranty - General
Device Type: Power distribution unit - rack-mountable Height (Rack Units): 0U Cord Length: 6 ft - Power Device
Input Voltage: AC 208 V Frequency Provided: 50/60 Hz Input Wiring: 3-phase Input Connectors: 1 x power NEMA L21-30P Power Output Connectors Details: 36 x power IEC 60320 C13 - 208 V ¦ 6 x power IEC 60320 C19 - 208 V ¦ 3 x power NEMA 5-15/20R - 120 V Output Voltage: AC 120/208 V 50/60 Hz Max Electric Current: 24 A Power Capacity: 8.6 kW Circuit Protection: Circuit breaker - Networking
Remote Management Interface: Ethernet 10/100, USB, serial Remote Management Protocol: SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, SMTP - Expansion / Connectivity
Interfaces: 2 x USB - 4 pin USB Type A ¦ 1 x management (Fast Ethernet) - RJ-45 ¦ 1 x serial - RJ-45 ¦ 1 x USB - 4 pin USB Type B - Miscellaneous
Included Accessories: 42 plug-lock insert sleeves Cables Included: Power cable - external - 6 ft Rack Mounting Kit: Included Features: Vertical orientation, LCD display, current meter, amp meter, email alerts support, firmware upgradable Compliant Standards: NOM, RoHS, UL 60950-1, FCC Part 15 A, CAN/CSA-C22.2 No. 60950-1 TAA Compliant: Yes - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 122 °F Humidity Range Operating: 5 - 95% (non-condensing) - Dimensions & Weight
Width: 2.2 in Depth: 2.5 in Height: 70 in Weight: 13.49 lbs - Dimensions & Weight (Shipping)
Shipping Width: 7.1 in Shipping Depth: 9.6 in Shipping Height: 76 in Shipping Weight: 22.71 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121017
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121017 |
| Part# | TRP-PDU3EVN6L2130 |
| MFG Part# | PDU3EVN6L2130 |
| UPC | 37332195296 |
| Device Type | Power distribution unit - rack-mountable |
| Circuit Protection | Circuit breaker |
| Remote Management Protocol | HTTP, HTTPS, SMTP, SNMP 1, SNMP 2, SNMP 3, SSH, Telnet |
