TRIPP LITE PDU 5/5.8KW SINGLE-PHASE MONITORED 6013215
SKU
6013215
CA$1,619.28

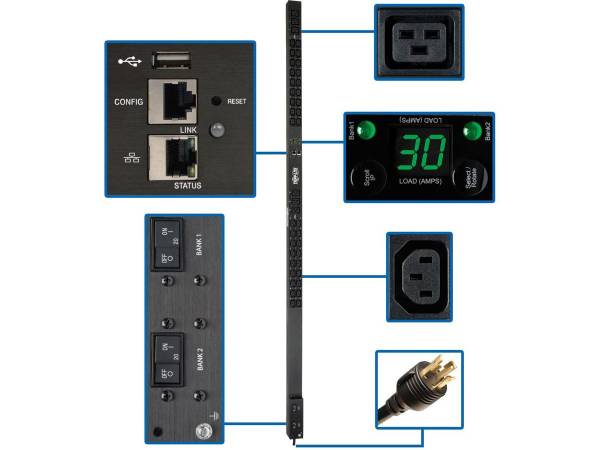

Eaton 5.5kW Single-Phase Monitored PDU, LX Interface, 208/230V Outlets (36 C13/6 C19), L6-30P, 10 ft. (3.05 m) Cord, 0U 1.8m/70 in. Height, TAA - The 0U PDU features 42 outlets (36 C13 and 6 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A 10-ft. (3.05 m) cord with NEMA L6-30P plug connects the PDU to a compatible AC power source, generator or protected UPS.
Category: Power Distribution Units
- Primary Information
Product Description: Tripp Lite 5/5.8kW Single-Phase Monitored PDU, LX Interface, 208/240V Outlets (36 C13/6 C19), L6-30P, 10 ft. Cord, 0U 1.8m/70 in. Height, TAA - power distribution unit - 5.8 kW - TAA Compliant Device Type: Power distribution unit - rack-mountable Cord Length: 10 ft Rack Size: 0U Weight: 0.24 oz Input Wiring: 1-phase Input Voltage: AC 200/208/240 V Output Voltage: AC 200/208/240 V Power Capacity: 5.8 kW Input Connectors: 1 x power NEMA L6-30 Output connectors: 36 x power IEC 60320 C13 ¦ 6 x power IEC 60320 C19 Networking: Ethernet 10/100, USB, serial Remote Management Protocol: SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, SMTP Included Accessories: 42 plug-lock inserts TAA Compliant: TAA Compliant Dimensions (WxDxH): 2.2 in x 2.6 in x 70 in Manufacturer Warranty: 2-year warranty - General
Device Type: Power distribution unit - rack-mountable Height (Rack Units): 0U Cord Length: 10 ft - Power Device
Input Voltage: AC 200/208/240 V Frequency Provided: 50/60 Hz Input Wiring: 1-phase Input Connectors: 1 x power NEMA L6-30 Power Output Connectors Details: 36 x power IEC 60320 C13 ¦ 6 x power IEC 60320 C19 Output Voltage: AC 200/208/240 V 50/60 Hz Max Electric Current: 30 A Power Capacity: 5.8 kW - Networking
Remote Management Interface: Ethernet 10/100, USB, serial Remote Management Protocol: SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, SMTP - Expansion / Connectivity
Interfaces: 1 x USB - 4 pin USB Type A ¦ 1 x management (Fast Ethernet) - RJ-45 ¦ 1 x serial - RJ-45 - Miscellaneous
Included Accessories: 42 plug-lock inserts Cables Included: Power cable - external - 10 ft Rack Mounting Kit: Included Features: Vertical orientation, LCD display, current meter, amp meter, email alerts support, firmware upgradable Compliant Standards: NOM, RoHS, CAN/CSA C22.2 No. 60950-1-07, UL 60950-1:2007, FCC CFR47 Part 15 A TAA Compliant: Yes - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Humidity Range Operating: 5 - 95% (non-condensing) - Dimensions & Weight
Width: 2.2 in Depth: 2.6 in Height: 70 in Weight: 0.24 oz - Dimensions & Weight (Shipping)
Shipping Width: 5.8 in Shipping Depth: 4.3 in Shipping Height: 72.4 in Shipping Weight: 16.49 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121017
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121017 |
| Part# | TRP-PDUMNV30HV2LX |
| MFG Part# | PDUMNV30HV2LX |
| UPC | 37332204486 |
| Device Type | Power distribution unit - rack-mountable |
| Remote Management Protocol | HTTP, HTTPS, SMTP, SNMP 1, SNMP 2, SNMP 3, SSH, Telnet |
