TRIPP LITE PDU 7.4KW SINGLE-PHASE MONITORED 6013216
SKU
6013216
CA$1,545.96

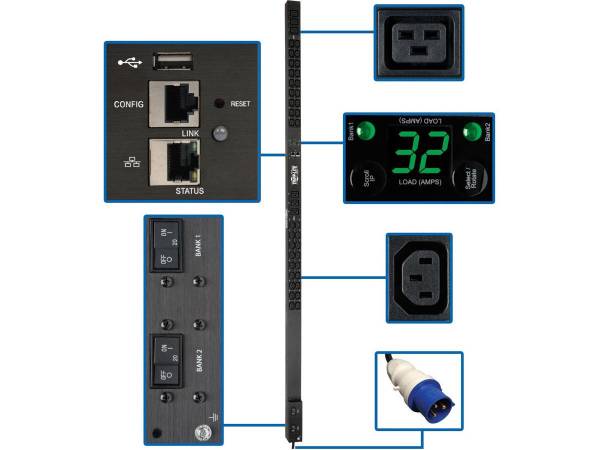

7.7kW Single-Phase Monitored PDU, LX Interface, 200-240V Outlets (36 C13/6 C19), IEC 309 32A Blue, 10 ft. (3.05 m) Cord, 0U 1.8m/70 in. Height, TAA - The 0U PDU features 42 outlets (36 C13 and 6 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A 10-ft. (3.05 m) cord with IEC 309 32A Blue (2P+E) plug connects the PDU to a compatible AC power source, generator or protected UPS.
Category: Power Distribution Units
- Primary Information
Product Description: Tripp Lite 7.4kW Single-Phase Monitored PDU, LX Interface, 230V Outlets (36 C13/6 C19), IEC 309 32A Blue, 10 ft. Cord, 0U 1.8m/70 in. Height, TAA - power distribution unit - 7.7 kW - TAA Compliant Device Type: Power distribution unit - rack-mountable Cord Length: 10 ft Rack Size: 0U Weight: 9.7 lbs Input Wiring: 1-phase Input Voltage: AC 200-240 V Output Voltage: AC 200-240 V Power Capacity: 7.7 kW Input Connectors: 1 x power IEC 60309 32A Output connectors: 36 x power IEC 60320 C13 ¦ 6 x power IEC 60320 C19 Networking: Ethernet 10/100, USB, serial Remote Management Protocol: SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, SMTP Included Accessories: 42 plug-lock inserts TAA Compliant: TAA Compliant Dimensions (WxDxH): 2.2 in x 2.6 in x 70 in Manufacturer Warranty: 2-year warranty - General
Device Type: Power distribution unit - rack-mountable Height (Rack Units): 0U Cord Length: 10 ft - Power Device
Input Voltage: AC 200-240 V Frequency Provided: 50/60 Hz Input Wiring: 1-phase Input Connectors: 1 x power IEC 60309 32A Power Output Connectors Details: 36 x power IEC 60320 C13 ¦ 6 x power IEC 60320 C19 Output Voltage: AC 200-240 V 50/60 Hz Max Electric Current: 32 A Power Capacity: 7.7 kW - Networking
Remote Management Interface: Ethernet 10/100, USB, serial Remote Management Protocol: SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, SMTP - Expansion / Connectivity
Interfaces: 1 x USB - 4 pin USB Type A ¦ 1 x management (Fast Ethernet) - RJ-45 ¦ 1 x serial - RJ-45 - Miscellaneous
Included Accessories: 42 plug-lock inserts Cables Included: Power cable - external - 10 ft Rack Mounting Kit: Included Features: Vertical orientation, 2P+E plug, LCD display, current meter, amp meter, email alerts support, firmware upgradable Compliant Standards: RoHS, EN 60950-1:2006, IEC 60950-1:2005 Second Edition TAA Compliant: Yes - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Humidity Range Operating: 5 - 95% (non-condensing) - Dimensions & Weight
Width: 2.2 in Depth: 2.6 in Height: 70 in Weight: 9.7 lbs - Dimensions & Weight (Shipping)
Shipping Width: 6.6 in Shipping Depth: 5.4 in Shipping Height: 73.3 in Shipping Weight: 15.43 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121017
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121017 |
| Part# | TRP-PDUMNV32HV2LX |
| MFG Part# | PDUMNV32HV2LX |
| UPC | 37332204899 |
| Device Type | Power distribution unit - rack-mountable |
| Remote Management Protocol | HTTP, HTTPS, SMTP, SNMP 1, SNMP 2, SNMP 3, SSH, Telnet |
