TRIPP LITE PDU SWITCHED 3.2-3.8KW 200-240V 20 C13 5995598
SKU
5995598
CA$2,096.64
Only 2 left

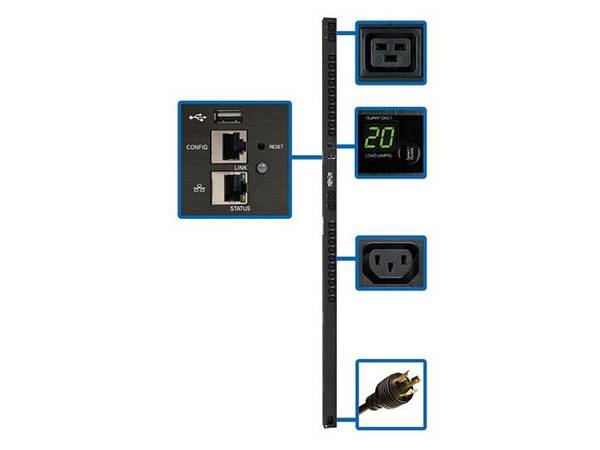

3.2 3.8kW Single-Phase Switched PDU with LX Platform Interface, 200 240V Outlets (20 C13 & 4 C19), C20/L6-20P, 0U, TAA
Category: Power Distribution Units
- Primary Information
Product Description: Tripp Lite 3.2-3.8kW Single-Phase Switched PDU with LX Platform Interface, 200-240V Outlets (20 C13 & 4 C19), C20/L6-20P, 0U, TAA - power distribution unit - 3.84 kW - TAA Compliant Device Type: Power distribution unit - rack-mountable Cord Length: 10 ft Rack Size: 19" - 0U Weight: 8.51 lbs Input Wiring: 1-phase Input Voltage: AC 200/208/220/230/240 V Output Voltage: AC 200/208/220/230/240 V Power Capacity: 3.84 kW Input Connectors: 1 x power NEMA L6-20P Output connectors: 20 x power IEC 60320 C13 12 A ¦ 4 x power IEC 60320 C19 16 A Networking: Ethernet 10/100 Remote Management Protocol: SNMP 1, SNMP 2, Telnet, HTTP, HTTPS, SSH Included Accessories: Cable retention brackets, 24 cable ties TAA Compliant: TAA Compliant Dimensions (WxDxH): 2.2 in x 2.6 in x 70 in Manufacturer Warranty: 2-year warranty - General
Device Type: Power distribution unit - rack-mountable Height (Rack Units): 0U Rack Size: 19" Cord Length: 10 ft - Power Device
Input Voltage: AC 200/208/220/230/240 V Frequency Provided: 50/60 Hz Input Wiring: 1-phase Input Connectors: 1 x power NEMA L6-20P Power Output Connectors Details: 20 x power IEC 60320 C13 12 A ¦ 4 x power IEC 60320 C19 16 A Output Voltage: AC 200/208/220/230/240 V 50/60 Hz Max Electric Current: 20 A Power Capacity: 3.84 kW - Networking
Remote Management Interface: Ethernet 10/100 Remote Management Protocol: SNMP 1, SNMP 2, Telnet, HTTP, HTTPS, SSH - Expansion / Connectivity
Interfaces: 2 x management (Ethernet) - RJ-45 ¦ 1 x USB - 4 pin USB Type A - Miscellaneous
Included Accessories: Cable retention brackets, 24 cable ties Cables Included: Power cable - external - 10 ft ¦ Data cable Rack Mounting Kit: Included Features: LCD display, voltage monitoring, current meter, LED indicators, vertical orientation, email alerts support, firmware upgradable Compliant Standards: FCC Class A certified, NOM, RoHS, CAN/CSA C22.2 No. 60950-1-07, IEC 60950-1:2005, EN 55024:2010, EN 55022:2010/AC:2011, IEC 60950-1:2007 TAA Compliant: Yes - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Humidity Range Operating: 95% (non-condensing) - Dimensions & Weight
Width: 2.2 in Depth: 2.6 in Height: 70 in Weight: 8.51 lbs - Dimensions & Weight (Shipping)
Shipping Width: 6.4 in Shipping Depth: 73 in Shipping Height: 5.3 in Shipping Weight: 14.2 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121017
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121017 |
| Part# | TRP-PDUMV20HVNETLX |
| MFG Part# | PDUMV20HVNETLX |
| UPC | 37332205292 |
| Device Type | Power distribution unit - rack-mountable |
| Remote Management Protocol | HTTP, HTTPS, SNMP 1, SNMP 2, SSH, Telnet |
