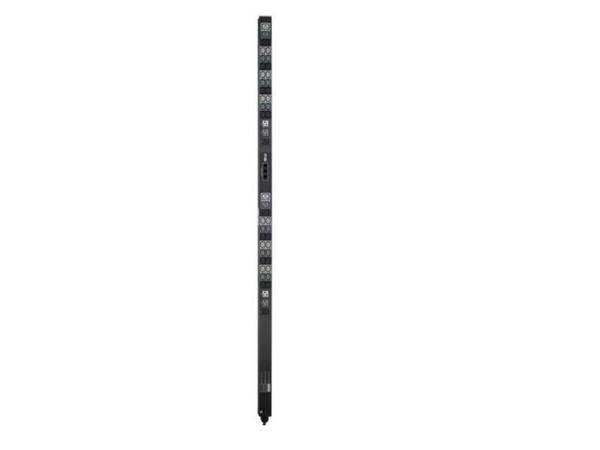

TRIPP LITE PDU3-PHS 208/120V 5.7KW 36C13 5-15/20R 4893615
SKU
4893615
CA$1,407.12
5.7kW 3-Phase Local Metered PDU, 208/120V Outlets (36 C13, 6 C19, 6 5-15/20R), L21-20P, 6 ft. (1.83 m) Cord, 0U Vertical, TAA - Reports input current per-phase via built in current meters - Toolless button-mount installation; cord retention brackets included
Category: Power Distribution Units
- Primary Information
Product Description: Eaton Tripp Lite Series PDU 3-Phase Metered 208/120V 5.7 Kw 36 C13; 6 C19; 6 5-15/20R 0U - vertical rackmount - power distribution unit - 5.7 kW Device Type: Power distribution unit - rack-mountable Rack Size: 0U Weight: 12.57 lbs Input Wiring: 3-phase Input Voltage: AC 208 V Output Voltage: AC 120/208 V Power Capacity: 5.7 kW Input Connectors: 1 x power NEMA L21-20 Output connectors: 36 x power IEC 60320 C13 ¦ 6 x power IEC 60320 C19 ¦ 6 x power NEMA 5-15/20 Dimensions (WxDxH): 1.9 in x 2.2 in x 70 in Manufacturer Warranty: 2-year warranty - General
Device Type: Power distribution unit - rack-mountable Height (Rack Units): 0U - Power Device
Input Voltage: AC 208 V Frequency Provided: 60 Hz Input Wiring: 3-phase Input Connectors: 1 x power NEMA L21-20 Power Output Connectors Details: 36 x power IEC 60320 C13 ¦ 6 x power IEC 60320 C19 ¦ 6 x power NEMA 5-15/20 Output Voltage: AC 120/208 V 60 Hz Max Electric Current: 16 A Power Capacity: 5.7 kW Circuit Protection: Circuit breaker - Miscellaneous
Cables Included: Power cable 6 ft Rack Mounting Kit: Included Features: LED display, current meter, overload protection Compliant Standards: NOM, RoHS, IEC 60950-1 - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Humidity Range Operating: 0 - 95% (non-condensing) - Dimensions & Weight
Width: 1.9 in Depth: 2.2 in Height: 70 in Weight: 12.57 lbs - Dimensions & Weight (Shipping)
Shipping Width: 6.1 in Shipping Depth: 4.3 in Shipping Height: 75.8 in Shipping Weight: 14.55 lbs - Special Feature
COO: TAIWAN - UNSPSC Code
UNSPSC Code: 39121017
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121017 |
| Part# | TRP-PDU3MV6L2120 |
| MFG Part# | PDU3MV6L2120 |
| UPC | 37332163929 |
| Device Type | Power distribution unit - rack-mountable |
| Circuit Protection | Circuit breaker |
