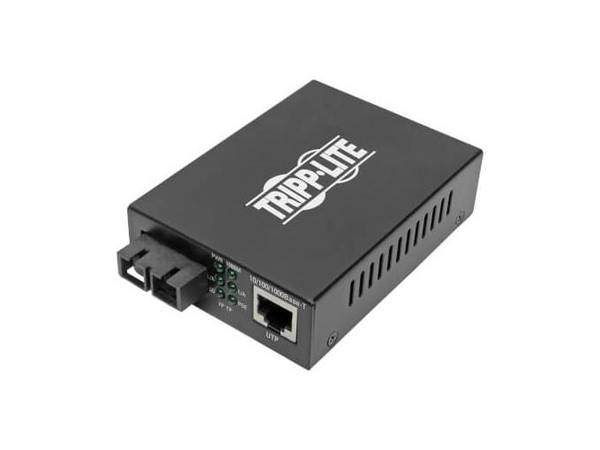

TRIPP LITE SC SMF FIBER TO GBE MEDIA CONVERTER 20KM 6360615
SKU
6360615
CA$420.40
Gigabit Singlemode Fiber to Ethernet Media Converter, POE+ 101001000 SC, 1310 nm, 20 km 12.4 mi. - RJ45 jack supports auto-MDI/MDIZ to bridge various network devices - Supports both full- and half-duplex operation
Category: Repeaters & Transceivers
- Primary Information
Product Description: Eaton Tripp Lite Series Gigabit Singlemode Fiber to Ethernet Media Converter, POE+ - 10/100/1000 SC, 1310 nm, 20 km (12.4 mi.) - fiber media converter - 10Mb LAN, 100Mb LAN, 1GbE Device Type: Fiber media converter - RJ-45 / SC single-mode Form Factor: External Localization: North America Cabling Type: 10Base-T, 100Base-TX, 1000Base-T Data Transfer Rate: 1 Gbps Optical Wave Length: 1310 nm Data Link Protocol: 10Mb LAN, 100Mb LAN, 1GbE Max Transfer Distance: 12.4 miles Power Over Ethernet (PoE): PoE+ Power: AC 120/230 V Dimensions (WxDxH): 3.7 in x 2.8 in x 1 in Weight: 7.05 oz Manufacturer Warranty: 2-year warranty - General
Device Type: Fiber media converter Form Factor: External Color: Black Localization: North America - Networking
Connectivity Technology: Wired Cabling Type: 10Base-T, 100Base-TX, 1000Base-T Data Link Protocol: 10Mb LAN, 100Mb LAN, 1GbE Data Transfer Rate: 1 Gbps Optical Wave Length: 1310 nm Max Transfer Distance: 12.4 miles Status Indicators: Power, port transmission speed, PoE Features: Auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode, Link Fault Pass Through function (LFP) Compliant Standards: IEEE 802.3af, IEEE 802.3at - Expansion / Connectivity
Interfaces: 1 x Ethernet 10Base-T/100Base-TX/1000Base-T (PoE+) - RJ-45 ¦ 1 x Ethernet 1000 - SC single-mode female x 2 - Power
Power Over Ethernet (PoE): PoE+ Power Device: External power adapter Voltage Required: AC 120/230 V (50/60 Hz) - Dimensions & Weight
Width: 3.7 in Depth: 2.8 in Height: 1 in Weight: 7.05 oz - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: -4 °F Max Operating Temperature: 140 °F Humidity Range Operating: 5 - 90% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43201553
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 43201553 |
| Part# | TRP-N785-P01-SC-SM1 |
| MFG Part# | N785-P01-SC-SM1 |
| UPC | 37332236944 |
| Max Transfer Distance | 12.4 miles |
| Device Type | Fiber media converter |
| Connectivity Technology | Wired |
| Data Transfer Rate | 1 Gbps |
| Form Factor | External |
| Data Link Protocol | 100Mb LAN, 10Mb LAN, 1GbE |
| Color | Black |
