TRIPP LITE SINGLE-PHASE PDU 3.2-3.8KW 200 240V 6689870
SKU
6689870
CA$542.18
Only 3 left

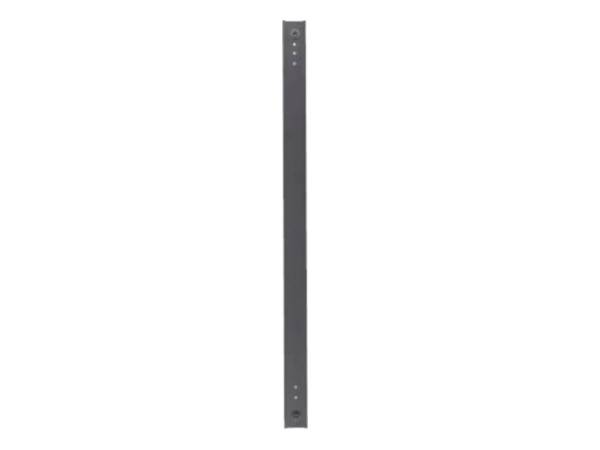

PDUMV20HV-36 - Power Distribution Unit - Vertical (0U) - 208; 230V - 3.68KW - (16) C13; (4) C19 - 16A - 2-year limited warranty - 16 C13 and 4 C19 208/230V outlets distribute AC power to connected equipment. Digital ammeter for on-site real-time load monitoring helps prevent power overloads
Category: Power Distribution Units
- Primary Information
Product Description: Eaton Tripp Lite Series PDU Metered 3.2-3.8kW 200-240V Single-Phase - 16 C13 & 4 C19 Outlets, C20/L6-20P Input, 10-ft. (3.05 m) Cord, 36 in. 0U Rack - power distribution unit - 3.84 kW Device Type: Power distribution unit - rack-mountable Cord Length: 10 ft Rack Size: 36" - 0U Weight: 5.2 lbs Input Wiring: 1-phase Input Voltage: AC 200/208/220/230/240 V Output Voltage: AC 200/208/220/230/240 V Power Capacity: 3.84 kW Input Connectors: 1 x power NEMA L6-20P Output connectors: 16 x power IEC 60320 C13 12 A ¦ 4 x power IEC 60320 C19 16 A Included Accessories: 20 plug-lock inserts Dimensions (WxDxH): 3.7 in x 2.2 in x 39.8 in Manufacturer Warranty: 2-year warranty - General
Device Type: Power distribution unit - rack-mountable Height (Rack Units): 0U Rack Size: 36" Cord Length: 10 ft - Power Device
Input Voltage: AC 200/208/220/230/240 V Frequency Provided: 50/60 Hz Input Wiring: 1-phase Input Connectors: 1 x power NEMA L6-20P Power Output Connectors Details: 16 x power IEC 60320 C13 12 A ¦ 4 x power IEC 60320 C19 16 A Output Voltage: AC 200/208/220/230/240 V 50/60 Hz Max Electric Current: 20 A Power Capacity: 3.84 kW - Miscellaneous
Included Accessories: 20 plug-lock inserts Cables Included: Power cable (C20-NEMA L6-20P) - external - 10 ft Rack Mounting Kit: Included Features: Voltage monitoring, current meter, vertical orientation, amp meter, LCD display Compliant Standards: CAN/CSA-C22.2 No. 60950-1, IEC 60950-1:2005 Second Edition, NOM, UL 60950-1, UL 60950-1:2007 Second Edition - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Humidity Range Operating: 0 - 95% (non-condensing) - Dimensions & Weight
Width: 3.7 in Depth: 2.2 in Height: 39.8 in Weight: 5.2 lbs - Dimensions & Weight (Shipping)
Shipping Width: 5 in Shipping Depth: 3.5 in Shipping Height: 41.3 in Shipping Weight: 9.5 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121017
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121017 |
| Part# | TRP-PDUMV20HV-36 |
| MFG Part# | PDUMV20HV-36 |
| UPC | 37332255921 |
| Device Type | Power distribution unit - rack-mountable |
