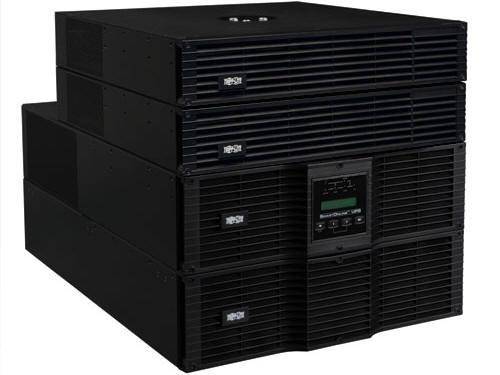

TRIPP LITE SMART ONLINE 10KVA 10U RACK/TOWER 4040671
SKU
4040671
CA$15,849.10
SmartOnline 208/120V 10kVA 9kW Double-Conversion UPS, 10U, Extended Run, Network Card Slot, USB, DB9, Bypass Switch,NEMA
Category: UPS
- Primary Information
Product Description: Tripp Lite UPS Smart Online 10000VA 9000W 208/120V Rackmount 10kVA USB DB9 Manual Bypass Switch Hot Swap 10URM - UPS - 9 kW - 10000 VA Device Type: UPS - external Rack Size: 10U Input Voltage: AC 208 V Output Voltage: AC 120/208 V ± 2% Power Capacity: 9 kW / 10000 VA Input Connectors: Hardwire Output connectors: 24 x power NEMA 5-15/20 ¦ 4 x power NEMA L6-20 ¦ 2 x power NEMA L6-30 Battery: Lead acid Battery Form Factor: External Run Time (Up To): 6 min at full load Color: Attractive black Dimensions (WxDxH): 17.5 in x 32.5 in x 21.1 in Manufacturer Warranty: 2-year warranty - General
Device Type: UPS - external Battery Enclosure Type: External Height (Rack Units): 10U Color: Attractive black - Power Device
UPS Technology: On-line Input Voltage: AC 208 V Input Voltage Range: AC 156 - 276 V Frequency Provided: 50/60 Hz Frequency Required: 50/60 Hz Input Connectors: Hardwire Power Output Connectors Details: 24 x power NEMA 5-15/20 ¦ 4 x power NEMA L6-20 ¦ 2 x power NEMA L6-30 Output Voltage: AC 120/208 V ± 2% - 50/60 Hz Power Capacity: 9 kW / 10000 VA Output Waveform: Sinewave Surge Suppression: Yes - Battery
Technology: Lead acid Voltage Provided: 240 V Run Time (Up To): 6 min at full load Recharge Time: 8 hours - Expansion / Connectivity
Interfaces: 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management - 9 pin D-Sub (DB-9) Expansion Slots: 1 (total) / 1 (free) x expansion slot - Miscellaneous
Rack Mounting Kit: Included Equipment Protection Value: 250000 US Dollars Features: Audible alarm, emergency power off, built-in maintenance bypass, LED indicators Compliant Standards: CSA, NOM, UL 1778 - Software / System Requirements
Software Included: TrippLite PowerAlert - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 95% - Dimensions & Weight
Width: 17.5 in Depth: 32.5 in Height: 21.1 in - Special Feature
COO: CHINA - UNSPSC Code
UNSPSC Code: 39121011
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121011 |
| Part# | TRP-SU10000RT3U2TF |
| MFG Part# | SU10000RT3U2TF |
| UPC | 37332127389 |
| Device Type | UPS - external |
| UPS Technology | On-line |
| Surge Suppression | Yes |
| Color | Attractive black |
