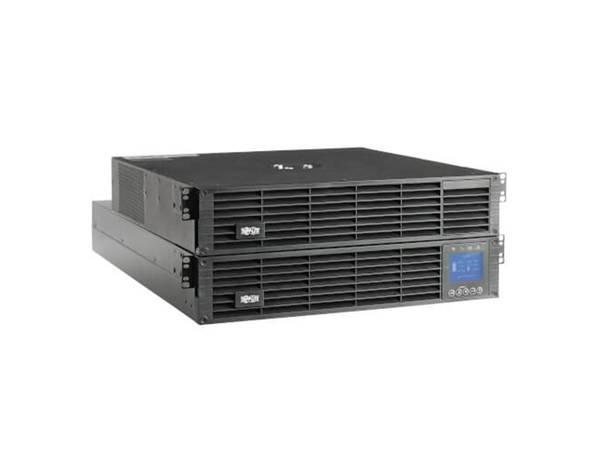

TRIPP LITE SMART ONLINE UPS 3000VA 208/120V 4URM 6481054
SKU
6481054
CA$8,527.35
Category: UPS
- Primary Information
Product Description: Tripp Lite Smart Online UPS 3000VA 2700W 208/120V Step-Down Transformer 4U - UPS - 2.7 kW - 3000 VA Device Type: UPS - rack-mountable Rack Size: 19" - 4U Weight: 2.14 oz Input Voltage: AC 208 V Output Voltage: AC 120/208 V ± 2% Power Capacity: 2.7 kW / 3000 VA Power Redundancy: Optional Input Connectors: Power NEMA L6-20P Output connectors: 12 x power NEMA 5-15/20R ¦ 6 x power NEMA 6-15/20R ¦ 2 x power NEMA L6-20R Battery: Expandable Run Time (Up To): 5 min at full load Networking: RS-232, USB Dimensions (WxDxH): 17.3 in x 24.3 in x 7 in Manufacturer Warranty: 2-year warranty - General
Device Type: UPS - rack-mountable Height (Rack Units): 4U Rack Size: 19" - Power Device
UPS Technology: On-line Power Redundancy: Optional Input Voltage: AC 208 V Frequency Provided: 60 Hz Frequency Required: 60 Hz Input Connectors: Power NEMA L6-20P Power Output Connectors Details: 12 x power NEMA 5-15/20R ¦ 6 x power NEMA 6-15/20R ¦ 2 x power NEMA L6-20R Output Voltage: AC 120/208 V ± 2% - 60 Hz Max Electric Current: 20 A Power Capacity: 2.7 kW / 3000 VA Output Waveform: Sinewave Surge Suppression: Yes Surge Energy Rating: 570 Joules Circuit Protection: Circuit breaker Efficiency: 90% at 100% Load, 96% at 100% Load Eco mode Power Factor (PF): 0.9 - Battery
Type: Expandable Voltage Provided: DC 72 V Run Time (Up To): 5 min at full load ¦ 13.5 min at half load Recharge Time: 3 hours - Networking
Remote Management Interface: RS-232, USB - Expansion / Connectivity
Interfaces: 1 x serial ¦ 1 x EPO (emergency power off) ¦ 1 x USB - Miscellaneous
Cables Included: Power cable 10 ft ¦ USB cable ¦ Serial cable ¦ EPO cable Rack Mounting Kit: Included Equipment Protection Value: 250000 US Dollars Features: Cold-start function, noise filtering, noise suppression, cooling fan, audible alarm Compliant Standards: FCC Part 15 A, CSA, NOM, UL 1778, IEC 62040-1, CAN/CSA C22.2 No. 107.3:2014 3rd Edition, EN 62040-2, SASO - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 95% (non-condensing) Sound Emission: 50 dBA - Dimensions & Weight
Width: 17.3 in Depth: 24.3 in Height: 7 in Weight: 2.14 oz - Dimensions & Weight (Shipping)
Shipping Width: 37.8 in Shipping Depth: 17.3 in Shipping Height: 24.3 in - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121011
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121011 |
| Part# | TRP-SU3000LCD2UHVTF |
| MFG Part# | SU3000LCD2UHVTF |
| UPC | 37332241719 |
| Device Type | UPS - rack-mountable |
| UPS Technology | On-line |
| Surge Suppression | Yes |
| Type | Expandable |
| Efficiency | 90% at 100% Load, 96% at 100% Load Eco mode |
| Circuit Protection | Circuit breaker |
