TRIPP LITE SMART PRO 2200VA RACKMOUNT(2U) 3930686
SKU
3930686
CA$3,687.84
Only 2 left

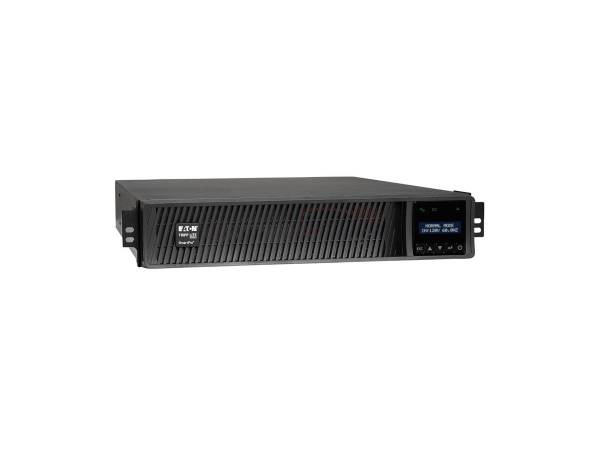

Eaton Tripp Lite series SmartPro 1950VA 1950W 120V Line-Interactive Sine Wave UPS - 7 Outlets, Extended Run, Network Card Option, LCD, USB, DB9, 2U Rack/Tower
Category: UPS
- Primary Information
Product Description: Eaton Tripp Lite Series SmartPro 1950VA 1950W 120V Line-Interactive Sine Wave UPS - 7 Outlets, Extended Run, Network Card Option, LCD, USB, DB9, ENERGY STAR V2.0, 2U Rack/Tower Battery Backup - UPS - 1950 Watt - 1950 VA Device Type: UPS - external Rack Size: 19" - 2U Weight: 65.26 lbs Input Voltage: AC 120 V Output Voltage: AC 120 V ± 5% Power Capacity: 1950 Watt / 1950 VA Input Connectors: 1 x power NEMA 5-20 Output connectors: 4 x power NEMA 5-15 ¦ 4 x power NEMA 5-15/20 Battery: Expandable Battery Form Factor: Internal Run Time (Up To): 4.5 min at full load Networking: RS-232, USB System Requirements: Apple MacOS X, Microsoft Windows Dimensions (WxDxH): 16.9 in x 23.7 in x 3.4 in Manufacturer Warranty: 3-year warranty with product registration - General
Device Type: UPS - external Battery Enclosure Type: Internal Height (Rack Units): 2U Rack Size: 19" - Power Device
UPS Technology: Line interactive Input Voltage: AC 120 V Input Voltage Range: AC 83 - 145 V Frequency Provided: 60 Hz Input Connectors: 1 x power NEMA 5-20 Power Output Connectors Details: 4 x power NEMA 5-15 ¦ 4 x power NEMA 5-15/20 Output Voltage: AC 120 V ± 5% - 60 Hz Power Capacity: 1950 Watt / 1950 VA Output Waveform: Sinewave Surge Suppression: Yes Surge Energy Rating: 570 Joules - Battery
Type: Expandable Voltage Provided: 48 V Run Time (Up To): 4.5 min at full load ¦ 12 min at half load Recharge Time: 4.5 hours - Networking
Remote Management Interface: RS-232, USB - Expansion / Connectivity
Interfaces: 1 x management (USB) - 4 pin USB Type B ¦ 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x EPO (emergency power off) Expansion Slots: 1 (total) / 1 (free) x expansion slot - Miscellaneous
Cables Included: Power cable 10 ft ¦ USB cable - external ¦ Serial cable - external ¦ EPO cable - external Rack Mounting Kit: Included Equipment Protection Value: 250000 US Dollars Features: Audible alarm, LCD display, Automatic Voltage Regulation (AVR), LED indicators, noise filtering, overvoltage protection, undervoltage protection, cold-start function, cooling fan, hot-swappable batteries Compliant Standards: CSA, NOM, UL 1778, RoHS, FCC Part 15 A - Software / System Requirements
Software Included: TrippLite PowerAlert OS Required: Apple MacOS X, Microsoft Windows - Manufacturer Warranty
Service & Support: Limited warranty - 3 years with product registration - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 95% (non-condensing) - Dimensions & Weight
Width: 16.9 in Depth: 23.7 in Height: 3.4 in Weight: 65.26 lbs - Dimensions & Weight (Shipping)
Shipping Width: 21.7 in Shipping Depth: 30.9 in Shipping Height: 7.9 in Shipping Weight: 78.48 lbs - Special Feature
COO: CHINA - UNSPSC Code
UNSPSC Code: 39121011
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121011 |
| Part# | TRP-SMART2200RMXL2U |
| MFG Part# | SMART2200RMXL2U |
| UPC | 37332118059 |
| Device Type | UPS - external |
| UPS Technology | Line interactive |
| Surge Suppression | Yes |
| Type | Expandable |
