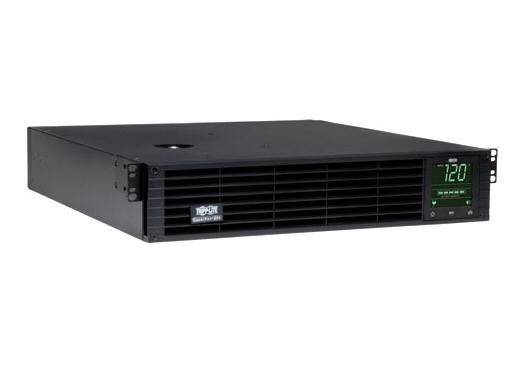

Product Description: | Tripp Lite UPS Smart 2200VA 1920W Rackmount AVR 120V Pure Sign Wave USB DB9 SNMP 2URM - UPS - 1920 Watt - 2200 VA |
Device Type: | UPS - rack-mountable |
Rack Size: | 2U |
Weight: | 64.15 lbs |
Input Voltage: | AC 120 V |
Output Voltage: | AC 120 V ± 5% |
Power Capacity: | 1920 Watt / 2200 VA |
Input Connectors: | 1 x power NEMA 5-20 |
Output connectors: | 4 x power NEMA 5-15 ¦ 4 x power NEMA 5-15/20 ¦ 1 x power NEMA L5-20 |
Battery: | Expandable |
Battery Form Factor: | Internal |
Run Time (Up To): | 4.6 min at full load |
Dimensions (WxDxH): | 17.5 in x 19 in x 3.5 in |
Manufacturer Warranty: | 3-year warranty with product registration |
Device Type: | UPS - rack-mountable |
Battery Enclosure Type: | Internal |
Height (Rack Units): | 2U |
UPS Technology: | Line interactive |
Input Voltage: | AC 120 V |
Input Voltage Range: | AC 105 - 127 V |
Input Voltage Range (Adjustable): | AC 79 - 147 V |
Frequency Provided: | 60 Hz |
Frequency Required: | 60 Hz |
Input Connectors: | 1 x power NEMA 5-20 |
Power Output Connectors Details: | 4 x power NEMA 5-15 ¦ 4 x power NEMA 5-15/20 ¦ 1 x power NEMA L5-20 |
Output Voltage: | AC 120 V ± 5% - 60 Hz |
Power Capacity: | 1920 Watt / 2200 VA |
Output Waveform: | Sinewave |
Surge Energy Rating: | 570 Joules |
Circuit Protection: | Circuit breaker |
Type: | Expandable |
Voltage Provided: | 48 V |
Run Time (Up To): | 4.6 min at full load |
Interfaces: | 1 x management (USB) - 4 pin USB Type B ¦ 1 x management (RS-232) - 9 pin D-Sub (DB-9) |
Expansion Slots: | 1 (total) / 1 (free) x expansion slot |
Cables Included: | Power cable - integrated - 10 ft ¦ 2 x USB cable - external ¦ 2 x serial cable - external ¦ Remote control cable - external |
Equipment Protection Value: | 250000 US Dollars |
Features: | Audible alarm, Automatic Voltage Regulation (AVR) |
Compliant Standards: | FCC Class A certified, cUL, NOM, UL 1778 |
Software Included: | TrippLite PowerAlert |
Service & Support: | Limited warranty - 3 years with product registration |
Min Operating Temperature: | 32 °F |
Max Operating Temperature: | 104 °F |
Humidity Range Operating: | 0 - 95% |
Width: | 17.5 in |
Depth: | 19 in |
Height: | 3.5 in |
Weight: | 64.15 lbs |
Shipping Width: | 21.7 in |
Shipping Depth: | 24.2 in |
Shipping Height: | 7.9 in |
Shipping Weight: | 72.09 lbs |
COO: | CHINA |
UNSPSC Code: | 39121011 |
BRANDS | TRIPP LITE |
---|---|
UNSPSC | 39121011 |
Part# | TRP-SMART2600RM2U |
MFG Part# | SMART2600RM2U |
UPC | 37332116819 |
Device Type | UPS - rack-mountable |
UPS Technology | Line interactive |
Type | Expandable |
Circuit Protection | Circuit breaker |
