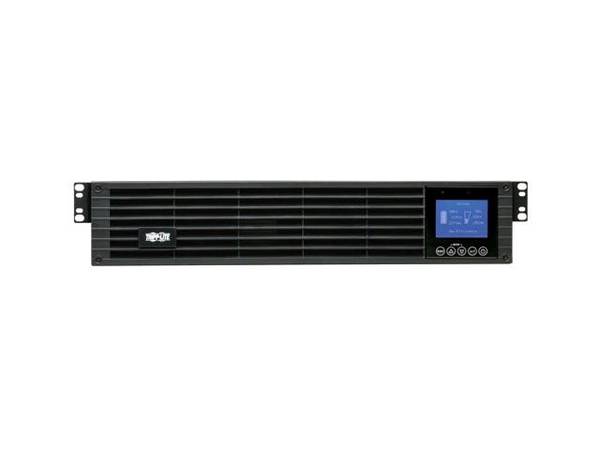

TRIPP LITE SMARTONLINE 208/230V 1.5KVA 1.35KW 5631542
SKU
5631542
CA$2,926.56
Tripp Lite series SmartOnline 1500VA 1350W 208/230V Double-Conversion UPS - 8 Outlets, Extended Run, Network Card Option, LCD, USB, DB9, 2U Rack/Tower - 2-year limited warranty
Category: UPS
- Primary Information
Product Description: Eaton Tripp Lite Series SmartOnline 1500VA 1350W 208/230V Double-Conversion UPS - 8 Outlets, Extended Run, Network Card Option, LCD, USB, DB9, 2U Rack/Tower Battery Backup - UPS - 1.35 kW - 1500 VA Device Type: UPS - Power Factor Correction (PFC) - rack-mountable Rack Size: 19" - 2U Weight: 44.97 lbs Input Wiring: 1-phase Input Voltage: AC 200/208/220/230/240 V Output Voltage: AC 200/208/220/230/240 V Power Capacity: 1.35 kW / 1500 VA Input Connectors: 1 x power IEC 60320 C14 Output connectors: 6 x power IEC 60320 C13 (UPS and surge) Battery: Expandable Run Time (Up To): 4.5 min at full load Networking: RS-232, USB System Requirements: Apple MacOS X, Microsoft Windows Dimensions (WxDxH): 17.2 in x 19.5 in x 3.5 in Manufacturer Warranty: 2-year warranty - General
Device Type: UPS - Power Factor Correction (PFC) - rack-mountable Height (Rack Units): 2U Rack Size: 19" - Power Device
UPS Technology: On-line Input Voltage: AC 200/208/220/230/240 V Frequency Provided: 50/60 Hz Input Wiring: 1-phase Input Connectors: 1 x power IEC 60320 C14 Power Output Connectors Details: 6 x power IEC 60320 C13 (UPS and surge) Output Voltage: AC 200/208/220/230/240 V 50/60 Hz Power Capacity: 1.35 kW / 1500 VA Dataline Surge Protection: Network/phone line - RJ-45/RJ-11 - 1 input line / 1 output line Output Waveform: Sinewave Surge Suppression: Yes Surge Energy Rating: 936 Joules Efficiency: 93% Power Factor (PF): 0.9 - Battery
Type: Expandable Run Time (Up To): 4.5 min at full load ¦ 12.6 min at half load - Networking
Remote Management Interface: RS-232, USB - Expansion / Connectivity
Interfaces: 1 x EPO (emergency power off) - RJ-11 ¦ 1 x USB - 4 pin USB Type B ¦ 1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x serial - 8 pin mini-DIN Expansion Slots: 1 (total) / 1 (free) x expansion slot - Miscellaneous
Cables Included: 2 x power cable - external ¦ Serial cable - external ¦ USB cable - external Rack Mounting Kit: Included Equipment Protection Value: 250000 US Dollars Features: Audible alarm, LCD display, LED indicators, overvoltage protection, undervoltage protection, cold-start function, cooling fan, hot-swappable batteries, 4 switchable sockets, Energy-Saving Outlets Compliant Standards: CSA, SASO, UL 1778, FCC Part 15, RoHS, EAC, IEC 62040-2:2006, IEC 62040-1:2008 - Software / System Requirements
Software Included: TrippLite PowerAlert OS Required: Apple MacOS X, Microsoft Windows - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 5 - 95% (non-condensing) Sound Emission: 45 dBA - Dimensions & Weight
Width: 17.2 in Depth: 19.5 in Height: 3.5 in Weight: 44.97 lbs - Dimensions & Weight (Shipping)
Shipping Width: 22.2 in Shipping Depth: 27.6 in Shipping Height: 9.4 in Shipping Weight: 54.01 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121011
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121011 |
| Part# | TRP-SUINT1500LCD2U |
| MFG Part# | SUINT1500LCD2U |
| UPC | 37332248077 |
| Device Type | UPS - Power Factor Correction (PFC) - rack-mountable |
| UPS Technology | On-line |
| Surge Suppression | Yes |
| Type | Expandable |
| Efficiency | 93% |
