TRIPP LITE SMARTONLINE 208/230V DOUBLE-CONVERSION 5586251
SKU
5586251
CA$4,555.20
Only 2 left

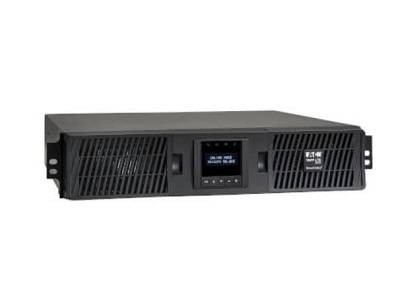

Tripp Lite series SmartOnline 2200VA 2000W 208/230V Double-Conversion UPS - 10 Outlets, Extended Run, Network Card Option, LCD, USB, DB9, 2U Rack/Tower
Category: UPS
- Primary Information
Product Description: Eaton Tripp Lite Series SmartOnline 2200VA 2000W 208/230V Double-Conversion UPS - 10 Outlets, Extended Run, Network Card Option, LCD, USB, DB9, 2U Rack/Tower Battery Backup - UPS - 2000 Watt - 2200 VA Device Type: UPS - rack-mountable Rack Size: 19" - 2U Weight: 50.93 lbs Input Wiring: 1-phase Input Voltage: AC 200/208/220/230/240 V Output Voltage: AC 200/208/220/230/240 V ± 2% Power Capacity: 2000 Watt / 2200 VA Input Connectors: 1 x power IEC 60320 C20 Output connectors: 8 x power IEC 60320 C13 (UPS and surge) ¦ 1 x power IEC 60320 C19 (UPS and surge) Battery: Expandable Run Time (Up To): 6 min at full load Networking: RS-232, USB Dimensions (WxDxH): 17.2 in x 19.5 in x 3.5 in Environmental Standards: ENERGY STAR Manufacturer Warranty: 2-year warranty - General
Device Type: UPS - rack-mountable Height (Rack Units): 2U Rack Size: 19" - Power Device
UPS Technology: On-line Input Voltage: AC 200/208/220/230/240 V Frequency Provided: 50/60 Hz Input Wiring: 1-phase Frequency Required: 50/60 Hz Input Connectors: 1 x power IEC 60320 C20 Power Output Connectors Details: 8 x power IEC 60320 C13 (UPS and surge) ¦ 1 x power IEC 60320 C19 (UPS and surge) Output Voltage: AC 200/208/220/230/240 V ± 2% - 50/60 Hz Max Electric Current: 10.94 A Power Capacity: 2000 Watt / 2200 VA Dataline Surge Protection: Network/phone line - RJ-45/RJ-11 Output Waveform: Sinewave Surge Suppression: Yes Surge Energy Rating: 936 Joules Efficiency: 95% Power Factor (PF): 0.9 - Battery
Type: Expandable Voltage Provided: 48 V Run Time (Up To): 4.3 min at full load ¦ 11.7 min at half load Recharge Time: 3 hours - Networking
Remote Management Interface: RS-232, USB - Expansion / Connectivity
Interfaces: 1 x EPO (emergency power off) ¦ 1 x USB ¦ 1 x RS-232 - 9 pin D-Sub (DB-9) Expansion Slots: 1 (total) / 1 (free) x expansion slot - Miscellaneous
Cables Included: 3 x power cable - external ¦ USB cable - external ¦ Serial cable - external Rack Mounting Kit: Included Equipment Protection Value: 250000 US Dollars Features: Built-in cooling fan, audible alarm, LCD display, voltage monitoring, internal bypass, LED indicators, noise filtering, overvoltage protection, undervoltage protection, cold-start function, cooling fan, Remote Emergency Power Off (REPO), hot-swappable batteries, Energy-Saving Outlets Compliant Standards: CSA, SASO, UL 1778, FCC Part 15, EAC, IEC 62040-2:2006, IEC 62040-1:2008 - Software / System Requirements
Software Included: TrippLite PowerAlert - Sustainability Information
ENERGY STAR: Yes - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 5 - 95% (non-condensing) Sound Emission: 50 dB - Dimensions & Weight
Width: 17.2 in Depth: 19.5 in Height: 3.5 in Weight: 50.93 lbs - Dimensions & Weight (Shipping)
Shipping Width: 22.2 in Shipping Depth: 27.6 in Shipping Height: 9.4 in Shipping Weight: 59.97 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121011
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121011 |
| Part# | TRP-SUINT2200LCD2U |
| MFG Part# | SUINT2200LCD2U |
| UPC | 37332183330 |
| Device Type | UPS - rack-mountable |
| UPS Technology | On-line |
| Surge Suppression | Yes |
| Type | Expandable |
| Efficiency | 95% |
