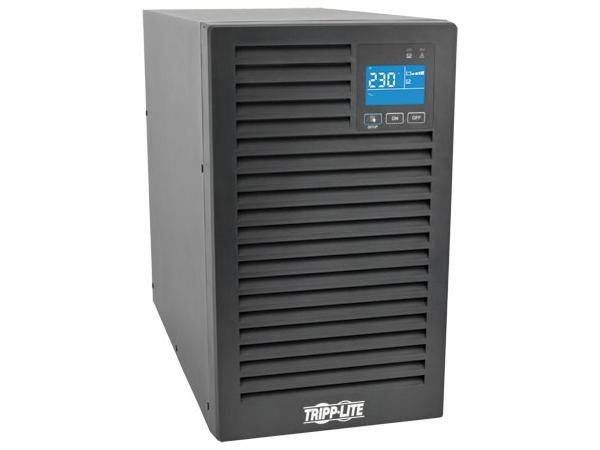

TRIPP LITE SMARTONLINE 230V 2KVA 1800W ON-LINE UPS 5789869
SKU
5789869
CA$2,757.81
SmartOnline 230V 2kVA 1800W On-Line Double-Conversion UPS, Tower, Extended Run, Network Card Options, LCD, USB, DB9
Category: UPS
- Primary Information
Product Description: Tripp Lite SmartOnline 230V 2kVA 1800W On-Line Double-Conversion - UPS - 1.8 kW - 2000 VA Device Type: UPS - external Weight: 43.1 lbs Input Wiring: 1-phase Input Voltage: AC 220/230/240 V Output Voltage: AC 220/230/240 V ± 2% Power Capacity: 1.8 kW / 2000 VA Input Connectors: 1 x power IEC 60320 C14 Output connectors: 7 x power IEC 60320 C13 (UPS and surge) Battery: Expandable Run Time (Up To): 4.7 min at full load Networking: RS-232, USB Dimensions (WxDxH): 7.5 in x 14.2 in x 12.8 in Manufacturer Warranty: 2-year warranty - General
Device Type: UPS - external - Power Device
UPS Technology: On-line Input Voltage: AC 220/230/240 V Input Voltage Range: AC 80 - 280 V Frequency Provided: 50/60 Hz Input Wiring: 1-phase Frequency Required: 50/60 Hz Input Connectors: 1 x power IEC 60320 C14 Power Output Connectors Details: 7 x power IEC 60320 C13 (UPS and surge) Output Voltage: AC 220/230/240 V ± 2% - 50/60 Hz Power Capacity: 1.8 kW / 2000 VA Output Waveform: Sinewave Surge Suppression: Yes Surge Energy Rating: 425 Joules Efficiency: 90% at 100% Load Power Factor (PF): 0.9 - Battery
Type: Expandable Voltage Provided: 48 V Run Time (Up To): 4.7 min at full load ¦ 12 min at half load Recharge Time: 5.4 hours - Networking
Remote Management Interface: RS-232, USB - Expansion / Connectivity
Interfaces: 1 x USB - 4 pin USB Type B ¦ 1 x RS-232 - 9 pin D-Sub (DB-9) Expansion Slots: 1 (total) / 1 (free) x expansion slot - Miscellaneous
Cables Included: 3 x power cable - external ¦ USB cable - external ¦ Serial cable - external Features: Audible alarm, LCD display, voltage monitoring, noise filtering, cold-start function, cooling fan, Eco-Mode Compliant Standards: IEC 61000-4-3, IEC 61000-4-5, RoHS, EN 62040-2:2006, ICE 61000-4-2, IEC 62040-1:2008, EN 62040-1:2008+A1:2013 - Software / System Requirements
Software Included: TrippLite PowerAlert - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 95% (non-condensing) Sound Emission: 50 dBA - Dimensions & Weight
Width: 7.5 in Depth: 14.2 in Height: 12.8 in Weight: 43.1 lbs - Dimensions & Weight (Shipping)
Shipping Width: 11.8 in Shipping Depth: 19.9 in Shipping Height: 17.4 in Shipping Weight: 48.94 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121011
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121011 |
| Part# | TRP-SUINT2000XLCD |
| MFG Part# | SUINT2000XLCD |
| UPC | 37332194886 |
| Device Type | UPS - external |
| UPS Technology | On-line |
| Surge Suppression | Yes |
| Type | Expandable |
| Efficiency | 90% at 100% Load |
