TRIPP LITE SMARTONLINE 3KVA D-CONV 2U INTACTV LCD 5268761
SKU
5268761
CA$5,982.60

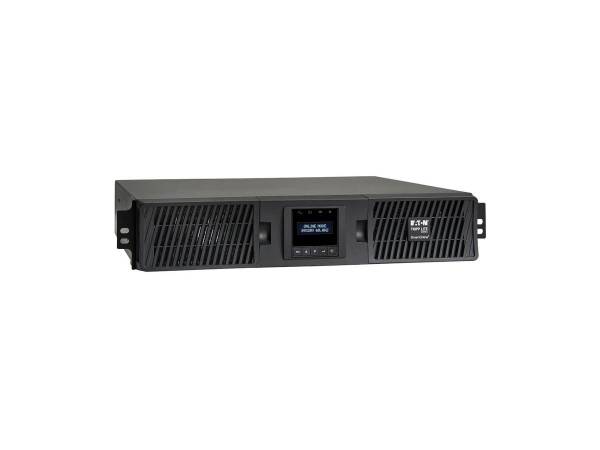

Tripp Lite series SmartOnline 3000VA 2700W 120V Double-Conversion UPS - 7 Outlets, Extended Run, Network Card Option, LCD, USB, DB9, 2U Rack/Tower
Category: UPS
- Primary Information
Product Description: Eaton Tripp Lite Series SmartOnline 3000VA 2700W 120V Double-Conversion UPS - 7 Outlets, Extended Run, Network Card Option, LCD, USB, DB9, 2U Rack/Tower Battery Backup - UPS - 2700 Watt - 3000 VA Device Type: UPS - rack-mountable Rack Size: 19" - 2U Weight: 70.55 lbs Input Voltage: AC 100/110/115/120/127 V Output Voltage: AC 100/110/115/120/127 V ± 2% Power Capacity: 2700 Watt / 3000 VA Input Connectors: 1 x power NEMA L5-30 Output connectors: 4 x power NEMA 5-15 ¦ 4 x power NEMA 5-15/20 ¦ 1 x power NEMA L5-30 Battery: Expandable Run Time (Up To): 4.1 min at full load Networking: RS-232, USB System Requirements: Apple MacOS X, Microsoft Windows Dimensions (WxDxH): 17.3 in x 25.5 in x 3.4 in Manufacturer Warranty: 2-year warranty - General
Device Type: UPS - rack-mountable Height (Rack Units): 2U Rack Size: 19" - Power Device
UPS Technology: On-line Input Voltage: AC 100/110/115/120/127 V Frequency Provided: 50/60 Hz Frequency Required: 50/60 Hz Input Connectors: 1 x power NEMA L5-30 Power Output Connectors Details: 4 x power NEMA 5-15 ¦ 4 x power NEMA 5-15/20 ¦ 1 x power NEMA L5-30 Output Voltage: AC 100/110/115/120/127 V ± 2% - 50/60 Hz Max Electric Current: 24 A Power Capacity: 2700 Watt / 3000 VA Output Waveform: Sinewave Surge Suppression: Yes Surge Energy Rating: 570 Joules Circuit Protection: Circuit breaker Efficiency: 98% - Battery
Type: Expandable Voltage Provided: 72 V Run Time (Up To): 4.1 min at full load ¦ 11.3 min at half load Recharge Time: 3 hours - Networking
Remote Management Interface: RS-232, USB - Expansion / Connectivity
Interfaces: 1 x management (USB) - 4 pin USB Type B ¦ 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x EPO (emergency power off) Expansion Slots: 1 (total) / 1 (free) x expansion slot - Miscellaneous
Cables Included: Power cable - integrated - 10 ft ¦ USB cable - external ¦ Serial cable - external ¦ EPO cable - external Rack Mounting Kit: Included Features: Audible alarm, LCD display, LED indicators, noise filtering, overvoltage protection, built-in bypass switch, undervoltage protection, cold-start function, cooling fan, automatic shut down, hot-swappable batteries, no load operation & brown-out protection Compliant Standards: CSA, UL 1778, RoHS, FCC Part 15 A - Software / System Requirements
Software Included: TrippLite PowerAlert OS Required: Apple MacOS X, Microsoft Windows - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 95% (non-condensing) Sound Emission: 50 dBA - Dimensions & Weight
Width: 17.3 in Depth: 25.5 in Height: 3.4 in Weight: 70.55 lbs - Dimensions & Weight (Shipping)
Shipping Width: 23.4 in Shipping Depth: 39.2 in Shipping Height: 8.5 in Shipping Weight: 90.39 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121011
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121011 |
| Part# | TRP-SU3000RTXLCD2U |
| MFG Part# | SU3000RTXLCD2U |
| UPC | 37332180100 |
| Device Type | UPS - rack-mountable |
| UPS Technology | On-line |
| Surge Suppression | Yes |
| Type | Expandable |
| Efficiency | 98% |
| Circuit Protection | Circuit breaker |
