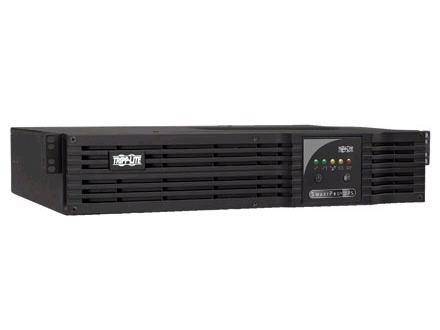

TRIPP LITE SMARTPRO 1000VA 120V RM-2U UPS 6 OTLTS 3954601
SKU
3954601
CA$1,694.16
Only 2 left
SmartPro 120V 1kVA 800W Line-Interactive Sine Wave UPS, 2U Rack/Tower, Network Card Options, LCD, USB, DB9, 6 Outlets
Category: UPS
- Primary Information
Product Description: Tripp Lite SmartPro - UPS - LCD display - 800 Watt - 1000 VA Device Type: UPS - rack-mountable / external Rack Size: 2U Weight: 35.41 lbs Input Wiring: 1-phase Input Voltage: AC 120 V Output Voltage: AC 120 V ± 5% Power Capacity: 800 Watt / 1000 VA Input Connectors: 1 x power NEMA 5-15P Output connectors: 4 x power NEMA 5-15R (UPS and surge) ¦ 2 x power NEMA 5-15R Run Time (Up To): 5.3 min at full load Networking: RS-232, USB Dimensions (WxDxH): 17.4 in x 12.5 in x 3.5 in Environmental Standards: ENERGY STAR Manufacturer Warranty: 3-year warranty with product registration - General
Device Type: UPS - rack-mountable / external Height (Rack Units): 2U - Power Device
UPS Technology: Line interactive Input Voltage: AC 120 V Input Voltage Range: AC 83 - 147 V Frequency Provided: 60 Hz Input Wiring: 1-phase Input Connectors: 1 x power NEMA 5-15P Power Output Connectors Details: 4 x power NEMA 5-15R (UPS and surge) ¦ 2 x power NEMA 5-15R Output Voltage: AC 120 V ± 5% - 60 Hz Power Capacity: 800 Watt / 1000 VA Output Waveform: Sinewave Surge Suppression: Yes Surge Energy Rating: 570 Joules Circuit Protection: Circuit breaker Efficiency: 95% Power Factor (PF): 0.8 - Battery
Voltage Provided: DC 24 V Run Time (Up To): 5.3 min at full load ¦ 15 min at half load Recharge Time: 4 hours Transfer Time: 4 ms Features: Valve-regulated - Networking
Remote Management Interface: RS-232, USB - Expansion / Connectivity
Interfaces: 1 x USB - 4 pin USB Type B ¦ 1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x EPO (emergency power off) - RJ-11 Expansion Slots: 1 (total) / 1 (free) x expansion slot - Miscellaneous
Cables Included: Power cable - integrated - 10 ft ¦ USB cable ¦ RS232 cable Rack Mounting Kit: Included Equipment Protection Value: 250000 US Dollars Features: Tower mountable, hot-swappable battery, EMI filtering, RFI filtering, steel housing, VMware Ready, back panel grounding lug, pure sinewave output, Automatic Voltage Regulation (AVR), overvoltage correction, undervoltage correction, rotatable LCD panel, cooling fan, cold-start function, VRLA battery support, battery backup capability, audible alarm, remote ON/OFF function, emergency power off, Auto Probe Compliant Standards: CSA, Mexico NOM, FCC Part 15 Class B (USA), RoHS, UL 1778 - Software / System Requirements
Software Included: TrippLite PowerAlert - Sustainability Information
ENERGY STAR: Yes - Manufacturer Warranty
Service & Support: Limited warranty - 3 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 95% (non-condensing) Sound Emission: 45 dB - Dimensions & Weight
Width: 17.4 in Depth: 12.5 in Height: 3.5 in Weight: 35.41 lbs - Dimensions & Weight (Shipping)
Shipping Width: 22.9 in Shipping Depth: 18.6 in Shipping Height: 8.8 in Shipping Weight: 45.79 lbs - Special Feature
COO: CHINA - UNSPSC Code
UNSPSC Code: 39121011
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121011 |
| Part# | TRP-SMART1000RM2U |
| MFG Part# | SMART1000RM2U |
| UPC | 37332118806 |
| Device Type | UPS - rack-mountable / external |
| UPS Technology | Line interactive |
| Surge Suppression | Yes |
| Efficiency | 95% |
| Circuit Protection | Circuit breaker |
