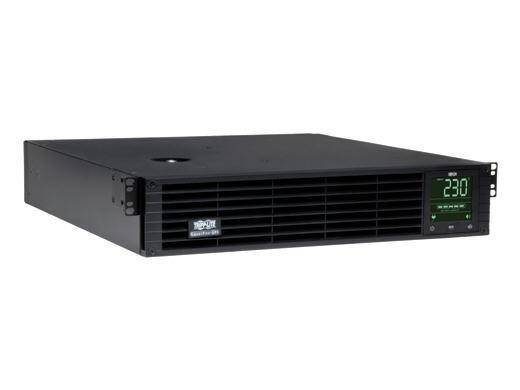

Product Description: | Eaton Tripp Lite Series UPS SmartPro 3000VA 3000W 208V Line-Interactive Sine Wave Battery Backup - UPS - 3000 Watt - 3000 VA |
Device Type: | UPS - rack-mountable |
Rack Size: | 2U |
Weight: | 62.83 lbs |
Input Voltage: | AC 230 V |
Output Voltage: | AC 230 V ± 5% |
Power Capacity: | 3000 Watt / 3000 VA |
Input Connectors: | Power IEC 60320 C20 |
Output connectors: | 8 x power IEC 60320 C13 ¦ 1 x power IEC 60320 C19 |
Run Time (Up To): | 3.9 min at full load |
Dimensions (WxDxH): | 17.5 in x 19.5 in x 3.5 in |
Manufacturer Warranty: | 2-year warranty |
Device Type: | UPS - rack-mountable |
Height (Rack Units): | 2U |
UPS Technology: | Line interactive |
Input Voltage: | AC 230 V |
Input Voltage Range (Adjustable): | AC 158 - 278 V |
Frequency Provided: | 50/60 Hz |
Input Connectors: | Power IEC 60320 C20 |
Power Output Connectors Details: | 8 x power IEC 60320 C13 ¦ 1 x power IEC 60320 C19 |
Output Voltage: | AC 230 V ± 5% - 50/60 Hz |
Power Capacity: | 3000 Watt / 3000 VA |
Output Waveform: | Sinewave |
Surge Suppression: | Yes |
Surge Energy Rating: | 350 Joules |
Run Time (Up To): | 3.9 min at full load ¦ 11.1 min at half load |
Recharge Time: | 5 hour(s) |
Transfer Time: | 6 ms |
Interfaces: | 2 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 2 x USB - 4 pin USB Type B |
Expansion Slots: | 1 (total) / 1 (free) x expansion slot |
Cables Included: | 3 x power cable |
Features: | Audible alarm, emergency power off, overvoltage protection, undervoltage protection, hot-swappable batteries |
Compliant Standards: | GOST, IEC 62040-1-1, IEC 62040-2, RoHS |
Software Included: | TrippLite PowerAlert |
Service & Support: | Limited warranty - 2 years |
Min Operating Temperature: | 32 °F |
Max Operating Temperature: | 104 °F |
Humidity Range Operating: | 0 - 95% (non-condensing) |
Width: | 17.5 in |
Depth: | 19.5 in |
Height: | 3.5 in |
Weight: | 62.83 lbs |
Shipping Width: | 23.7 in |
Shipping Depth: | 20.5 in |
Shipping Height: | 9 in |
Shipping Weight: | 72.75 lbs |
COO: | CHINA |
UNSPSC Code: | 39121011 |
BRANDS | TRIPP LITE |
---|---|
UNSPSC | 39121011 |
Part# | TRP-SMX3000XLRT2UA |
MFG Part# | SMX3000XLRT2UA |
UPC | 37332181381 |
Device Type | UPS - rack-mountable |
UPS Technology | Line interactive |
Surge Suppression | Yes |
