TRIPP LITE SMARTPRO 5KVA LINEWAVE UPS6U EPO208+120V 5318153
SKU
5318153
CA$10,941.78

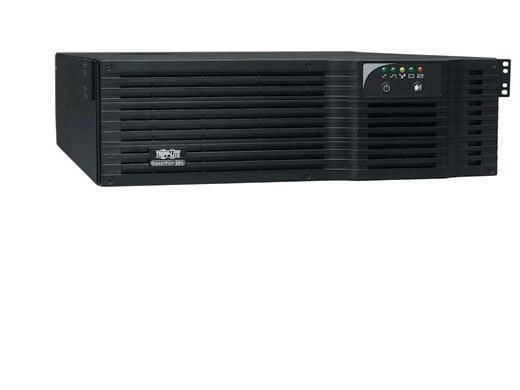

SmartPro 5kVA Line Interactive Sine Wave UPS Extended-run & SNMPWEBCARD options 6U RackTower USB Serial EPO 208+120V
Category: UPS
- Primary Information
Product Description: Tripp Lite UPS Smart 5000VA 4000W Rackmount AVR 208V/120V Pure Sign Wave 5kVA USB DB9 6URM - UPS - 4 kW - 5000 VA Device Type: UPS - rack-mountable Rack Size: 6U Weight: 228.18 lbs Load Rating: Small LAN / file server Input Voltage: AC 208 V Output Voltage: AC 120/208 V Power Capacity: 4 kW / 5000 VA Input Connectors: 1 x power NEMA L6-30 Output connectors: 10 x power NEMA 5-15 ¦ 2 x power NEMA 5-20 ¦ 1 x power NEMA L6-30 ¦ 1 x power NEMA L14-30 Battery Form Factor: Rack-mountable Run Time (Up To): 16 min at full load Color: Black Dimensions (WxDxH): 35 in x 45.3 in x 10.5 in Manufacturer Warranty: 2-year warranty - General
Device Type: UPS - rack-mountable Battery Enclosure Type: Rack-mountable Height (Rack Units): 6U Color: Black - Power Device
Load Rating: Small LAN / file server UPS Technology: Line interactive Input Voltage: AC 208 V Frequency Provided: 60 Hz Frequency Required: 60 Hz Input Connectors: 1 x power NEMA L6-30 Power Output Connectors Details: 10 x power NEMA 5-15 ¦ 2 x power NEMA 5-20 ¦ 1 x power NEMA L6-30 ¦ 1 x power NEMA L14-30 Output Voltage: AC 120/208 V 60 Hz Power Capacity: 4 kW / 5000 VA Output Waveform: Sinewave Surge Suppression: Yes Surge Response Time: 0 ms Surge Energy Rating: 1800 Joules Circuit Protection: Circuit breaker - Battery
Run Time (Up To): 16 min at full load Recharge Time: 4 hours - Expansion / Connectivity
Interfaces: 2 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 2 x USB - 4 pin USB Type B Expansion Slots: 1 (total) / 1 (free) x expansion slot - Miscellaneous
Cables Included: 2 x USB cable - external ¦ 2 x serial cable - external ¦ Power cable - external - 10 ft Rack Mounting Kit: Included Equipment Protection Value: 250000 US Dollars Features: Audible alarm Compliant Standards: FCC Class A certified, cUL, NOM, UL 1778 - Software / System Requirements
Software Included: Drivers & Utilities, TrippLite PowerAlert - Manufacturer Warranty
Service & Support: Limited warranty - parts and labor - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Min Storage Temperature: 5 °F Max Storage Temperature: 122 °F Humidity Range Operating: 0 - 95% - Dimensions & Weight
Width: 35 in Depth: 45.3 in Height: 10.5 in Weight: 228.18 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121011
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121011 |
| Part# | TRP-SMART5000RT-3U |
| MFG Part# | SMART5000RT-3U |
| UPC | 37332099242 |
| Device Type | UPS - rack-mountable |
| UPS Technology | Line interactive |
| Surge Suppression | Yes |
| Load Rating | Small LAN / file server |
| Color | Black |
| Circuit Protection | Circuit breaker |
