TRIPP LITE SMARTPRO UPS, LITHIUM BATTERY BACKUP 6242686
SKU
6242686
CA$3,606.07

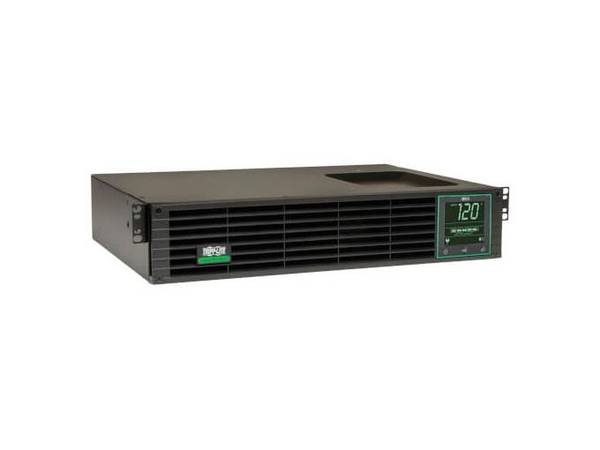

SmartPro UPS, Lithium Battery Backup - 120V, 1kVA, 800W, Line Interactive, 2U, Sine Wave, LCD, 6 Outlets - DB9 Serial, USB - 5-15P - (6) 5-15R - 5-year limited warranty
Category: UPS
- Primary Information
Product Description: Tripp Lite 1000VA 800W UPS Smart Lithium Ion LiFePO4 AVR LCD USB DB9 2URM - UPS - 800 Watt - 1000 VA - Li Device Type: UPS - rack-mountable Rack Size: 19" - 2U Weight: 16.29 lbs Input Wiring: 1-phase Input Voltage: AC 120 V Output Voltage: AC 120 V ± 5% Power Capacity: 800 Watt / 1000 VA Input Connectors: 1 x power NEMA 5-15P Output connectors: 6 x power NEMA 5-15R - 120 V Battery: Lithium Run Time (Up To): 8.3 min at full load Networking: RS-232, USB Remote Management Protocol: SNMP Dimensions (WxDxH): 17.4 in x 12.5 in x 3.5 in Environmental Standards: ENERGY STAR Manufacturer Warranty: 5-year warranty - General
Device Type: UPS - rack-mountable Height (Rack Units): 2U Rack Size: 19" - Power Device
UPS Technology: Line interactive Input Voltage: AC 120 V Input Voltage Range: AC 83 - 145 V Frequency Provided: 60 Hz Input Wiring: 1-phase Input Connectors: 1 x power NEMA 5-15P Power Output Connectors Details: 6 x power NEMA 5-15R - 120 V Output Voltage: AC 120 V ± 5% - 60 Hz Power Capacity: 800 Watt / 1000 VA Output Waveform: Sinewave Surge Suppression: Yes Surge Energy Rating: 570 Joules Circuit Protection: Circuit breaker Efficiency: 95% at 100% Load Power Factor (PF): 0.8 - Battery
Technology: Lithium Voltage Provided: 48 V Run Time (Up To): 8.3 min at full load ¦ 20 min at half load Recharge Time: 2.7 hours Transfer Time: 5 ms - Networking
Remote Management Interface: RS-232, USB Remote Management Protocol: SNMP - Expansion / Connectivity
Interfaces: 1 x EPO (emergency power off) ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x management (RS-232) - Miscellaneous
Cables Included: Power cable 10 ft ¦ USB cable - external ¦ Serial cable - external ¦ EPO cable - external Rack Mounting Kit: Included Equipment Protection Value: 250000 US Dollars Features: Audible alarm, LCD display, Automatic Voltage Regulation (AVR), noise filtering, cold-start function, cooling fan, hot-swappable batteries, overvoltage correction, undervoltage correction, switched Compliant Standards: RoHS, FCC Part 15 A, EMI, CSA C22.2 No. 107.3.14, NOM, UL 1778 5th edition - Software / System Requirements
Software Included: TrippLite PowerAlert (free download) - Sustainability Information
ENERGY STAR: Yes - Manufacturer Warranty
Service & Support: Limited warranty - 5 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 95% (non-condensing) Sound Emission: 45.5 dBA - Dimensions & Weight
Width: 17.4 in Depth: 12.5 in Height: 3.5 in Weight: 16.29 lbs - Dimensions & Weight (Shipping)
Shipping Width: 23.7 in Shipping Depth: 20.2 in Shipping Height: 8.8 in Shipping Weight: 22.8 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121011
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121011 |
| Part# | TRP-SMART1000RM2UL |
| MFG Part# | SMART1000RM2UL |
| UPC | 37332213099 |
| Device Type | UPS - rack-mountable |
| UPS Technology | Line interactive |
| Surge Suppression | Yes |
| Efficiency | 95% at 100% Load |
| Circuit Protection | Circuit breaker |
| Remote Management Protocol | SNMP |
