TRIPP LITE SWITCH 16-PORT DISPLAYPORT KVM 4K 60HZ 6770962
SKU
6770962
CA$3,760.68
Only 2 left

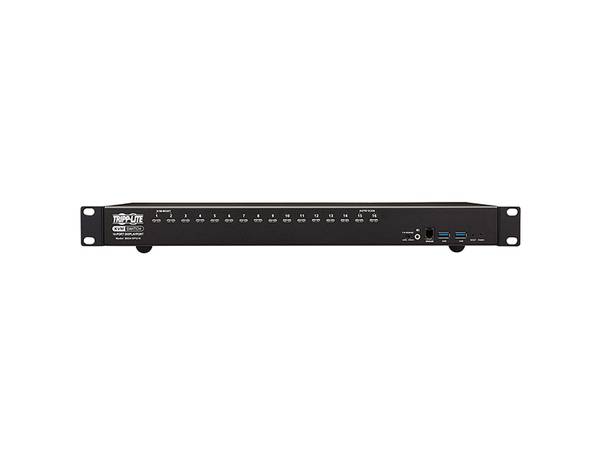

16-Port DisplayPort/USB KVM Switch with Audio/Video and USB Peripheral Sharing, 4K 60 Hz, 1U Rack-Mount
Category: KVM Switch & AV Splitters
- Primary Information
Product Description: Tripp Lite DisplayPort/USB KVM Switch 16-Port with Audio/Video and USB Peripheral Sharing, 4K 60 Hz, 1U Rack-Mount - KVM / audio / USB switch - 16 ports - rack-mountable Device Type: KVM / audio / USB switch - 16 ports - cascadable Enclosure Type: Rack-mountable 1U Subtype: KVM Ports: 16 x KVM / audio / USB KVM Users Qty: 1 local user Features: 2.1 channel audio support Power: AC 100-240 V (50/60 Hz) Dimensions (WxDxH): 17 in x 8.4 in x 1.7 in Weight: 6.86 lbs Color: Black Manufacturer Warranty: 1-year warranty - General
Device Type: KVM / audio / USB switch - 16 ports - cascadable Enclosure Type: Rack-mountable 1U Subtype: KVM Ports: 16 x KVM / audio / USB KVM Local Users Qty: 1 local user Keyboard / Mouse Interface: USB Max Resolution: 4096 x 2160 @ 60 Hz Features: 2.1 channel audio support - Expansion / Connectivity
Interfaces: 16 x DisplayPort input ¦ 16 x keyboard (USB) / mouse (USB) Type B ¦ 16 x audio mini-jack ¦ 1 x DisplayPort output ¦ 1 x console (audio) mini-jack ¦ 1 x mouse (USB) Type A ¦ 1 x keyboard (USB) Type A ¦ 2 x console (USB) Type A ¦ 2 x USB 3.0 Type A ¦ 1 x audio mini-jack - Power
Power Device: External power adapter Power Provided: 12 V - 1.4 A Voltage Required: AC 100-240 V (50/60 Hz) Power Consumption Operational: 18.44 Watt - Miscellaneous
Color: Black Included Accessories: 4 rubber feet, 19" rack mounting kit Cables Included: 1 x power cable (C13-C14) - 4 ft ¦ 2 x DisplayPort 1.4 cable - 5 ft ¦ 2 x USB-B to USB-A cable - 6 ft ¦ 2 x audio cable - 6 ft ¦ 1 x firmware upgrade cable - 6 ft Rack Mounting Kit: Included Compliant Standards: CCC, China RoHS, GS, LPS, PSE Mark, RoHS, TUV, UL, WEEE, cUL, NOM, REACH, DisplayPort 1.2, HDCP 2.2 - Dimensions & Weight
Width: 17 in Depth: 8.4 in Height: 1.7 in Weight: 6.86 lbs - Dimensions & Weight (Shipping)
Shipping Width: 19.5 in Shipping Depth: 12.8 in Shipping Height: 5.2 in Shipping Weight: 11.71 lbs - Manufacturer Warranty
Service & Support: Limited warranty - 1 year - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 80% (non-condensing) Min Storage Temperature: -4 °F Max Storage Temperature: 140 °F - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43211604
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 43211604 |
| Part# | TRP-B024-DPU16 |
| MFG Part# | B024-DPU16 |
| UPC | 37332263711 |
| Max Resolution | 4096 x 2160 @ 60 Hz |
| Device Type | KVM / audio / USB switch - 16 ports - cascadable |
| Color | Black |
| Enclosure Type | Rack-mountable 1U |
