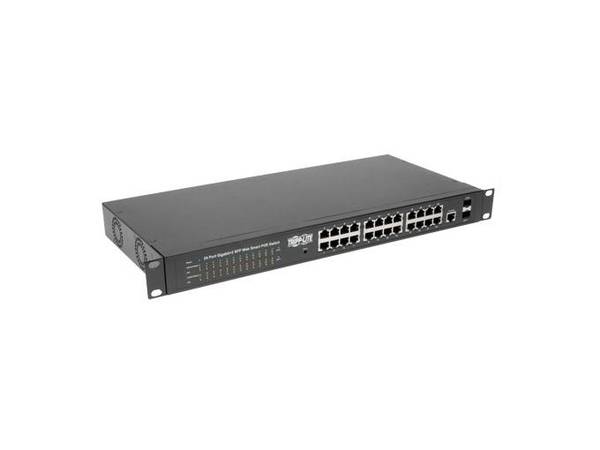

Product Description: | Tripp Lite 24 10/100/1000Mbps Port Gigabit L2 Web-Smart Managed PoE+ Switch, 2 Dedicated Gigabit SFP Slots, 52 Gbps, Web Interface - switch - 26 ports - smart - rack-mountable |
Device Type: | Switch - 26 ports - smart |
Enclosure Type: | Rack-mountable 1U |
Subtype: | Gigabit Ethernet |
Ports: | 24 x 10/100/1000 (PoE+) + 2 x Gigabit SFP |
Power Over Ethernet (PoE): | PoE+ |
PoE Budget: | 300 W |
Performance: | Switching capacity: 52 Gbps |
MAC Address Table Size: | 8000 entries |
Jumbo Frame Support: | 9KB |
Remote Management Protocol: | SNMP, RMON |
Features: | Flow control, VPN support, auto-negotiation, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), fanless, Port Security, tagged VLAN, 802.1x authentication, crossover detection, metal housing, Storm Control, IP/Mac/Port Binding (IPMB) |
Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.1x, IEEE 802.3at |
Power: | AC 100 - 240 V |
Dimensions (WxDxH): | 17.3 in x 8.2 in x 1.7 in |
Weight: | 6.83 lbs |
Color: | Black |
Manufacturer Warranty: | 5-year warranty |
Device Type: | Switch - 26 ports - smart |
Enclosure Type: | Rack-mountable 1U |
Subtype: | Gigabit Ethernet |
Ports: | 24 x 10/100/1000 (PoE+) + 2 x Gigabit SFP |
Power Over Ethernet (PoE): | PoE+ |
PoE Budget: | 300 W |
Performance: | Switching capacity: 52 Gbps |
MAC Address Table Size: | 8000 entries |
Jumbo Frame Support: | 9KB |
Remote Management Protocol: | SNMP, RMON |
Features: | Flow control, VPN support, auto-negotiation, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), fanless, Port Security, tagged VLAN, 802.1x authentication, crossover detection, metal housing, Storm Control, IP/Mac/Port Binding (IPMB) |
Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.1x, IEEE 802.3at |
Status Indicators: | Port status, power, PoE, SFP |
Interfaces: | 24 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 2 x Gigabit LAN SFP |
Voltage Required: | AC 100 - 240 V |
Power Consumption Operational: | 450 Watt |
Color: | Black |
Included Accessories: | 4 rubber feet |
Rack Mounting Kit: | Included |
Compliant Standards: | Plug and Play, FCC Class A certified, RoHS, UL 60950-1:2007 Second Edition, CAN/CSA C22.2 No. 60950-1-07 Second Edition 2014-10 |
Width: | 17.3 in |
Depth: | 8.2 in |
Height: | 1.7 in |
Weight: | 6.83 lbs |
Service & Support: | Limited warranty - 5 years |
Min Operating Temperature: | 32 °F |
Max Operating Temperature: | 104 °F |
Humidity Range Operating: | 10 - 90% (non-condensing) |
Min Storage Temperature: | -40 °F |
Max Storage Temperature: | 158 °F |
COO: | Inquire |
TAA compliance: | Inquire |
UNSPSC Code: | 43222612 |
BRANDS | TRIPP LITE |
---|---|
UNSPSC | 43222612 |
Part# | TRP-NGS24C2POE |
MFG Part# | NGS24C2POE |
UPC | 37332194862 |
Device Type | Switch - 26 ports - smart |
Color | Black |
Enclosure Type | Rack-mountable 1U |
Remote Management Protocol | RMON, SNMP |
