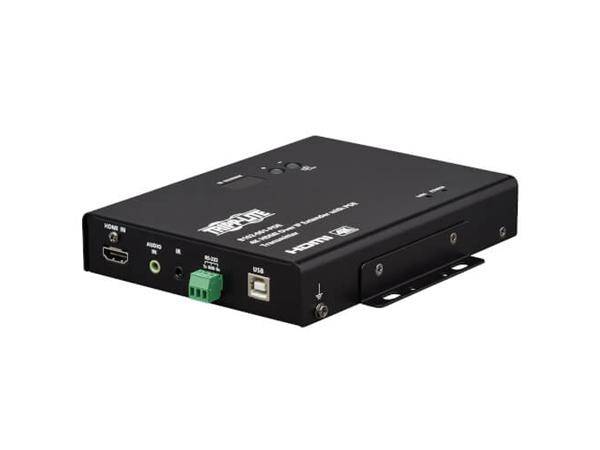

TRIPP LITE TRANSMITTER 4K HDMI OVER IP EXTENDER POE 6770966
SKU
6770966
Category: AV Accessories
- Primary Information
Product Description: Tripp Lite HDMI over IP Extender Transmitter - 4K, 4:4:4, PoE, 328 ft. (100 m) - video/audio/USB/network extender - HDMI Device Type: Video/audio/USB/network extender (transmitter) Form Factor: Rack-mountable Data Link Protocol: HDMI Transmission Medium: CAT 5/5e/6 Max Transfer Distance: 328 ft Power Over Ethernet (PoE): PoE Power: AC 100-240 V Dimensions (WxDxH): 6.7 in x 5 in x 1.1 in Weight: 23.63 oz Manufacturer Warranty: 1-year warranty - General
Device Type: Video/audio/USB/network extender (transmitter) Form Factor: Rack-mountable - Networking
Connectivity Technology: Wired Data Link Protocol: HDMI Max Resolution: 4096 x 2160 / 3840 x 2160 @ 60 Hz Max Transfer Distance: 328 ft Status Indicators: Power, connection status Features: 36-bit Deep Color support, EDID Management, metal housing - Expansion / Connectivity
Interfaces: 1 x HDMI - 19 pin HDMI Type A female ¦ 2 x network - RJ-45 female ¦ 2 x RS-232/IR - mini jack female ¦ 2 x USB - Type A female - Miscellaneous
Included Accessories: RS-232 terminal block, 4 foot pads Mounting Kit: Included Rack Mounting Kit: Included Compliant Standards: FCC, PSE Mark, RoHS, UL, WEEE, HDCP 1.4, REACH, NOM - Power
Power Over Ethernet (PoE): PoE Power Device: External power adapter Voltage Required: AC 100-240 V (50/60 Hz) Power Consumption Operational: 4.36 Watt - Dimensions & Weight
Width: 6.7 in Depth: 5 in Height: 1.1 in Weight: 23.63 oz - Dimensions & Weight (Shipping)
Shipping Width: 2.4 in Shipping Depth: 11.1 in Shipping Height: 6.8 in Shipping Weight: 31.74 oz - Manufacturer Warranty
Service & Support: Limited warranty - 1 year - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 80% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 52161600
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 52161600 |
| Part# | TRP-B162-001-POE |
| MFG Part# | B162-001-POE |
| UPC | 37332263810 |
| Max Transfer Distance | 328 ft |
| Max Resolution | 4096 x 2160 / 3840 x 2160 @ 60 Hz |
| Device Type | Video/audio/USB/network extender (transmitter) |
| Connectivity Technology | Wired |
| Form Factor | Rack-mountable |
| Data Link Protocol | HDMI |
