TRIPP LITE UPS 120V 1000VA 900W DOUBLE-CONVERSION 6555330
SKU
6555330
CA$3,338.40

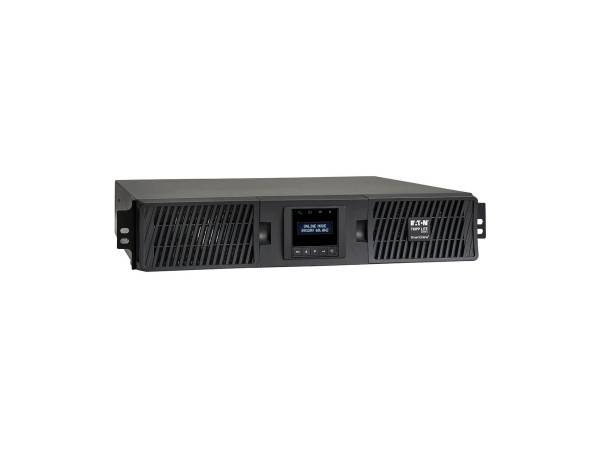

Tripp Lite series SmartOnline 1000VA 900W 120V Double-Conversion UPS - 8 Outlets, Extended Run, Network Card Included, LCD, USB, DB9, 2U Rack/Tower
Category: UPS
- Primary Information
Product Description: Eaton Tripp Lite Series SmartOnline 1000VA 900W 120V Double-Conversion UPS - 8 Outlets, Extended Run, Network Card Included, LCD, USB, DB9, 2U Rack/Tower Battery Backup - UPS - 900 Watt - 1000 VA Device Type: UPS - rack-mountable Rack Size: 19" - 2U Weight: 28.99 lbs Input Wiring: 1-phase Input Voltage: AC 100/110/115/120/127 V Output Voltage: AC 100/110/115/120/127 V ± 2% Power Capacity: 900 Watt / 1000 VA Input Connectors: 1 x power NEMA 5-15P Output connectors: 6 x power NEMA 5-15R Battery: Expandable Run Time (Up To): 4.8 min at full load Networking: USB, RS-232 Included Accessories: Network interface card (WEBCARDLX) Dimensions (WxDxH): 17.5 in x 12.5 in x 3.5 in Environmental Standards: ENERGY STAR Manufacturer Warranty: 2-year warranty - General
Device Type: UPS - rack-mountable Height (Rack Units): 2U Rack Size: 19" - Power Device
UPS Technology: On-line Input Voltage: AC 100/110/115/120/127 V Frequency Provided: 50/60 Hz Input Wiring: 1-phase Input Connectors: 1 x power NEMA 5-15P Power Output Connectors Details: 6 x power NEMA 5-15R Output Voltage: AC 100/110/115/120/127 V ± 2% - 50/60 Hz Max Electric Current: 15 A Power Capacity: 900 Watt / 1000 VA Dataline Surge Protection: Network/phone line - 1 input line / 1 output line Output Waveform: Sinewave Surge Suppression: Yes Surge Energy Rating: 570 Joules Circuit Protection: Circuit breaker Efficiency: 93% at 100% Load Power Factor (PF): 0.9 - Battery
Type: Expandable Voltage Provided: 24 V Run Time (Up To): 4.8 min at full load ¦ 14 min at half load Recharge Time: 3 hour(s) Transfer Time: 0 ms - Networking
Remote Management Interface: USB, RS-232 - Expansion / Connectivity
Interfaces: 1 x management (USB) - 4 pin USB Type B ¦ 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x EPO (emergency power off) Expansion Slots: 1 (total) / 0 (free) x expansion slot - Miscellaneous
Included Accessories: Network interface card (WEBCARDLX) Cables Included: USB cable - external ¦ Serial cable - external ¦ EPO cable - external Rack Mounting Kit: Included Equipment Protection Value: 250000 US Dollars Features: 2 post rack mountable, LCD display, double conversion, Human Interface Device (HID) support, 2 switchable sockets, audible alarm, cold-start function, overload protection, noise suppression, overvoltage correction, undervoltage correction, cooling fan, automatic inverter bypass Compliant Standards: RoHS, FCC Part 15 B, CSA, NOM, UL 1778, EMI - Sustainability Information
ENERGY STAR: Yes - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 95% (non-condensing) Sound Emission: 50 dBA - Dimensions & Weight
Width: 17.5 in Depth: 12.5 in Height: 3.5 in Weight: 28.99 lbs - Dimensions & Weight (Shipping)
Shipping Width: 23.3 in Shipping Depth: 19.3 in Shipping Height: 9.2 in - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121011
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121011 |
| Part# | TRP-SU1000RTXLCD2UN |
| MFG Part# | SU1000RTXLCD2UN |
| UPC | 37332253545 |
| Device Type | UPS - rack-mountable |
| UPS Technology | On-line |
| Surge Suppression | Yes |
| Type | Expandable |
| Efficiency | 93% at 100% Load |
| Circuit Protection | Circuit breaker |
