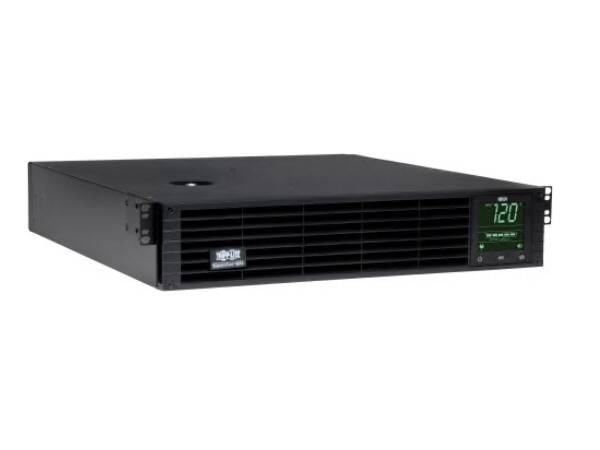

TRIPP LITE UPS 2200VA SMART WEBCARDLX LCD AVR 2URM 6574158
SKU
6574158
CA$4,622.28
SM2200RMXL2UPN - UPS - line-interactive - 120V - 1.92KW - 2200VA - 16A - (4) 5-15R; (4) 5-15/20R - 2-year warranty, 3 year with registration - Protects equipment against blackouts, brownouts, overvoltages, surges and line noise. Keeps AC power running during blackouts to allow time for file saves and safe shutdown
Category: UPS
- Primary Information
Product Description: Tripp Lite SmartPro UPS Smart Rackmount 2200VA 1920W WEBCARDLX LCD AVR 120V USB 2URM - UPS - 1920 Watt - 2200 VA Device Type: UPS - rack-mountable Rack Size: 19" - 2U Weight: 64 lbs Input Wiring: 1-phase Input Voltage: AC 120 V Output Voltage: AC 110/115/120 V ± 5% Power Capacity: 1920 Watt / 2200 VA Input Connectors: 1 x power NEMA 5-20P Output connectors: 4 x power NEMA 5-15R ¦ 4 x power NEMA 5-15/20R Battery: Expandable Run Time (Up To): 4.5 min at full load Networking: RS-232, USB Included Accessories: Network interface card (WEBCARDLX) Dimensions (WxDxH): 17.5 in x 19 in x 3.5 in Manufacturer Warranty: 2-year warranty - General
Device Type: UPS - rack-mountable Height (Rack Units): 2U Rack Size: 19" - Power Device
UPS Technology: Line interactive Input Voltage: AC 120 V Frequency Provided: 60 Hz Input Wiring: 1-phase Frequency Required: 50/60 Hz Input Connectors: 1 x power NEMA 5-20P Power Output Connectors Details: 4 x power NEMA 5-15R ¦ 4 x power NEMA 5-15/20R Output Voltage: AC 110/115/120 V ± 5% - 60 Hz Max Electric Current: 16 A Power Capacity: 1920 Watt / 2200 VA Output Waveform: Sinewave Surge Suppression: Yes Surge Energy Rating: 570 Joules Efficiency: 96% AC mode Power Factor (PF): 0.87 - Battery
Type: Expandable Voltage Provided: DC 48 V Run Time (Up To): 4.5 min at full load ¦ 12 min at half load Recharge Time: 4.5 hours Features: Hot-swappable - Networking
Remote Management Interface: RS-232, USB - Expansion / Connectivity
Interfaces: 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (USB) - Miscellaneous
Included Accessories: Network interface card (WEBCARDLX) Cables Included: Power cable 10 ft ¦ USB cable ¦ Serial cable ¦ EPO cable Rack Mounting Kit: Included Equipment Protection Value: 250000 US Dollars Features: LCD display, 4 post, brown-out protection, black-out protection, overvoltage protection, noise suppression, LCD display, Automatic Voltage Regulation (AVR), undervoltage protection, audible alarm, cold-start function, cooling fan Compliant Standards: CSA, UL 1778, NOM, FCC Part 15 A - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 95% (non-condensing) Sound Emission: 45 dBA - Dimensions & Weight
Width: 17.5 in Depth: 19 in Height: 3.5 in Weight: 64 lbs - Dimensions & Weight (Shipping)
Shipping Width: 21.7 in Shipping Depth: 24 in Shipping Height: 8.8 in Shipping Weight: 80 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121011
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121011 |
| Part# | TRP-SM2200RMXL2UPN |
| MFG Part# | SM2200RMXL2UPN |
| UPC | 37332257819 |
| Device Type | UPS - rack-mountable |
| UPS Technology | Line interactive |
| Surge Suppression | Yes |
| Type | Expandable |
| Efficiency | 96% AC mode |
