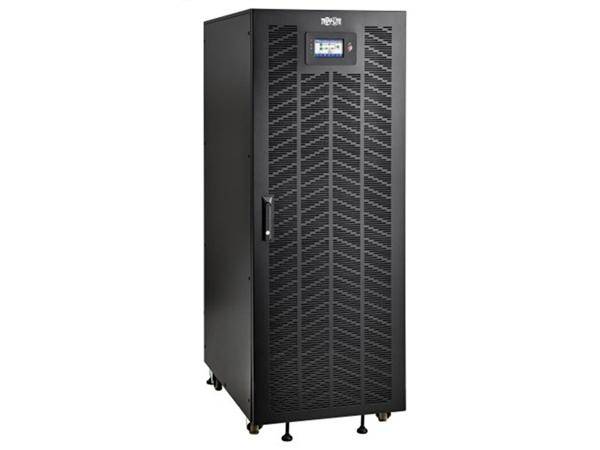

Product Description: | Eaton Tripp Lite Series 3-Phase 208/220/120/127V 100kVA/kW Double-Conversion UPS - Unity PF, External Batteries Required - UPS - 100 kW - 100000 VA |
Device Type: | UPS - active Power Factor Correction (PFC) - external |
Input Wiring: | 3-phase WYE (star) |
Input Voltage: | AC 120/127/208/220 V |
Output Voltage: | AC 120/127/208/220 V |
Power Capacity: | 100 kW / 100000 VA |
Input Connectors: | Hardwire 4-wire |
Output connectors: | Hardwire |
Battery: | No battery - expandable |
Networking: | USB, RS-232, serial |
Remote Management Protocol: | SSH, HTTP, SNMP, Telnet |
Included Accessories: | Dry contact connector |
Dimensions (WxDxH): | 23.6 in x 33.5 in x 63 in |
Environmental Standards: | ENERGY STAR |
Manufacturer Warranty: | 2-year warranty |
Designed For: | P/N: W09L-BW1-247, W09L-BW1-247-1B, W09L-EW1-247-1B, W09L-SCBAS1-1B, W09L-SCENH1-1B |
Device Type: | UPS - active Power Factor Correction (PFC) - external |
UPS Technology: | On-line |
Input Voltage: | AC 120/127/208/220 V |
Frequency Provided: | 50/60 Hz |
Input Wiring: | 3-phase WYE (star) |
Input Connectors: | Hardwire 4-wire |
Power Output Connectors Details: | Hardwire |
Output Voltage: | AC 120/127/208/220 V 50/60 Hz |
Power Capacity: | 100 kW / 100000 VA |
Output Waveform: | Sinewave |
Surge Suppression: | Yes |
Surge Response Time: | 0 ms |
Circuit Protection: | Circuit breaker |
Efficiency: | 93% at 100% Load, 98.5% Eco mode |
Power Factor (PF): | 0.99 |
Total Harmonic Distortion (THD): | 3 % |
Type: | No battery expandable |
Remote Management Interface: | USB, RS-232, serial |
Remote Management Protocol: | SSH, HTTP, SNMP, Telnet |
Interfaces: | 1 x serial - 9 pin D-Sub (DB-9) ¦ 1 x EPO (emergency power off) ¦ RS-232 ¦ USB ¦ USB |
Included Accessories: | Dry contact connector |
Cables Included: | RS-232 cable 5 ft ¦ Parallel cable 5 ft ¦ USB cable 5 ft |
Features: | Integrated electrical grounding, LCD display, Remote Emergency Power Off (REPO), noise suppression, cold-start function, energy saving green topology, double conversion, audible alarm, overvoltage correction, undervoltage correction, cooling fan, LED indicators, DSP technology, Unity Power Factor |
Compliant Standards: | FCC Part 15 A, CSA, RETIE, UL 1778 |
ENERGY STAR: | Yes |
Service & Support: | Limited warranty - 2 years |
Min Operating Temperature: | 32 °F |
Max Operating Temperature: | 104 °F |
Humidity Range Operating: | 95% (non-condensing) |
Sound Emission: | 75.6 dBA |
Width: | 23.6 in |
Depth: | 33.5 in |
Height: | 63 in |
Shipping Width: | 28.1 in |
Shipping Depth: | 38 in |
Shipping Height: | 70.5 in |
Shipping Weight: | 785.5 lbs |
Designed For: | P/N: W09L-BW1-247, W09L-BW1-247-1B, W09L-EW1-247-1B, W09L-SCBAS1-1B, W09L-SCENH1-1B |
COO: | Inquire |
TAA compliance: | Inquire |
UNSPSC Code: | 39121011 |
BRANDS | TRIPP LITE |
---|---|
UNSPSC | 39121011 |
Part# | TRP-S3M100K |
MFG Part# | S3M100K |
UPC | 37332247902 |
Device Type | UPS - active Power Factor Correction (PFC) - external |
UPS Technology | On-line |
Surge Suppression | Yes |
Type | No battery expandable |
Efficiency | 93% at 100% Load, 98.5% Eco mode |
Circuit Protection | Circuit breaker |
Remote Management Protocol | HTTP, SNMP, SSH, Telnet |
