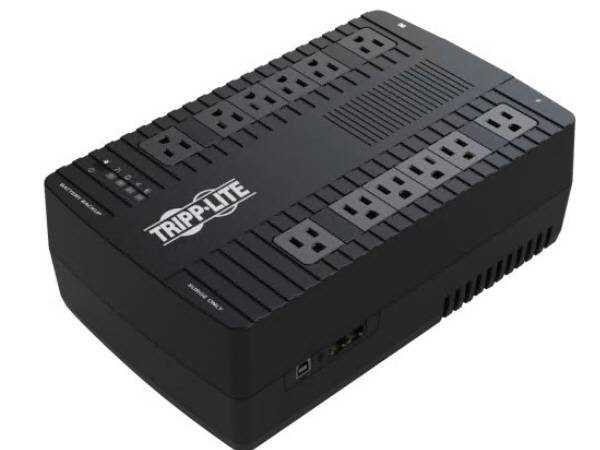

TRIPP LITE UPS 550VA 340W DESKTOP BACKUP AVR 120V 6770363
SKU
6770363
CA$323.05
OMNISMART550MX - UPS - Desktop - line-interactive - 120V AC - 340Watt - 550VA - 6A - (12) 5-15R - 2-year limited warranty - Protects equipment against blackouts, brownouts, transient surges and line noise. Keeps AC power running during blackouts to allow time for file saves and safe shutdown
Category: UPS
- Primary Information
Product Description: Tripp Lite 550VA 340W 120V Line-Interactive UPS - 12 NEMA 5-15R Outlets, Double-Boost AVR, USB, Desktop/Wall-Mount - UPS - 340 Watt - 550 VA Device Type: UPS - external Weight: 12.13 lbs Input Wiring: 1-phase Input Voltage: AC 120 V Output Voltage: AC 120 V ± 3% Power Capacity: 340 Watt / 550 VA Input Connectors: 1 x power NEMA 5-15P Output connectors: 6 x power NEMA 5-15R (UPS and surge) ¦ 6 x power NEMA 5-15R (surge) Run Time (Up To): 3.6 min at full load Networking: USB Dimensions (WxDxH): 7.5 in x 12 in x 4.1 in Environmental Standards: ENERGY STAR Manufacturer Warranty: 2-year warranty - General
Device Type: UPS - external - Power Device
UPS Technology: Line interactive Input Voltage: AC 120 V Input Voltage Range: AC 78 - 152 V Frequency Provided: 60 Hz Input Voltage Margin: + 8% / - 15% Input Wiring: 1-phase Frequency Required: 60 Hz Input Connectors: 1 x power NEMA 5-15P Power Output Connectors Details: 6 x power NEMA 5-15R (UPS and surge) ¦ 6 x power NEMA 5-15R (surge) Output Voltage: AC 120 V ± 3% - 60 Hz Power Capacity: 340 Watt / 550 VA Dataline Surge Protection: Network / ADSL - RJ-45 Output Waveform: Sinewave Surge Suppression: Yes Surge Energy Rating: 600 Joules Efficiency: 98.3% at 100% Load Power Factor (PF): 0.6 - Battery
Voltage Provided: 12 V Run Time (Up To): 3.6 min at full load ¦ 10 min at half load Recharge Time: 5 hours - Networking
Remote Management Interface: USB - Expansion / Connectivity
Interfaces: 1 x management (USB) - 4 pin USB Type B - Miscellaneous
Cables Included: Power cable - integrated - 7 ft Features: Wall mountable, Automatic Voltage Regulation (AVR), cold-start function Compliant Standards: FCC Part 15 A, CSA, EAC, NOM, RETIE, CAN/CSA C22.2 No. 107.3-14 (3rd Ed)+GI1, FCC CFR47 Part 15 B, ICES Class A, ICES-003:2017, UL 1778 5th edition R10.17 - Sustainability Information
ENERGY STAR: Yes - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 90% (non-condensing) - Dimensions & Weight
Width: 7.5 in Depth: 12 in Height: 4.1 in Weight: 12.13 lbs - Dimensions & Weight (Shipping)
Shipping Width: 6.3 in Shipping Depth: 15 in Shipping Height: 10.7 in Shipping Weight: 13.23 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121011
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121011 |
| Part# | TRP-OMNISMART550MX |
| MFG Part# | OMNISMART550MX |
| UPC | 37332256096 |
| Device Type | UPS - external |
| UPS Technology | Line interactive |
| Surge Suppression | Yes |
| Efficiency | 98.3% at 100% Load |
