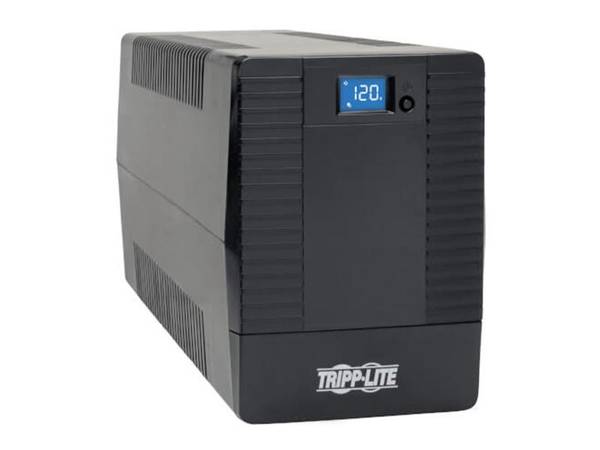

TRIPP LITE UPS 800VA 475W LINE-INTERACTIVE 6388008
SKU
6388008
CA$419.64
800VA 475W Line-Interactive UPS - 8 NEMA 5-15R Outlets, AVR, 120V, 50/60 Hz, USB, LCD, Tower
Category: UPS
- Primary Information
Product Description: Tripp Lite 800VA 475W UPS Tower 120V Battery Back Up Desktop AVR LCD USB - UPS - 475 Watt - 800 VA Device Type: UPS - external Input Wiring: 1-phase Input Voltage: AC 120 V Output Voltage: 120 V + 6% / - 12% Power Capacity: 475 Watt / 800 VA Input Connectors: 1 x power NEMA 5-15R Output connectors: 6 x power NEMA 5-15R (UPS and surge) ¦ 2 x power NEMA 5-15R (surge) Run Time (Up To): 3 min at full load Networking: USB Dimensions (WxDxH): 5.5 in x 15 in x 7.5 in - General
Device Type: UPS - external - Power Device
UPS Technology: Line interactive Input Voltage: AC 120 V Frequency Provided: 50/60 Hz Input Wiring: 1-phase Frequency Required: 50/60 Hz Input Connectors: 1 x power NEMA 5-15R Power Output Connectors Details: 6 x power NEMA 5-15R (UPS and surge) ¦ 2 x power NEMA 5-15R (surge) Output Voltage: 120 V + 6% / - 12% - 50/60 Hz Max Electric Current: 10 A Power Capacity: 475 Watt / 800 VA Dataline Surge Protection: Network/phone line - 1 input line / 1 output line Output Waveform: Sinewave Surge Suppression: Yes Surge Energy Rating: 316 Joules Circuit Protection: Circuit breaker Efficiency: 95% - Battery
Run Time (Up To): 3 min at full load ¦ 16.5 min at half load Recharge Time: 8 hours Transfer Time: 6 ms - Networking
Remote Management Interface: USB - Expansion / Connectivity
Interfaces: 1 x management (USB) - 4 pin USB Type B - Miscellaneous
Cables Included: Power cable - integrated - 5 ft ¦ USB cable - external Equipment Protection Value: 200000 US Dollars Features: LCD display, Automatic Voltage Regulation (AVR), overload protection, noise filtering, overvoltage protection, undervoltage protection, audible alarm, cold-start function Compliant Standards: FCC Part 15 A, EMI, CSA, NOM, UL 1778, CAN/CSA C22.2 No. 107.3:2014 3rd Edition, FCC Part 68, FCC Class A certified - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 95% (non-condensing) - Dimensions & Weight
Width: 5.5 in Depth: 15 in Height: 7.5 in - Dimensions & Weight (Shipping)
Shipping Weight: 20.3 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121011
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121011 |
| Part# | TRP-OMNIVS800LCD |
| MFG Part# | OMNIVS800LCD |
| UPC | 37332213969 |
| Device Type | UPS - external |
| UPS Technology | Line interactive |
| Surge Suppression | Yes |
| Efficiency | 95% |
| Circuit Protection | Circuit breaker |
