TRIPP LITE UPS SMART 1000VA 900W 120V LCD USB 2URM 6574159
SKU
6574159
CA$2,876.95

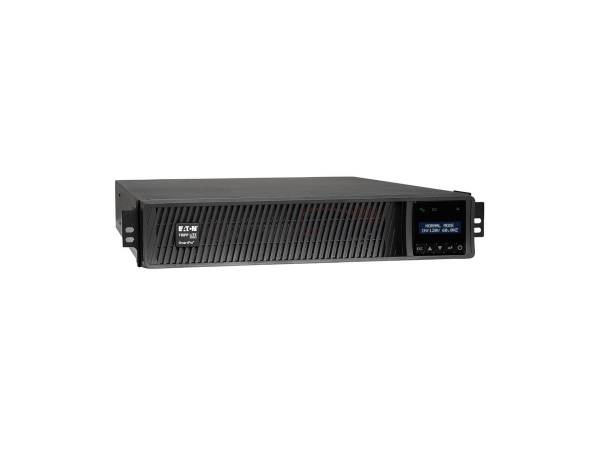

Eaton Tripp Lite series SmartPro 1000VA 1000W 120V Line-Interactive Sine Wave UPS - 8 Outlets, Extended Run, NIC, LCD, USB, DB9, 2U Rack/Tower
Category: UPS
- Primary Information
Product Description: Eaton Tripp Lite Series SmartPro 1000VA 1000W 120V Line-Interactive Sine Wave UPS - 8 Outlets, Extended Run, NIC, LCD, USB, DB9, 2U Rack/Tower Battery Backup - UPS - 1000 Watt - 1000 VA Device Type: UPS - rack-mountable Rack Size: 19" - 2U Weight: 44.53 lbs Input Wiring: 1-phase Input Voltage: AC 120 V Output Voltage: AC 110/115/120 V ± 0.5% Power Capacity: 1000 Watt / 1000 VA Input Connectors: 1 x power NEMA 5-15P Output connectors: 8 x power NEMA 5-15R Battery: Expandable Run Time (Up To): 6.3 min at full load Networking: USB, RS-232 Included Accessories: Network interface card (WEBCARDLXE) Dimensions (WxDxH): 17.3 in x 17.6 in x 3.4 in Manufacturer Warranty: 2-year warranty - General
Device Type: UPS - rack-mountable Height (Rack Units): 2U Rack Size: 19" - Power Device
UPS Technology: Line interactive Input Voltage: AC 120 V Frequency Provided: 50/60 Hz Input Wiring: 1-phase Input Connectors: 1 x power NEMA 5-15P Power Output Connectors Details: 8 x power NEMA 5-15R Output Voltage: AC 110/115/120 V ± 0.5% - 50/60 Hz Max Electric Current: 9.2 A Power Capacity: 1000 Watt / 1000 VA Output Waveform: Sinewave Surge Suppression: Yes Surge Energy Rating: 570 Joules Circuit Protection: Circuit breaker Efficiency: 95% at 100% AC mode Power Factor (PF): 0.9 - Battery
Type: Expandable Voltage Provided: 36 V Run Time (Up To): 6 min at full load ¦ 18 min at half load Recharge Time: 4.5 hours Transfer Time: 4 ms - Networking
Remote Management Interface: USB, RS-232 - Expansion / Connectivity
Interfaces: 1 x management (USB) - 4 pin USB Type B ¦ 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x EPO (emergency power off) - Miscellaneous
Included Accessories: Network interface card (WEBCARDLXE) Cables Included: USB cable - external ¦ Serial cable - external ¦ EPO cable - external ¦ Power cable 10 ft Rack Mounting Kit: Included Equipment Protection Value: 250000 US Dollars Features: 4 post rack mountable, LCD display, Automatic Voltage Regulation (AVR), controllable load banks, load management receptacles, cooling fan, cold-start function, audible alarm, overload protection, noise suppression, overvoltage correction, undervoltage correction, Human Interface Device (HID) support, 2 switchable sockets Compliant Standards: RoHS, UL 1778, CSA, NOM, FCC Part 15 A, CAN/CSA C22.2 No. 107.3-14 - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 95% (non-condensing) Sound Emission: 45 dBA - Dimensions & Weight
Width: 17.3 in Depth: 17.6 in Height: 3.4 in Weight: 44.53 lbs - Dimensions & Weight (Shipping)
Shipping Width: 19.6 in Shipping Depth: 23 in Shipping Height: 9.4 in Shipping Weight: 55.6 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121011
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121011 |
| Part# | TRP-SMART1000RMX2UN |
| MFG Part# | SMART1000RMX2UN |
| UPC | 37332256447 |
| Device Type | UPS - rack-mountable |
| UPS Technology | Line interactive |
| Surge Suppression | Yes |
| Type | Expandable |
| Efficiency | 95% at 100% AC mode |
| Circuit Protection | Circuit breaker |
