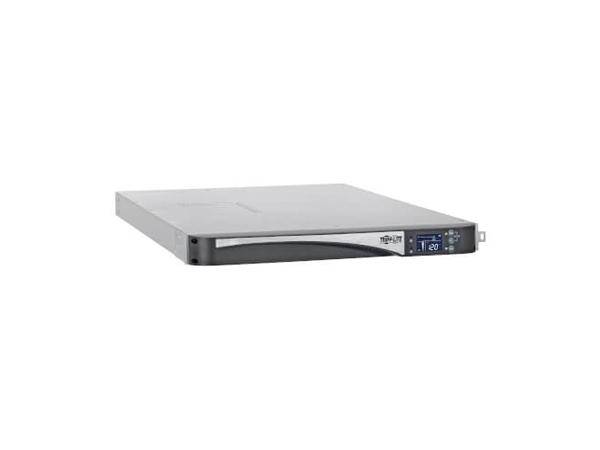

TRIPP LITE UPS SMART 1440VA 1100W AVR USB DB9 1URM 6934649

SKU
6934649
main product photo
CA$1,635.90
UPS Smart 1440VA 1100W 120V 4-Outlets Sine Wave AVR USB DB9 1URM





buy now pay later
Category: UPS
  • Primary Information
    Product Description: Tripp Lite UPS Smart 1440VA 1100W 120V 4-Outlets Sine Wave AVR USB DB9 1URM, AVR, 120V, 5 Outlets, Network Card Option, 1U Rack/Tower - UPS - 1100 Watt - 1440 VA
    Device Type: UPS - rack-mountable
    Rack Size: 19" - 1U
    Weight: 37.04 lbs
    Input Wiring: 1-phase
    Input Voltage: AC 120 V
    Output Voltage: AC 100/120/127 V
    Power Capacity: 1100 Watt / 1440 VA
    Input Connectors: 1 x power NEMA 5-15P
    Output connectors: 5 x power NEMA 5-15R
    Run Time (Up To): 2 min at full load
    Networking: RS-232, USB
    Dimensions (WxDxH): 21.8 in 1.7 in
    Environmental Standards: ENERGY STAR
    Manufacturer Warranty: 3-year warranty with product registration
    Designed For: Tripp Lite 1.4kW, 4, On-Site UPS Installation Service, Select 1-3, PDU Basic 120V 1.8kW, PDU Dual Source Hot Swap 100-127V 12, PDU Hot-Swap with Manual Bypass 120V 15, PDU Metered 120V 15, PDU Monitored 120V 15, UPS Web Management Accessory Card SNMP Remote Monitoring HTML5; SmartRack 4
  • General
    Device Type: UPS - rack-mountable
    Height (Rack Units): 1U
    Rack Size: 19"
  • Power Device
    UPS Technology: Line interactive
    Input Voltage: AC 120 V
    Frequency Provided: 50/60 Hz
    Input Wiring: 1-phase
    Frequency Required: 50/60 Hz
    Input Connectors: 1 x power NEMA 5-15P
    Power Output Connectors Details: 5 x power NEMA 5-15R
    Output Voltage: AC 100/120/127 V 50/60 Hz
    Max Electric Current: 15 A
    Power Capacity: 1100 Watt / 1440 VA
    Output Waveform: Sinewave
    Surge Suppression: Yes
    Surge Energy Rating: 540 Joules
    Circuit Protection: Circuit breaker
  • Battery
    Voltage Provided: DC 36 V
    Run Time (Up To): 2 min at full load ¦ 8 min at half load
    Recharge Time: 6 hours
  • Networking
    Remote Management Interface: RS-232, USB
  • Expansion / Connectivity
    Interfaces: 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (USB) ¦ 1 x EPO (emergency power off)
  • Miscellaneous
    Cables Included: USB cable ¦ RS232 cable ¦ EPO cable ¦ Power cable 6 ft
    Rack Mounting Kit: Included
    Equipment Protection Value: 250000 US Dollars
    Features: Audible alarm, Automatic Voltage Regulation (AVR), Auto Probe, hot-swappable batteries, overvoltage protection, undervoltage protection
    Compliant Standards: CSA, NOM, UL 1778, FCC Part 15 Class B
  • Software / System Requirements
    Software Included: TrippLite PowerAlert
  • Sustainability Information
    ENERGY STAR: Yes
  • Manufacturer Warranty
    Service & Support: Limited warranty - 3 years
  • Environmental Parameters
    Min Operating Temperature: 32 °F
    Max Operating Temperature: 104 °F
    Humidity Range Operating: 0 - 95% (non-condensing)
    Sound Emission: 40 dBA
  • Dimensions & Weight
    Width: 21.8 in
    Height: 1.7 in
    Weight: 37.04 lbs
  • Compatibility Information
    Designed For: Tripp Lite 1.4kW Single-Phase Monitored PDU with LX Platform Interface, 120V Outlets (16 5-15R), 10 ft. Cord w/5-15P Plug, 0U, TAA, 1.4kW Single-Phase Switched PDU with LX Platform Interface, 120V Outlets (16 5-15R), 10 ft. Cord w/5-15P, 0U, TAA, 1.4kW Single-Phase Switched PDU, LX Platform Interface, 120V Outlets (8 5-15R), NEMA 5-15P, 12 ft. Cord, 1U Rack, TAA, 4-Post Adjustable Rackmount Shelf Kit Universal Smartrack 1U, On-Site UPS Installation Service, Select 1-3 kVA UPS, Under 50 lb., USA, Normal Business Hours, On-Site UPS Installation Service, Select 1-3 kVA UPS, Under 50 lb., USA, Outside Business Hours, PDU Basic 120V 1.44kW 15A 5-15R 14 Outlet 5-15P Vertical 0URM, PDU Basic 120V 1.8kW 15A 5-15R 13 Outlet 5-15P Horizontal 1URM, PDU Dual Source Hot Swap 100-127V 12A 8 5-15R Horizontal 2URM, PDU Hot-Swap with Manual Bypass 120V 15A Single-Phase - 6 NEMA 5-15R Outlets, 2 5-15P Inputs, 1U Rack/Wall, PDU Metered 120V 15A 5-15R 13 Outlet 5-15P Horizontal 1URM, PDU Metered 120V 15A 5-15R 16 Outlet 5-15P Vertical 0URM, PDU Monitored 120V 15A 5-15R 8 Outlet 5-15P Horizontal 1URM, UPS Web Management Accessory Card SNMP Remote Monitoring HTML5 ¦ Tripp Lite SmartRack 4-Post Rack-Mount Shelf Kit Universal for Wallmount Racks 1U
  • Special Feature
    COO: CHINA
  • UNSPSC Code
    UNSPSC Code: 39121011
More Information
BRANDSTRIPP LITE
UNSPSC39121011
Part#TRP-SMC1500RT1U
MFG Part#SMC1500RT1U
UPC37332239358
Device TypeUPS - rack-mountable
UPS TechnologyLine interactive
Surge SuppressionYes
Circuit ProtectionCircuit breaker
