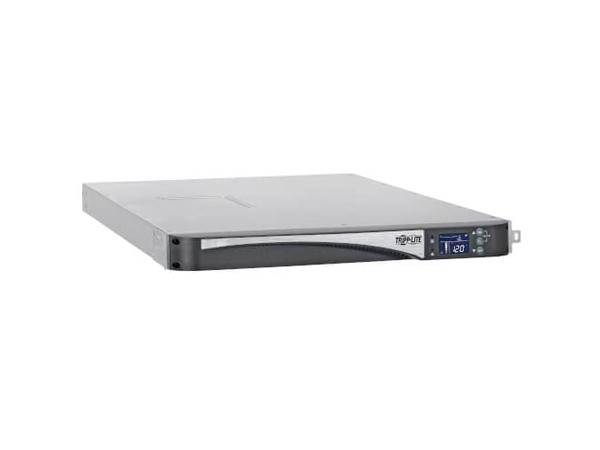

TRIPP LITE UPS SMART 1500VA 1100W 120V 5 OUTLET AVR USB DB9 CARD SLOT 1URM 6897567
SKU
6897567
CA$2,465.51
1500VA 1100W 120V Line-Interactive UPS - 5 NEMA 5-15R Outlets, Network Card Option, USB, DB9, 1U Rack/Towe
Category: UPS
- Primary Information
Product Description: Tripp Lite 1500VA 1100W 120V Line-Interactive UPS - 5 NEMA 5-15R Outlets, Network Card Option, USB, DB9, 1U Rack/Tower - UPS - 1100 Watt - 1440 VA Device Type: UPS - rack-mountable Rack Size: 19" - 1U Weight: 37.04 lbs Input Wiring: 1-phase Input Voltage: AC 120 V Output Voltage: AC 100/120/127 V Power Capacity: 1100 Watt / 1440 VA Input Connectors: 1 x power NEMA 5-15P Output connectors: 5 x power NEMA 5-15R Run Time (Up To): 2 min at full load Networking: RS-232, USB Dimensions (WxDxH): 21.8 in x 17.5 in x 1.7 in Environmental Standards: ENERGY STAR Manufacturer Warranty: 3-year warranty with product registration Designed For: Tripp Lite 4-Post, On-Site UPS Installation Service, Select 1-3, UPS Web Management Accessory Card SNMP Remote Monitoring HTML5; SmartRack 4-Post - General
Device Type: UPS - rack-mountable Height (Rack Units): 1U Rack Size: 19" - Power Device
UPS Technology: Line interactive Input Voltage: AC 120 V Frequency Provided: 50/60 Hz Input Wiring: 1-phase Frequency Required: 50/60 Hz Input Connectors: 1 x power NEMA 5-15P Power Output Connectors Details: 5 x power NEMA 5-15R Output Voltage: AC 100/120/127 V 50/60 Hz Max Electric Current: 15 A Power Capacity: 1100 Watt / 1440 VA Output Waveform: Sinewave Surge Suppression: Yes Surge Energy Rating: 540 Joules Circuit Protection: Circuit breaker - Battery
Voltage Provided: DC 36 V Run Time (Up To): 2 min at full load ¦ 8 min at half load Recharge Time: 6 hours - Networking
Remote Management Interface: RS-232, USB - Expansion / Connectivity
Interfaces: 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (USB) ¦ 1 x EPO (emergency power off) - Miscellaneous
Cables Included: USB cable ¦ RS232 cable ¦ EPO cable ¦ Power cable 6 ft Rack Mounting Kit: Included Equipment Protection Value: 250000 US Dollars Features: Audible alarm, Automatic Voltage Regulation (AVR), Auto Probe, hot-swappable batteries Compliant Standards: CSA, NOM, UL 1778, FCC Part 15 Class B - Software / System Requirements
Software Included: TrippLite PowerAlert - Sustainability Information
ENERGY STAR: Yes - Manufacturer Warranty
Service & Support: Limited warranty - 3 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 95% (non-condensing) Sound Emission: 40 dBA - Dimensions & Weight
Width: 21.8 in Depth: 17.5 in Height: 1.7 in Weight: 37.04 lbs - Compatibility Information
Designed For: Tripp Lite 4-Post Adjustable Rackmount Shelf Kit Universal Smartrack 1U, On-Site UPS Installation Service, Select 1-3 kVA UPS, Under 50 lb., USA, Normal Business Hours, On-Site UPS Installation Service, Select 1-3 kVA UPS, Under 50 lb., USA, Outside Business Hours, UPS Web Management Accessory Card SNMP Remote Monitoring HTML5 ¦ Tripp Lite SmartRack 4-Post Rack-Mount Shelf Kit Universal for Wallmount Racks 1U - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121011
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121011 |
| Part# | TRP-SMART1500RT1U |
| MFG Part# | SMART1500RT1U |
| UPC | 37332239341 |
| Device Type | UPS - rack-mountable |
| UPS Technology | Line interactive |
| Surge Suppression | Yes |
| Circuit Protection | Circuit breaker |
