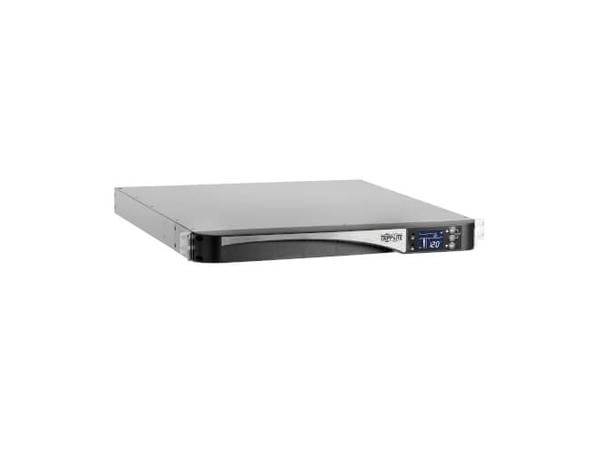

TRIPP LITE UPS SMART 750VA 600W 120V AVR USB DB9 1U 6934657
SKU
6934657
CA$1,322.91
Category: UPS
- Primary Information
Product Description: Tripp Lite UPS Smart 750VA 600W 120V 4-Outlets Card Slot AVR USB DB9 1URM - 4 NEMA 5-15R Outlets, Network Card Option, USB, DB9, 1U Rack/Tower - UPS - 600 Watt - 750 VA Device Type: UPS - rack-mountable Rack Size: 19" - 1U Weight: 29.76 lbs Input Wiring: 1-phase Input Voltage: AC 120 V Output Voltage: AC 100/120/127 V Power Capacity: 600 Watt / 750 VA Input Connectors: 1 x power NEMA 5-15P Output connectors: 4 x power NEMA 5-15R Run Time (Up To): 3 min at full load Networking: RS-232, USB Dimensions (WxDxH): 11.3 in 1.7 in Environmental Standards: ENERGY STAR Manufacturer Warranty: 3-year warranty with product registration Designed For: Tripp Lite 1.4kW, On-Site UPS Installation Service, Select 1-3, PDU Basic 120V 1.8kW, PDU Dual Source Hot Swap 100-127V 12, PDU Hot-Swap with Manual Bypass 120V 15, PDU Metered 120V 15, PDU Monitored 120V 15, UPS Web Management Accessory Card SNMP Remote Monitoring HTML5; SmartRack 4 - General
Device Type: UPS - rack-mountable Height (Rack Units): 1U Rack Size: 19" - Power Device
UPS Technology: Line interactive Input Voltage: AC 120 V Frequency Provided: 50/60 Hz Input Wiring: 1-phase Frequency Required: 50/60 Hz Input Connectors: 1 x power NEMA 5-15P Power Output Connectors Details: 4 x power NEMA 5-15R Output Voltage: AC 100/120/127 V 50/60 Hz Max Electric Current: 15 A Power Capacity: 600 Watt / 750 VA Output Waveform: Sinewave Surge Suppression: Yes Surge Energy Rating: 540 Joules Circuit Protection: Circuit breaker - Battery
Voltage Provided: DC 24 V Run Time (Up To): 3 min at full load ¦ 10 min at half load Recharge Time: 6 hours - Networking
Remote Management Interface: RS-232, USB - Expansion / Connectivity
Interfaces: 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (USB) ¦ 1 x EPO (emergency power off) - Miscellaneous
Cables Included: USB cable ¦ RS232 cable ¦ EPO cable ¦ Power cable 6 ft Rack Mounting Kit: Included Equipment Protection Value: 250000 US Dollars Features: Audible alarm, tower mountable, rack-mountable, Automatic Voltage Regulation (AVR), Auto Probe, hot-swappable batteries Compliant Standards: CSA, NOM, UL 1778, FCC Part 15 Class B - Software / System Requirements
Software Included: TrippLite PowerAlert - Sustainability Information
ENERGY STAR: Yes - Manufacturer Warranty
Service & Support: Limited warranty - 3 years with product registration - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 95% (non-condensing) Sound Emission: 40 dBA - Dimensions & Weight
Width: 11.3 in Height: 1.7 in Weight: 29.76 lbs - Compatibility Information
Designed For: Tripp Lite 1.4kW Single-Phase Monitored PDU with LX Platform Interface, 120V Outlets (16 5-15R), 10 ft. Cord w/5-15P Plug, 0U, TAA, 1.4kW Single-Phase Switched PDU with LX Platform Interface, 120V Outlets (16 5-15R), 10 ft. Cord w/5-15P, 0U, TAA, 1.4kW Single-Phase Switched PDU, LX Platform Interface, 120V Outlets (8 5-15R), NEMA 5-15P, 12 ft. Cord, 1U Rack, TAA, On-Site UPS Installation Service, Select 1-3 kVA UPS, Under 50 lb., USA, Normal Business Hours, On-Site UPS Installation Service, Select 1-3 kVA UPS, Under 50 lb., USA, Outside Business Hours, PDU Basic 120V 1.44kW 15A 5-15R 14 Outlet 5-15P Vertical 0URM, PDU Basic 120V 1.8kW 15A 5-15R 13 Outlet 5-15P Horizontal 1URM, PDU Dual Source Hot Swap 100-127V 12A 8 5-15R Horizontal 2URM, PDU Hot-Swap with Manual Bypass 120V 15A Single-Phase - 6 NEMA 5-15R Outlets, 2 5-15P Inputs, 1U Rack/Wall, PDU Metered 120V 15A 5-15R 13 Outlet 5-15P Horizontal 1URM, PDU Metered 120V 15A 5-15R 16 Outlet 5-15P Vertical 0URM, PDU Monitored 120V 15A 5-15R 8 Outlet 5-15P Horizontal 1URM, UPS Web Management Accessory Card SNMP Remote Monitoring HTML5 ¦ Tripp Lite SmartRack 4-Post Rack-Mount Shelf Kit Universal for Wallmount Racks 1U - Special Feature
COO: CHINA - UNSPSC Code
UNSPSC Code: 39121011
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121011 |
| Part# | TRP-SMART750RT1U |
| MFG Part# | SMART750RT1U |
| UPC | 37332239297 |
| Device Type | UPS - rack-mountable |
| UPS Technology | Line interactive |
| Surge Suppression | Yes |
| Circuit Protection | Circuit breaker |
