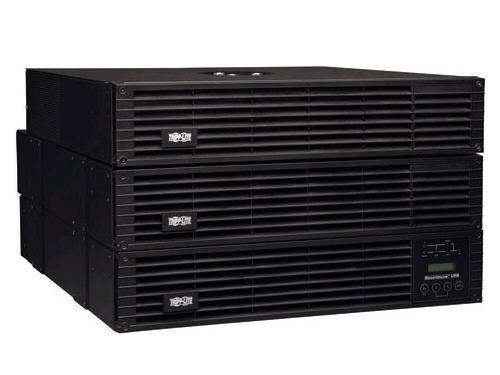

TRIPP LITE UPS SMART ONLINE H/W 6KVA208-240V 4780894
SKU
4780894
CA$10,693.55
SmartOnline 208/240 & 120V 6kVA 5.4kW Double-Conversion UPS, 6U Rack/Tower, Extended Run, Network Card Options, USB, DB9 Serial, Bypass Switch, Hardwire
Category: UPS
- Primary Information
Product Description: Tripp Lite UPS Smart Online 6000VA 5400W Rackmount 6kVA PDU 208/240V USB DB9 Manual Bypass Hot Swap 6URM - UPS - 5.4 kW - 6000 VA Device Type: UPS - external Rack Size: 19" - 4U Weight: 116.4 lbs Input Voltage: AC 208/240 V Output Voltage: AC 120/208/240 V ± 2% Power Capacity: 5.4 kW / 6000 VA Input Connectors: Hardwire Output connectors: 8 x power NEMA 5-15/20 ¦ 4 x power NEMA 5-15 ¦ 1 x power NEMA L6-30 Run Time (Up To): 2 min at full load Networking: RS-232 Remote Management Protocol: SNMP, HTTP System Requirements: Apple MacOS, Microsoft Windows Dimensions (WxDxH): 17.5 in x 20.7 in x 6.9 in - General
Device Type: UPS - external Height (Rack Units): 4U Rack Size: 19" - Power Device
UPS Technology: On-line Input Voltage: AC 208/240 V Frequency Provided: 50/60 Hz Input Connectors: Hardwire Power Output Connectors Details: 8 x power NEMA 5-15/20 ¦ 4 x power NEMA 5-15 ¦ 1 x power NEMA L6-30 Output Voltage: AC 120/208/240 V ± 2% - 50/60 Hz Power Capacity: 5.4 kW / 6000 VA Output Waveform: Sinewave Surge Suppression: Yes Circuit Protection: Circuit breaker - Battery
Voltage Provided: 192 V Run Time (Up To): 2 min at full load Recharge Time: 6 hours - Networking
Remote Management Interface: RS-232 Remote Management Protocol: SNMP, HTTP - Expansion / Connectivity
Interfaces: 1 x management (USB) ¦ 1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x EPO (emergency power off) - Miscellaneous
Cables Included: USB cable ¦ Serial cable Features: Hot-swappable, on/off switch, audible alarm, emergency power off, LCD display, LED display, LED indicators, noise filtering, overvoltage protection, built-in bypass switch, undervoltage protection, cold-start function, cooling fan Compliant Standards: FCC Class A certified, CSA, UL 1778, FCC Part 15, EN 61000-4-5, RoHS - Software / System Requirements
Software Included: TrippLite PowerAlert OS Required: Apple MacOS, Microsoft Windows - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 95% Sound Emission: 60 dBA - Dimensions & Weight
Width: 17.5 in Depth: 20.7 in Height: 6.9 in Weight: 116.4 lbs - Special Feature
COO: CHINA - UNSPSC Code
UNSPSC Code: 39121011
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121011 |
| Part# | TRP-SU6000RT4UTFHW |
| MFG Part# | SU6000RT4UTFHW |
| UPC | 37332157225 |
| Device Type | UPS - external |
| UPS Technology | On-line |
| Surge Suppression | Yes |
| Circuit Protection | Circuit breaker |
| Remote Management Protocol | HTTP, SNMP |
