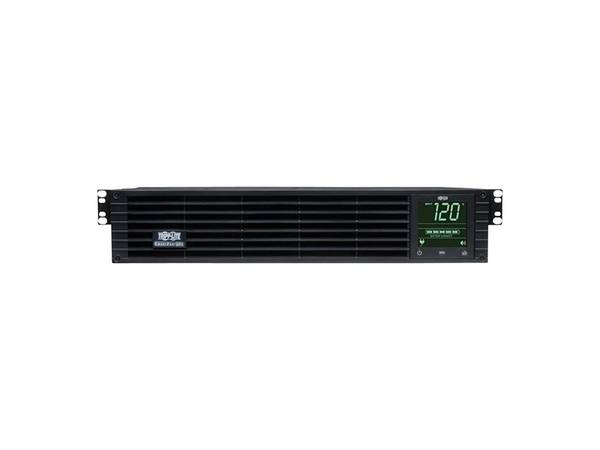

TRIPP LITE UPS SMARTPRO 120V 1000VA 800W SINE WAVE 6555323
SKU
6555323
CA$2,514.72
Only 1 left
SmartPro 120V 1000VA 800W Line-Interactive Sine Wave UPS, 2U, WEBCARDLX, LCD, USB, DB9, 6 Outlets
Category: UPS
- Primary Information
Product Description: Tripp Lite UPS Smart 1000VA 800W LCD USB DB9 with Pre-installed WEBCARLX - UPS - 800 Watt - 1000 VA Device Type: UPS - external Rack Size: 19" - 2U Weight: 35.41 lbs Input Wiring: 1-phase Input Voltage: AC 120 V Output Voltage: AC 120 V ± 5% Power Capacity: 800 Watt / 1000 VA Input Connectors: 1 x power NEMA 5-15 Output connectors: 6 x power NEMA 5-15 Run Time (Up To): 5.3 min at full load Networking: Ethernet, RS-232, USB Remote Management Protocol: SNMP Dimensions (WxDxH): 17.4 in x 12.5 in x 3.5 in Manufacturer Warranty: 3-year warranty with product registration - General
Device Type: UPS - external Height (Rack Units): 2U Rack Size: 19" - Power Device
UPS Technology: Line interactive Input Voltage: AC 120 V Input Voltage Range: AC 83 - 147 V Frequency Provided: 60 Hz Input Wiring: 1-phase Frequency Required: 60 Hz Input Connectors: 1 x power NEMA 5-15 Power Output Connectors Details: 6 x power NEMA 5-15 Output Voltage: AC 120 V ± 5% - 60 Hz Max Electric Current: 9.2 A Power Capacity: 800 Watt / 1000 VA Output Waveform: Sinewave Surge Suppression: Yes Surge Energy Rating: 570 Joules Circuit Protection: Circuit breaker Efficiency: 95%+ Power Factor (PF): 0.8 - Battery
Voltage Provided: 24 V Run Time (Up To): 5.3 min at full load ¦ 15 min at half load Recharge Time: 4 hours - Networking
Remote Management Interface: Ethernet, RS-232, USB Remote Management Protocol: SNMP - Expansion / Connectivity
Interfaces: 1 x management (Ethernet) - RJ-45 ¦ 1 x management (USB) ¦ 1 x management (RS-232) ¦ 1 x EPO (emergency power off) Expansion Slots: 1 (total) / 0 (free) x expansion slot - Miscellaneous
Cables Included: Power cable 10 ft ¦ USB cable - external ¦ Serial cable - external ¦ EPO cable - external Rack Mounting Kit: Included Equipment Protection Value: 250000 US Dollars Features: Audible alarm, LCD display, Automatic Voltage Regulation (AVR), noise filtering, overvoltage protection, undervoltage protection, cold-start function, cooling fan, hot-swappable batteries Compliant Standards: FCC Class B certified, CSA, NOM, UL 1778 - Software / System Requirements
Software Included: TrippLite PowerAlert - Manufacturer Warranty
Service & Support: Limited warranty - 3 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 95% (non-condensing) - Dimensions & Weight
Width: 17.4 in Depth: 12.5 in Height: 3.5 in Weight: 35.41 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121011
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121011 |
| Part# | TRP-SMART1000RM2UN |
| MFG Part# | SMART1000RM2UN |
| UPC | 37332189431 |
| Device Type | UPS - external |
| UPS Technology | Line interactive |
| Surge Suppression | Yes |
| Efficiency | 95%+ |
| Circuit Protection | Circuit breaker |
| Remote Management Protocol | SNMP |
