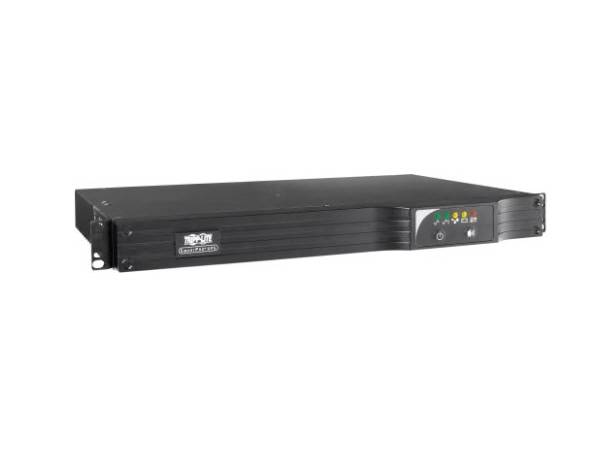

TRIPP LITE UPS SMARTPRO 120V 500VA 300W 6555324
SKU
6555324
CA$1,766.14
SMART500RT1UN - UPS - 1U - line-interactive - 120V - 300Watt - 500VA - 15A - 5-15R - 2-year warranty, 3 year with registration - Protects equipment against blackouts, brownouts, overvoltages, surges and line noise. Keeps AC power running during blackouts to allow time for file saves and safe shutdown
Category: UPS
- Primary Information
Product Description: Tripp Lite SmartPro SmartPro 120V 500VA 300W Line-Interactive UPS, 1U, WEBCARDLX, USB, DB9, 6 Outlets - UPS - 300 Watt - 500 VA Device Type: UPS - rack-mountable Rack Size: 19" - 1U Weight: 15.83 lbs Input Wiring: 1-phase Input Voltage: AC 120 V Output Voltage: AC 120 V Power Capacity: 300 Watt / 500 VA Input Connectors: 1 x power NEMA 5-15P Output connectors: 6 x power NEMA 5-15R Run Time (Up To): 3 min at full load Networking: RS-232, USB Remote Management Protocol: SNMP Included Accessories: Network interface card (WEBCARDLX) Dimensions (WxDxH): 17.3 in x 11.3 in x 1.7 in Manufacturer Warranty: 3-year warranty with product registration - General
Device Type: UPS - rack-mountable Height (Rack Units): 1U Rack Size: 19" - Power Device
UPS Technology: Line interactive Input Voltage: AC 120 V Frequency Provided: 60 Hz Input Wiring: 1-phase Frequency Required: 50/60 Hz Input Connectors: 1 x power NEMA 5-15P Power Output Connectors Details: 6 x power NEMA 5-15R Output Voltage: AC 120 V 60 Hz Max Electric Current: 15 A Power Capacity: 300 Watt / 500 VA Output Waveform: Sinewave Surge Suppression: Yes Surge Response Time: 4 ms Surge Energy Rating: 567 Joules Circuit Protection: Circuit breaker Efficiency: 96% - Battery
Voltage Provided: DC 12 V Run Time (Up To): 3 min at full load ¦ 14 min at half load Features: Hot-swappable - Networking
Remote Management Interface: RS-232, USB Remote Management Protocol: SNMP - Expansion / Connectivity
Interfaces: 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (USB) ¦ 1 x EPO (emergency power off) Expansion Slots: 1 (total) / 0 (free) x expansion slot - Miscellaneous
Included Accessories: Network interface card (WEBCARDLX) Cables Included: USB cable ¦ RS232 cable ¦ EPO cable ¦ Power cable 10 ft ¦ Micro-USB to USB cable Rack Mounting Kit: Included Equipment Protection Value: 250000 US Dollars Features: Automatic Voltage Regulation (AVR) Compliant Standards: CAN/CSA C22.2 No. 107.3-14, FCC Class A certified, ICES Class A, ICES-003:2016, UL 1778 5th edition R10.17, NOM - Manufacturer Warranty
Service & Support: Limited warranty - 3 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 95% (non-condensing) Sound Emission: 45 dBA - Dimensions & Weight
Width: 17.3 in Depth: 11.3 in Height: 1.7 in Weight: 15.83 lbs - Dimensions & Weight (Shipping)
Shipping Width: 15.4 in Shipping Depth: 22.1 in Shipping Height: 4.8 in Shipping Weight: 20.9 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121011
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121011 |
| Part# | TRP-SMART500RT1UN |
| MFG Part# | SMART500RT1UN |
| UPC | 37332224170 |
| Device Type | UPS - rack-mountable |
| UPS Technology | Line interactive |
| Surge Suppression | Yes |
| Efficiency | 96% |
| Circuit Protection | Circuit breaker |
| Remote Management Protocol | SNMP |
