TRIPP PDU ATS/METERED 8 C13 2 C19 NETWORK CARD 6802979
SKU
6802979
- Primary Information

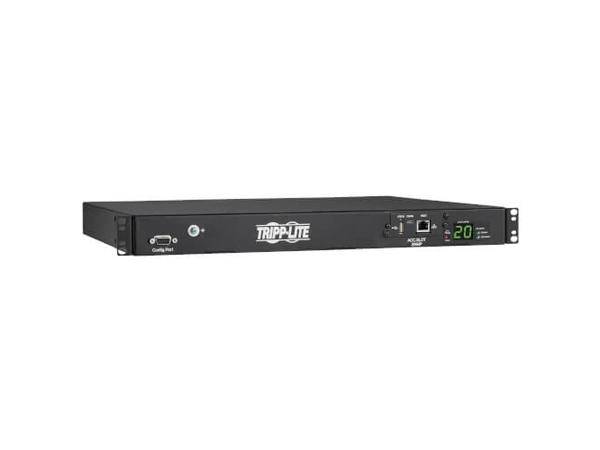

Product Description: Eaton Tripp Lite Series PDU ATS/Monitored 3.8kW 200-240V Single-Phase - 8 C13 and 2 C19 Outlets, Dual C20 Inlets, 12 ft. Cords, Network Card, 1U, TAA - power distribution unit - 3.84 kW - TAA Compliant Device Type: Power distribution unit - rack-mountable Cord Length: 12 ft Rack Size: 19" - 1U Weight: 10.3 lbs Input Wiring: 1-phase Input Voltage: AC 208/230/240 V Output Voltage: AC 200/208/220/230/240 V Power Capacity: 3.84 kW Input Connectors: 2 x power IEC 60320 C19 Output connectors: 8 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19 Included Accessories: 10 plug-lock insert sleeves TAA Compliant: TAA Compliant Dimensions (WxDxH): 17.3 in x 14.8 in x 1.7 in Manufacturer Warranty: 2-year warranty - General
Device Type: Power distribution unit - rack-mountable Height (Rack Units): 1U Rack Size: 19" Cord Length: 12 ft - Power Device
Input Voltage: AC 208/230/240 V Frequency Provided: 50/60 Hz Input Wiring: 1-phase Input Connectors: 2 x power IEC 60320 C19 Power Output Connectors Details: 8 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19 Output Voltage: AC 200/208/220/230/240 V 50/60 Hz Max Electric Current: 20 A Power Capacity: 3.84 kW - Miscellaneous
Included Accessories: 10 plug-lock insert sleeves Cables Included: 2 x power cable (C19-C20) - detachable - 12 ft ¦ Console cable Rack Mounting Kit: Included Features: Load monitoring, overload protection, LED display, current meter, Automatic Transfer Switch (ATS), built-in LX platform interface Compliant Standards: EAC, EMC, NOM, RETIE, RoHS, UL 62368-1 TAA Compliant: Yes - Software / System Requirements
Software Included: TrippLite PowerAlert - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 5 - 95% (non-condensing) - Dimensions & Weight
Width: 17.3 in Depth: 14.8 in Height: 1.7 in Weight: 10.3 lbs - Dimensions & Weight (Shipping)
Shipping Width: 23.4 in Shipping Depth: 20.8 in Shipping Height: 5.4 in Shipping Weight: 17 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121017
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121017 |
| Part# | TRP-PDUMNH20HVAT1 |
| MFG Part# | PDUMNH20HVAT1 |
| UPC | 37332261410 |
| Device Type | Power distribution unit - rack-mountable |
