TRIPPLITE CAT5E KVM OVER IP SWITCH 16-PORT 1U TAA 8045877
SKU
8045877
CA$17,457.30

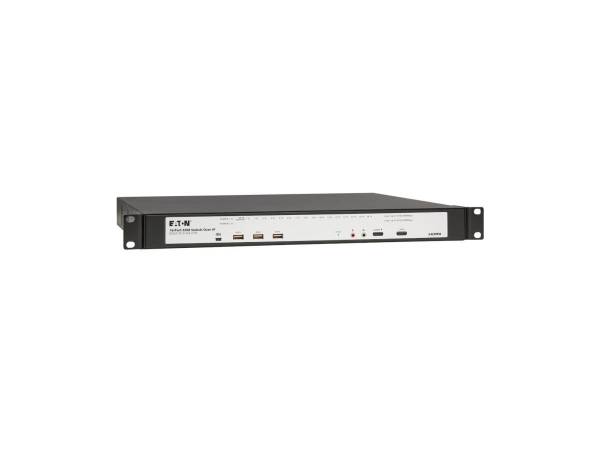

16-Port Cat5e KVM over IP Switch - Virtual Media, 4 Users (Remote + 1 Local Port), HDMI Output, 1U Rack-Mount, TAA
Category: KVM Switch & AV Splitters
- Primary Information
Product Description: Eaton NetDirector - KVM switch - 16 ports - rack-mountable - TAA Compliant Device Type: KVM switch - 16 ports - CAT5/5e - cascadable Enclosure Type: Rack-mountable 1U Subtype: KVM Ports: 16 x KVM port(s) KVM Users Qty: 1 local user, 4 IP users Remote Management Protocol: IPv4, IPv6, DHCP Features: Metal housing, Panel Array Mode, Pushbutton/Hotkey switching, Auto Scan Mode, reset button, On-Screen Display, 24-bit Deep Color support, DHCP server Power: AC 100-240 V (50/60 Hz) 1 A Power Redundancy: Yes Dimensions (WxDxH): 17 in x 16.3 in x 1.7 in Weight: 7.76 lbs Color: Black TAA Compliant: Yes Manufacturer Warranty: 3-year warranty - General
Device Type: KVM switch - 16 ports - cascadable Enclosure Type: Rack-mountable 1U Subtype: KVM Ports: 16 x KVM port(s) KVM Local Users Qty: 1 local user KVM IP Users Qty: 4 IP users Server Connection Via Twisted Pair: CAT5/5e Local User Connection Via Twisted Pair: CAT5/5e Keyboard / Mouse Interface: PS/2, USB, serial Max Cascading Depth: 128 Remote Management Protocol: IPv4, IPv6, DHCP Encryption Algorithm: FIPS 140-2 Level 1, 1024-bit RSA, DES-56, 256-bit AES, 128-bit SSL Authentication Method: RADIUS, LDAP, LDAPS, Active Directory Max Resolution: 1920 x 1200 @ 60 Hz Features: Metal housing, Panel Array Mode, Pushbutton/Hotkey switching, Auto Scan Mode, reset button, On-Screen Display, 24-bit Deep Color support, DHCP server Status Indicators: Power, online, select, link/activity/speed - Expansion / Connectivity
Interfaces: 16 x KVM RJ-45 ¦ 3 x USB 2.0 Type A console ¦ 1 x mini-USB Type B LUC ¦ 1 x microphone mini-jack console ¦ 1 x headphones mini-jack console ¦ 2 x LAN RJ-45 ¦ 1 x serial RJ-45 ¦ 1 x modem RJ-45 ¦ 1 x VGA output HD-15 console ¦ 1 x HDMI output console ¦ 1 x keyboard (USB) Type A console ¦ 1 x mouse (USB) Type A console - Power
Power Device: Internal power supply Installed Qty: 2 Power Redundancy: Yes Power Redundancy Scheme: 1+1 Voltage Required: AC 100-240 V (50/60 Hz) Electric Current Required: 1 A - Miscellaneous
Color: Black Included Accessories: Foot pad set Cables Included: 1 x ground cable Rack Mounting Kit: Included Compliant Standards: CAN/CSA-C22.2 No. 62368-1, EN 55032, EN 55035, cTUVus, NOM, UL 62368-1, FCC, FCC Part 15 A, FCC Part 15 B, FIPS 140-2, REACH, RoHS, UKCA TAA Compliant: Yes - Software / System Requirements
Software Included: NetDirector-AXS Management Software - Dimensions & Weight
Width: 17 in Depth: 16.3 in Height: 1.7 in Weight: 7.76 lbs - Dimensions & Weight (Shipping)
Shipping Width: 19.9 in Shipping Depth: 22.6 in Shipping Height: 5.1 in Shipping Weight: 16.82 lbs - Manufacturer Warranty
Service & Support: Limited warranty - 3 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 80% RH (non-condensing) Min Storage Temperature: -4 °F Max Storage Temperature: 140 °F - Special Feature
COO: TAIWAN - UNSPSC Code
UNSPSC Code: 43211604
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 43211604 |
| Part# | TRP-B064-016-04-IPH |
| MFG Part# | B064-016-04-IPH |
| UPC | 37332285980 |
| Max Resolution | 1920 x 1200 @ 60 Hz |
| Device Type | KVM switch - 16 ports - cascadable |
| Color | Black |
| Enclosure Type | Rack-mountable 1U |
| Remote Management Protocol | DHCP, IPv4, IPv6 |
| Encryption Algorithm | 1024-bit RSA, 128-bit SSL, 256-bit AES, DES-56, FIPS 140-2 Level 1 |
