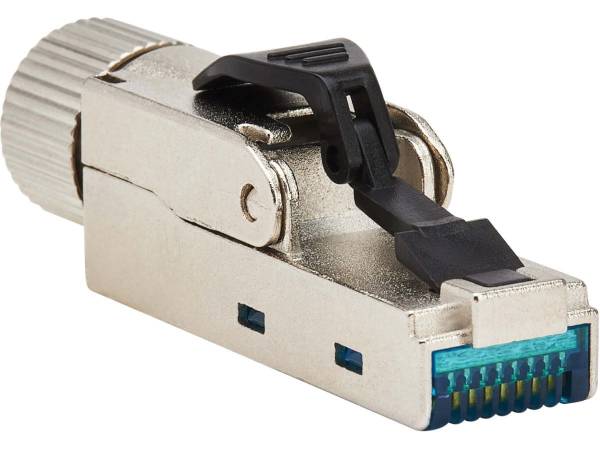

Product Description: | Eaton Tripp Lite Series Cat6a Class EA STP Field-Termination Plug, 568A/568B, TAA - network connector - TAA Compliant - silver, black |
Type: | Network connector - CAT 6a - IEEE 802.3bt |
Technology: | STP |
Wiring Scheme: | T568A/B |
Features: | Gold plated contacts, Gigabit Ethernet support, Power over Ethernet (PoE), PoE++ ready, metal housing, EMI/RFI protection, 100 Watt maximum input power, field assembly, toolless, zinc die-cast housing, IDC termination style |
Connector: | 110 IDC |
Connector (Second End): | RJ-45 - male |
Color: | Silver, black |
TAA Compliant: | Yes |
Manufacturer Warranty: | Limited lifetime warranty |
Fiber Connector Size: | 0.24 in - 0.35 in |
Network Cable Type: | Network connector - CAT 6a - IEEE 802.3bt |
Technology: | STP |
Wiring Scheme: | T568A/B |
American Wire Gauge (AWG): | 22/27 |
Plated Connector: | Nickel |
Features: | Gold plated contacts, Gigabit Ethernet support, Power over Ethernet (PoE), PoE++ ready, metal housing, EMI/RFI protection, 100 Watt maximum input power, field assembly, toolless, zinc die-cast housing, IDC termination style |
Width: | 0.5 in |
Depth: | 1.9 in |
Height: | 0.7 in |
Color: | Silver, black |
Connector: | 110 IDC |
Connector (Second End): | RJ-45 - male |
Compliant Standards: | IP20, CAN/CSA C22.2 No. 182.4-M90, UL 1863, UL 2043, UKCA |
TAA Compliant: | Yes |
Service & Support: | Limited lifetime warranty |
Min Operating Temperature: | 14 °F |
Max Operating Temperature: | 140 °F |
COO: | Inquire |
TAA compliance: | Inquire |
UNSPSC Code: | 39121421 |
BRANDS | TRIPP LITE |
---|---|
UNSPSC | 39121421 |
Part# | TRP-N232-SHC6A-1 |
MFG Part# | N232-SHC6A-1 |
Type | Network connector - CAT 6a - IEEE 802.3bt |
Color | black, Silver |
