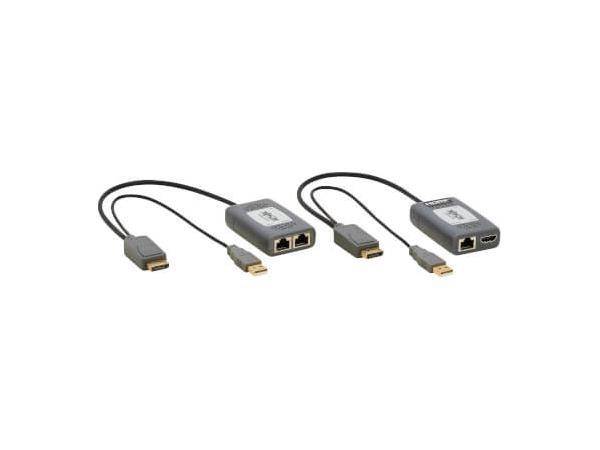

TRIPPLITE DISPLAYPORT OVER CAT6 EXTENDER KIT PIGTAIL TRANSMITTER/RECEIVER 1-PORT 4K60HZ 7285096
SKU
7285096
CA$603.10
DISPLAYPORT OVER CAT6 EXTENDER KIT PIGTAIL TRANSMITTER/RECEIVER 1-PORT 4K60HZ
Category: KVM Switch & AV Splitters
- Primary Information
Product Description: Tripp Lite 1-Port DisplayPort over Cat6 Extender Kit, Pigtail Transmitter/Receiver, 4K 60 Hz, HDR, 4:4:4, 230 ft. (70.1 m), TAA - video/audio extender - DisplayPort, HDMI - TAA Compliant Device Type: Video/audio extender Ports Qty: 6 Form Factor: External Data Link Protocol: DisplayPort, HDMI Transmission Medium: CAT 6 Max Transfer Distance: 230 ft TAA Compliant: Yes Manufacturer Warranty: 1-year warranty Designed For: P/N: B127U-110-PD, B127U-110-PH - General
Device Type: Video/audio extender Form Factor: External Color: Black - Networking
Ports Qty: 6 Connectivity Technology: Wired Data Link Protocol: DisplayPort, HDMI Max Resolution: 3840 x 2160 @ 60 Hz Max Transfer Distance: 230 ft Status Indicators: Power, data Features: 4:4:4 chroma subsampling support, 4:4:2 chroma subsampling support, 4:2:0 chroma subsampling support, DTS-HD support, Dolby TrueHD support, 7.1 channel audio support, HDR support, daisy-chaining support, 3D support, 36-bit Deep Color support, EDID mode, unidirectional broadcasting mode, LPCM 2.0 support, LPCM 5.1 support, LPCM 7.1 support, plastic housing, zero latency, cascadable Compliant Standards: HDCP 2.2, HDCP 1.4, HDCP 1.2 - Expansion / Connectivity
Interfaces: 1 x HDMI (local unit) - 19 pin HDMI Type A male ¦ 2 x DisplayPort (output) male ¦ 2 x network (output) - RJ-45 female ¦ 1 x network (input) - RJ-45 female ¦ 2 x USB (power only) (output) - Type A male ¦ 2 x micro-USB (power input) female - Miscellaneous
Cables Included: Video / audio cable - 1 ft Compliant Standards: Plug and Play, ICES, NOM, FCC Part 15 Class B, REACH, RoHS3, UKCA, WEEE TAA Compliant: Yes - Power
Power Device: External power adapter - Dimensions & Weight
Dimensions (WxDxH) / Weight Details: Transmitter: 1.9 in x 3 in x 0.7 in / 8.8 oz ¦ Receiver: 1.9 in x 3 in x 0.7 in / 8.8 oz - Dimensions & Weight (Shipping)
Shipping Width: 10.2 in Shipping Depth: 6.5 in Shipping Height: 2.2 in Shipping Weight: 19.68 oz - Manufacturer Warranty
Service & Support: Limited warranty - 1 year - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 85% RH - Compatibility Information
Designed For: P/N: B127U-110-PD, B127U-110-PH - Special Feature
COO: TAIWAN - UNSPSC Code
UNSPSC Code: 43211604
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 43211604 |
| Part# | TRP-B127U-111-PDPD |
| MFG Part# | B127U-111-PDPD |
| UPC | 37332281265 |
| Max Transfer Distance | 230 ft |
| Max Resolution | 3840 x 2160 @ 60 Hz |
| Device Type | Video/audio extender |
| Connectivity Technology | Wired |
| Form Factor | External |
| Data Link Protocol | DisplayPort, HDMI |
| Color | Black |
