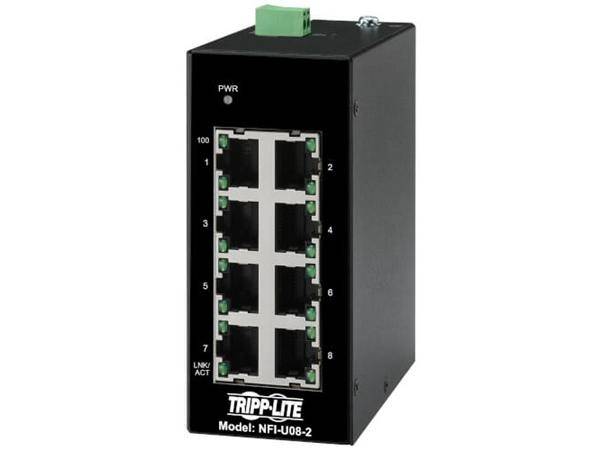

TRIPPLITE GBE SWITCH 8PORT DIN MOUNT 10/100 MBPS 6784079
SKU
6784079
- Primary Information
Product Description: Eaton Tripp Lite series Unmanaged Industrial Ethernet Switch 8-Port - 10/100 Mbps, Ruggedized, DIN Mount - switch - 8 ports - unmanaged - TAA Compliant Device Type: Switch - 8 ports - unmanaged Ports: 8 x 10/100 Performance: Switching capacity: 1.6 Gbps Features: Metal housing, MAC address learning, auto-uplink (auto MDI/MDI-X), flow control, auto-negotiation, rugged Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x Power: DC 12 - 48 V Dimensions (WxDxH): 2 in x 4.6 in x 3.9 in Weight: 15.52 oz Color: Black TAA Compliant: Yes Manufacturer Warranty: 3-year warranty - General
Device Type: Switch - 8 ports - unmanaged Enclosure Type: DIN rail mountable Ports: 8 x 10/100 Performance: Switching capacity: 1.6 Gbps Features: Metal housing, MAC address learning, auto-uplink (auto MDI/MDI-X), flow control, auto-negotiation, rugged Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x Status Indicators: Power, LAN, link/activity, transmit, receive - Expansion / Connectivity
Interfaces: 8 x 100Base-T RJ-45 - Power
Voltage Required: DC 12 - 48 V Power Consumption Operational: 3 Watt - Miscellaneous
Color: Black Included Accessories: DIN-rail clip Compliant Standards: FCC Part 15, RoHS, REACH, IEEE 802.3, IEEE 802.3u, Plug and Play, EN 55011, EN 55032, EN 61000-6-4, EN55024, IEC/EN 61000-6-2 TAA Compliant: Yes - Dimensions & Weight
Width: 2 in Depth: 4.6 in Height: 3.9 in Weight: 15.52 oz - Dimensions & Weight (Shipping)
Shipping Width: 9.2 in Shipping Depth: 7.2 in Shipping Height: 2.4 in Shipping Weight: 20.46 oz - Manufacturer Warranty
Service & Support: Limited warranty - 3 years - Environmental Parameters
Min Operating Temperature: -40 °F Max Operating Temperature: 167 °F Humidity Range Operating: 5 - 95% (non-condensing) Min Storage Temperature: -40 °F Max Storage Temperature: 185 °F - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222612
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 43222612 |
| Part# | TRP-NFI-U08-2 |
| MFG Part# | NFI-U08-2 |
| UPC | 37332264558 |
| Device Type | Switch - 8 ports - unmanaged |
| Color | Black |
| Enclosure Type | DIN rail mountable |
